ZHRT2-R3 Sofielec time relay
- Model
- ZHRT2-R3

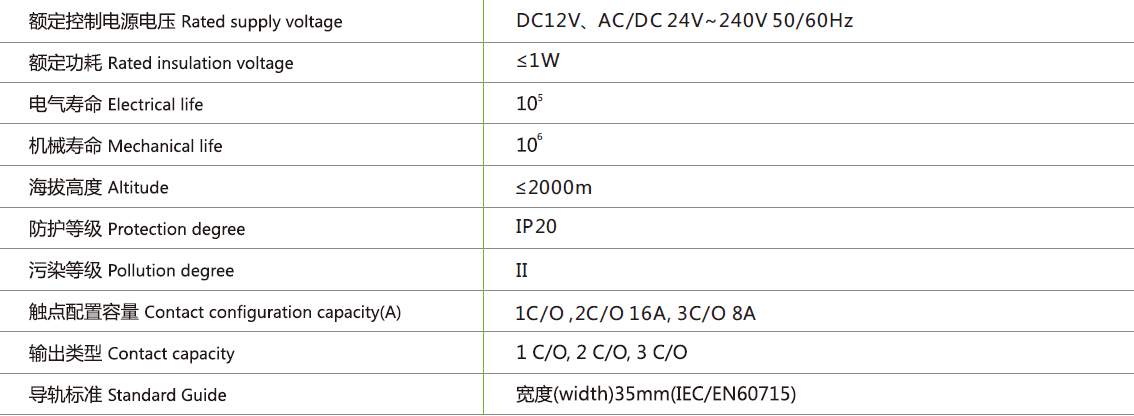

Item specifics
- Rated control supply voltage
- DC12V. AC/DC 24V ~240V 50/60Hz
- Rated power consumption
- ≤1W
- Altitude
- ≤2000m
- Contact configuration capacity(A)
- 1C/O 16A;2C/O 16A;3C/O 8A
- IP Class
- IP 20
- Contact capacity
- 1C/O,2C/O,3C/O
- Standard Guide
- width 35mm
Review
Description
Function
Applications
Used in air conditioning units, elevator machine room, pumps, fans and other motor control applications, as protection of over-voltage, under voltage, phase failure, phase sequence and phase unbalance. When the power supply is abnormal, turn off power supply to protect the equipment.
LED indicator shows working status.multi-set contact and multi rated voltage optional,maximum contact currentt 16A. DIN-rail mounting.

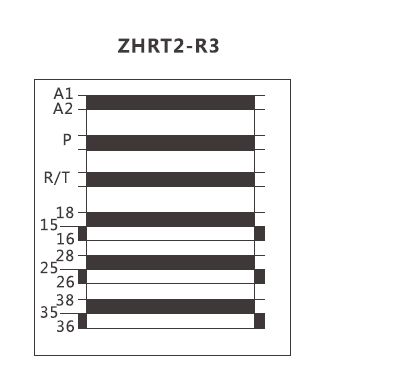

Function Diagram

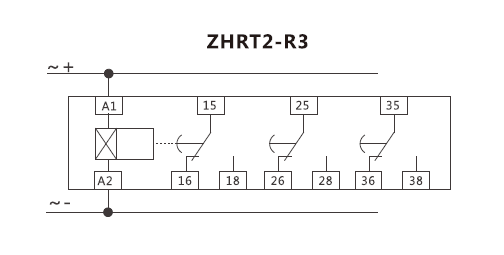

Wiring Diagram

Dimensions
