ATRP17G 3Phase Control Relay
ATRP17G 3Phase Control Relay
ATRP17G 3Phase Control Relay
Model
ATRP17G

Item specifics

Maximum Switching Voltage
250 V DC/250V AC
[us] Rated Supply Voltage
208.... 480 V AC 3 phases
Supply Voltage Limits
183...528V AC
Control Circuit Voltage Limits
12%,+10%Un
Power Consumption In Va
<=22VA400VAC50Hz
Voltage Detection Threshold
< 100 V for phase failure AC
Control Circuit Frequency
50...60 Hz +/- 10%
Output Contacts
1 C/O,2C/O
Nominal Output Current
8A
Delay At Power Up
<= 650 ms
Voltage Range
183...528 V
Response Time
<= 130 ms in the event ofa fault

Review

Description

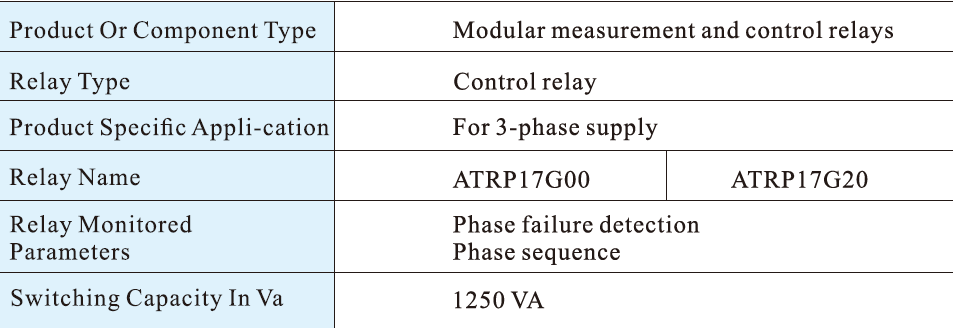

Main

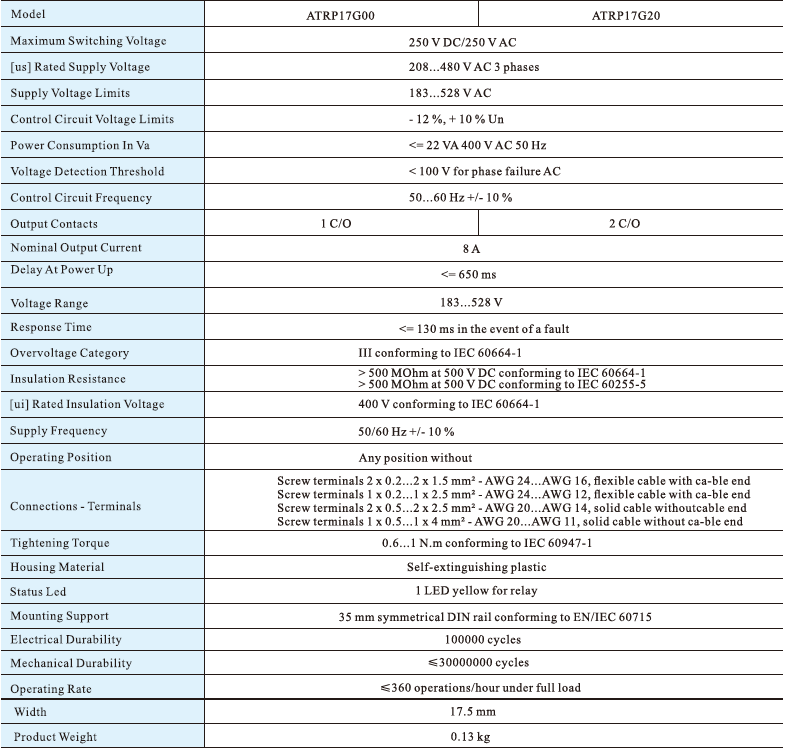

Complementary

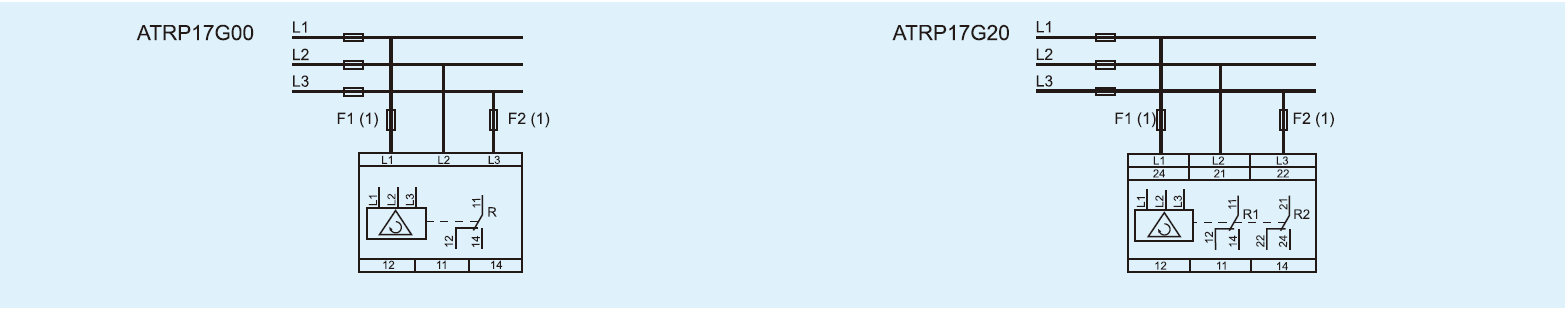

Connection Diagarams

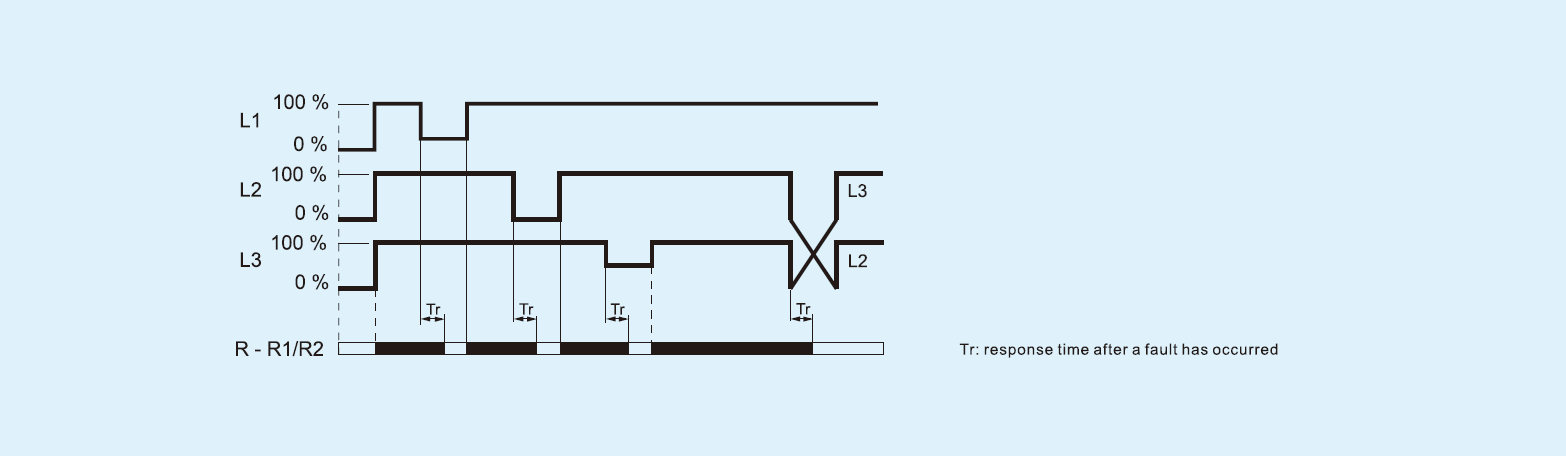

Functions Diagrams

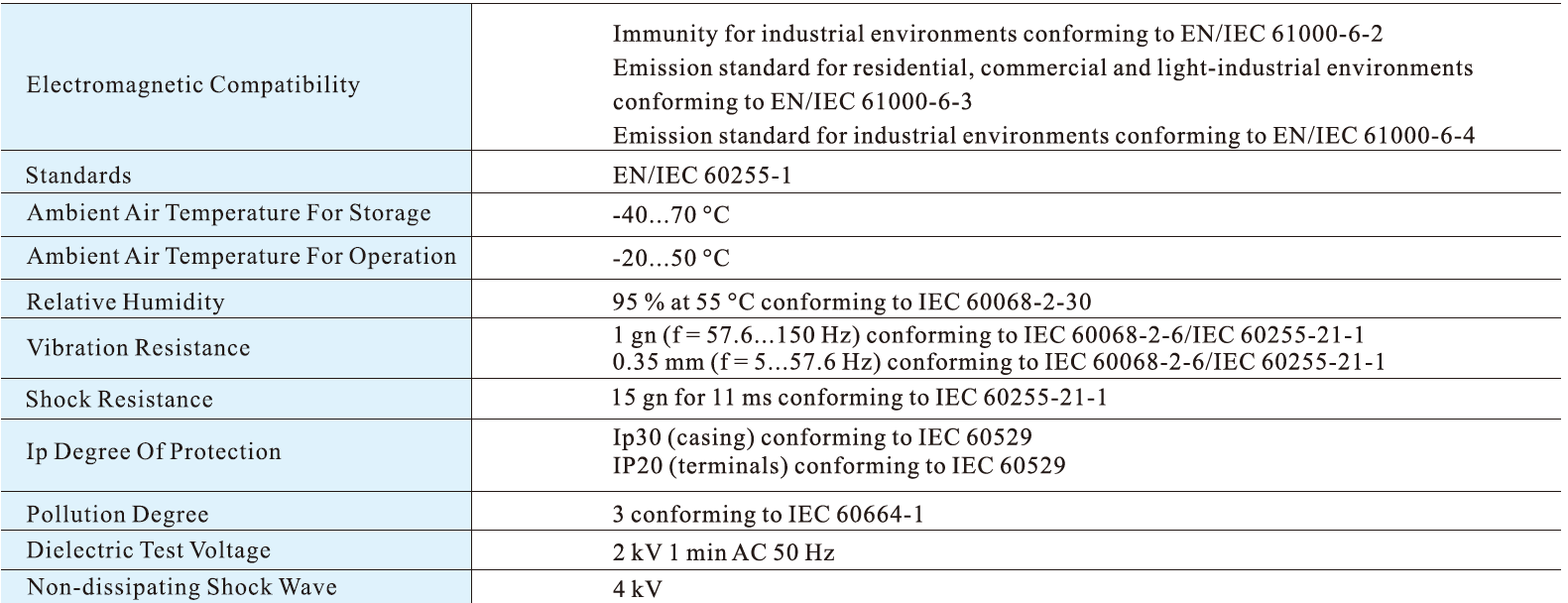

Environment

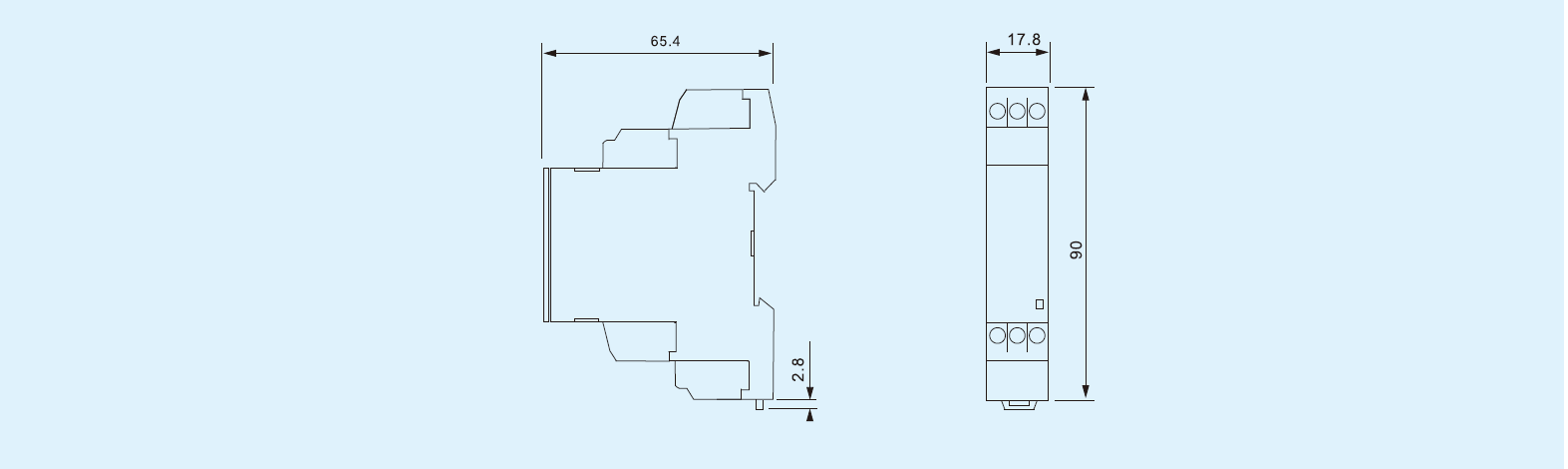

Dimension
