ZHRT2-A Time Relay

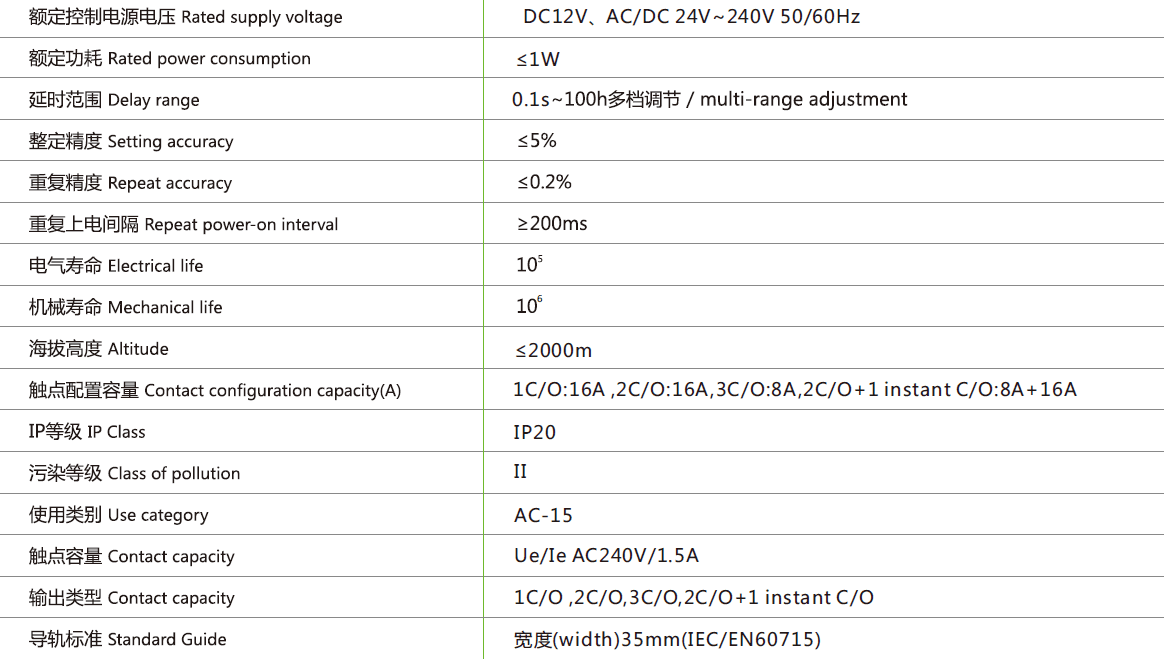

Item specifics
- Rated supply voltage
- DC12V AC/DC 24V~240V
- Rated power consumption
- 1W
- Delay range
- 0.1s~100h multi-range adjustment
- Setting accuracy
- ≤5%
- Repeat accuracy
- ≤0.2%
- Repeat power-on interval
- ≥200ms
- Altitude
- ≤2000m
- Contact configuration capacity(A)
- C/O:16A,2C/O:16A,3C/O:8A,2C/O+1 instantC/O:8A+16A
- Contact capacity
- Ue/Ie AC240V/1.5A
- Ѕtаndаrd Guіdе
- (width)35mm
Review
Description
Function
Applications
Used in control cabinets, cabinets and other electrical control circuit,according to the scheduled time automatically switch on or off the circuit.
Built-in microcontrollers, 0.1s ~100h wide delay range, repeat accuracy <0.2%. Knob setting, LED indicator shows working status. Variety of optionalrated voltage. DIN rail mounting.

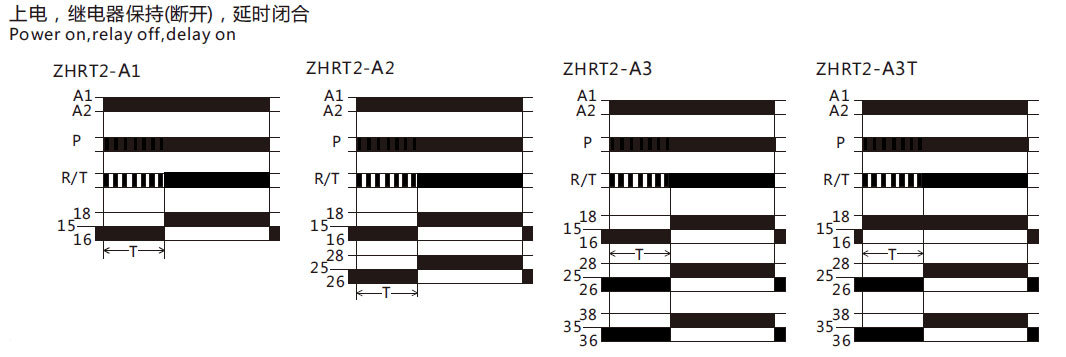

Function Diagram

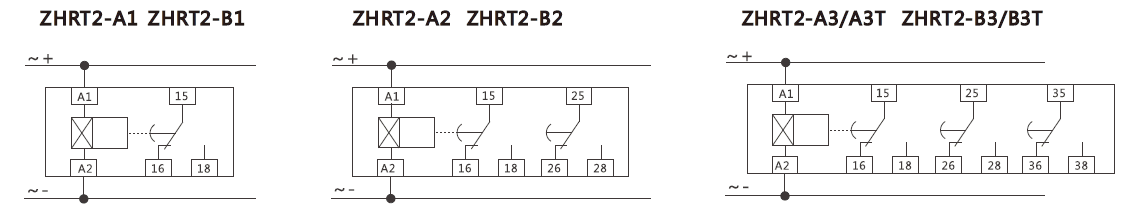

Wiring Diagram
Dimensions
