ZHRT1-SC Sofielec time relay
- Model
- ZHRT1-SC

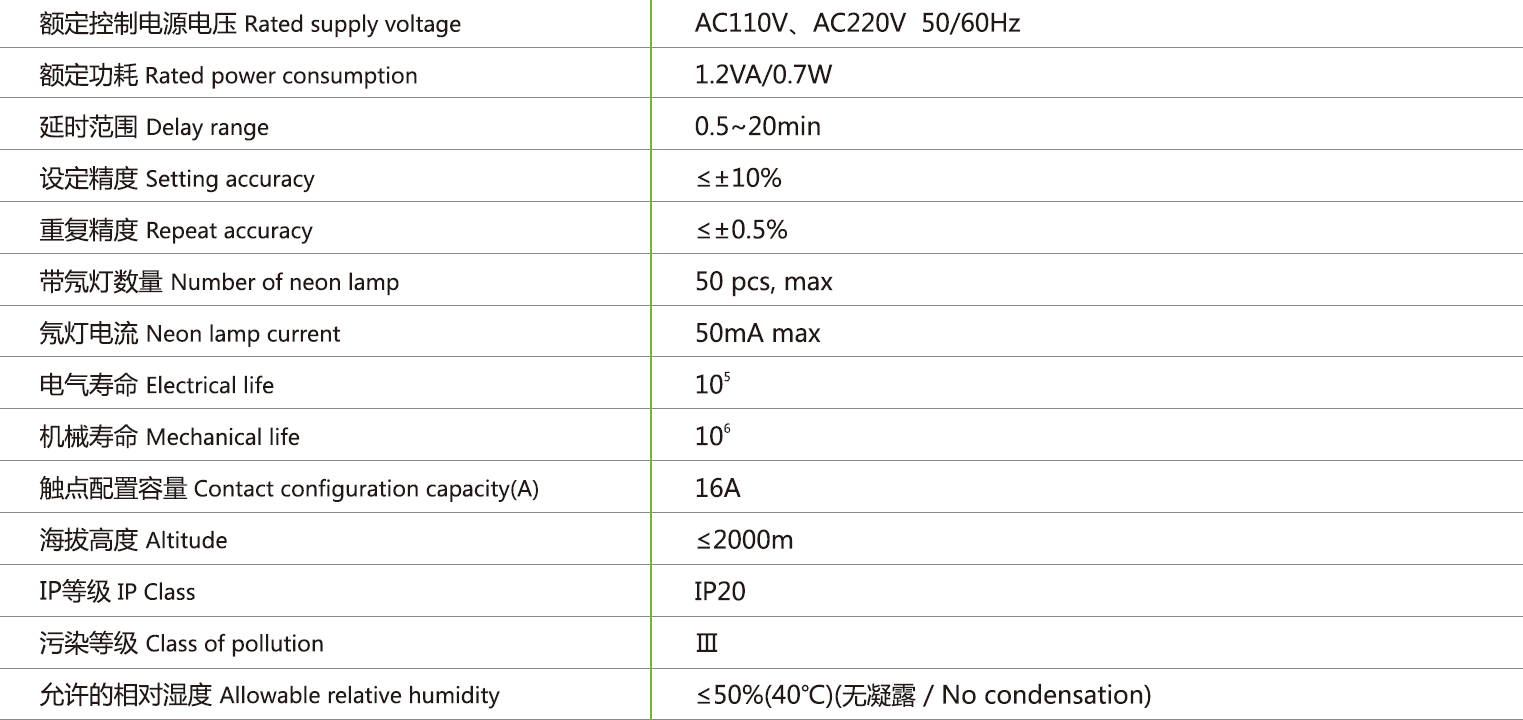

Item specifics
- Rated control supply voltage
- AC110V. AC220V 50/60Hz
- Rated power consumption
- 12VA/0.7W
- Delay range
- 0.5s~20min
- Setting accuracy
- ≤±5%
- Repeat accuracy
- ≤±0.2%
- Number of neon lamp
- 50 pcs,max
- Neon lamp current
- 50A max
- Contact configuration capacity(A)
- 16A
- IP Class
- IP 20
- Altitude
- ≤2000m
Review
Description
Function
Applications
Used in air conditioning units, elevator machine room, pumps, fans and other motor control applications, as protection of over-voltage, under voltage, phase failure, phase sequence and phase unbalance. When the power supply is abnormal, turn off power supply to protect the equipment.
uilt-in microcontrollers, repeat accuracy <0.2%. Knob / dial button setting, LED indicator shows working status. with ON,OFF,AUTO ehree operating modes, DIN rail mounting.

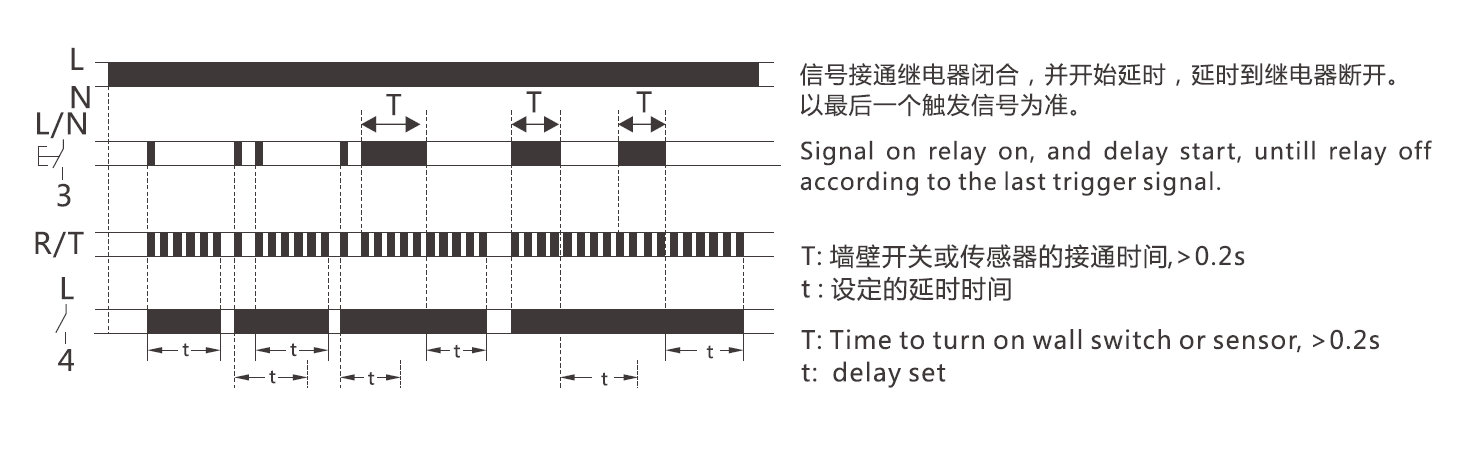

Function Diagram

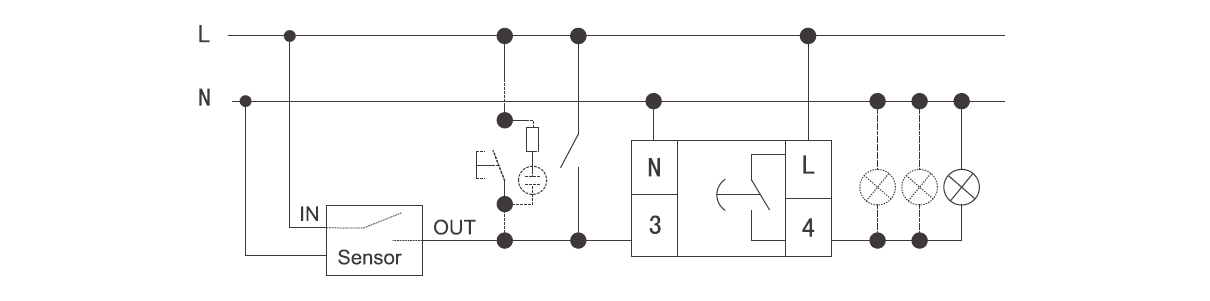

Wiring Diagram

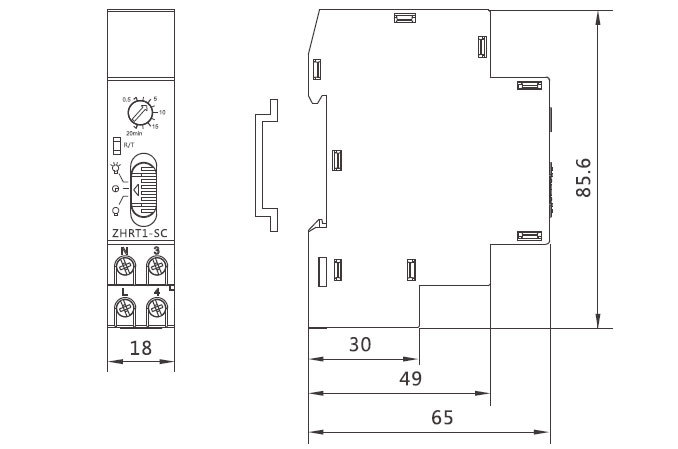

Dimensions
