ZHRT1-LS Sofielec time relay
ZHRT1-LS Sofielec time relay
Model
ZHRT1-LS

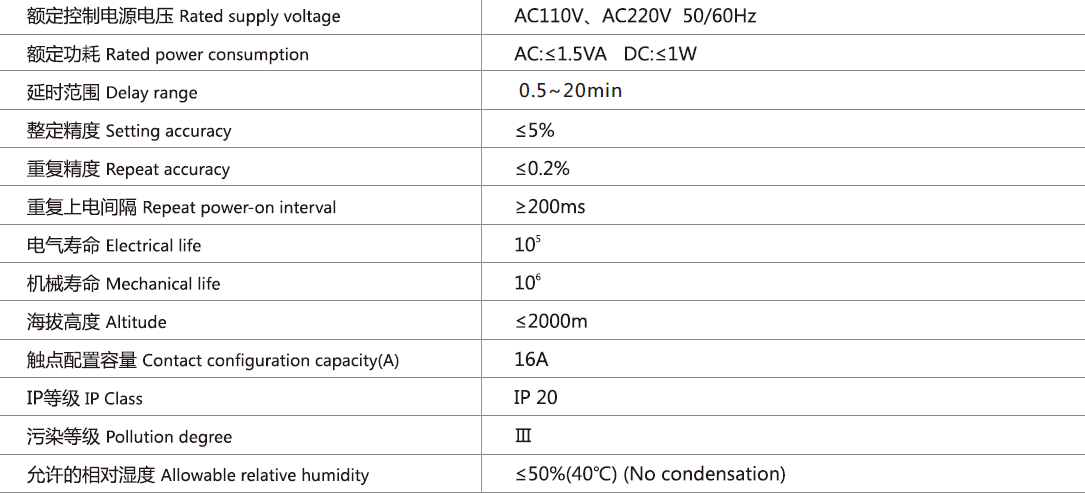

Item specifics

Rated supply voltage
AC110V. AC220V 50/60Hz
Rated power consumption
AC:≤1.5VA DC:≤1W
Delay range
0.5~20min
Setting accuracy
≤5%
Repeat accuracy
≤0.2%
Repeat power- on interval
≥200ms
Altitude
≤2000m
Contact configuration capacity(A)
16A
IP Class
IP 20
Allowable relative humdity
≤50%

Review

Description

Function

Applications

Used in air conditioning units, elevator machine room, pumps, fans and other motor control applications, as protection  of  over-voltage,  under  voltage, phase failure, phase sequence and phase unbalance. When the power  supply is abnormal, turn off power supply to protect the equipment.

 Features

uilt-in microcontrollers,  repeat accuracy ≤0.2%. Knob setting, LED indicator shows working status. With ON,OFF,AUTO three operating modes. DIN rail mounting.

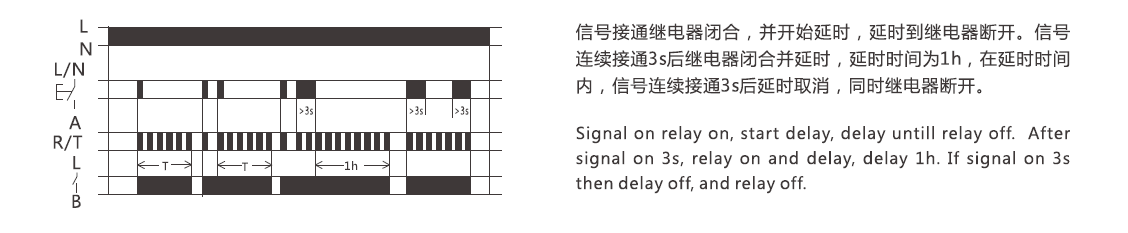

Function Diagram

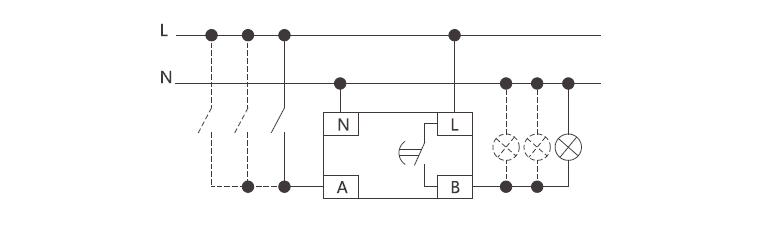

Wiring Diagram
Dimensions
