ATMM Multifunction Modular Timer Relay
ATMM Multifunction Modular Timer Relay
ATMM Multifunction Modular Timer Relay

ATMM Multifunction Modular Timer Relay

Model
ATMM

Item specifics

Supply Voltage
24~ 240VAC/DC 50-60Hz
Time setting
potentiometer
Time Deviation
5% mechanical setting
Repeat Accuracy
0.2% set value stability
Consumption
AC0.7-3 VA, /DC0.5- 1.7W
Supply Indication
Green Led
Output Indication
Red Led
Reset time
Max.200mS
Operating temperature
-10~ +50
Mounting
35 mm rail mounting

Review

Description

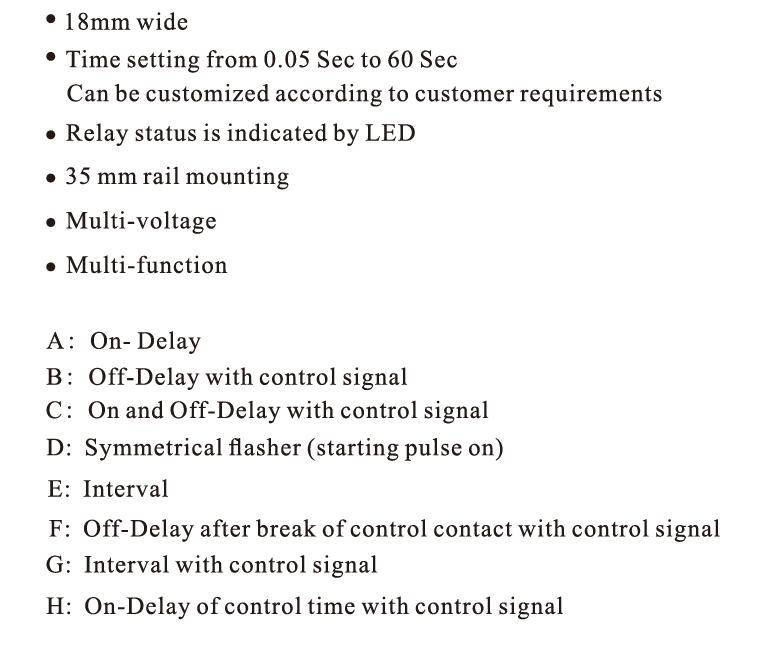

Features

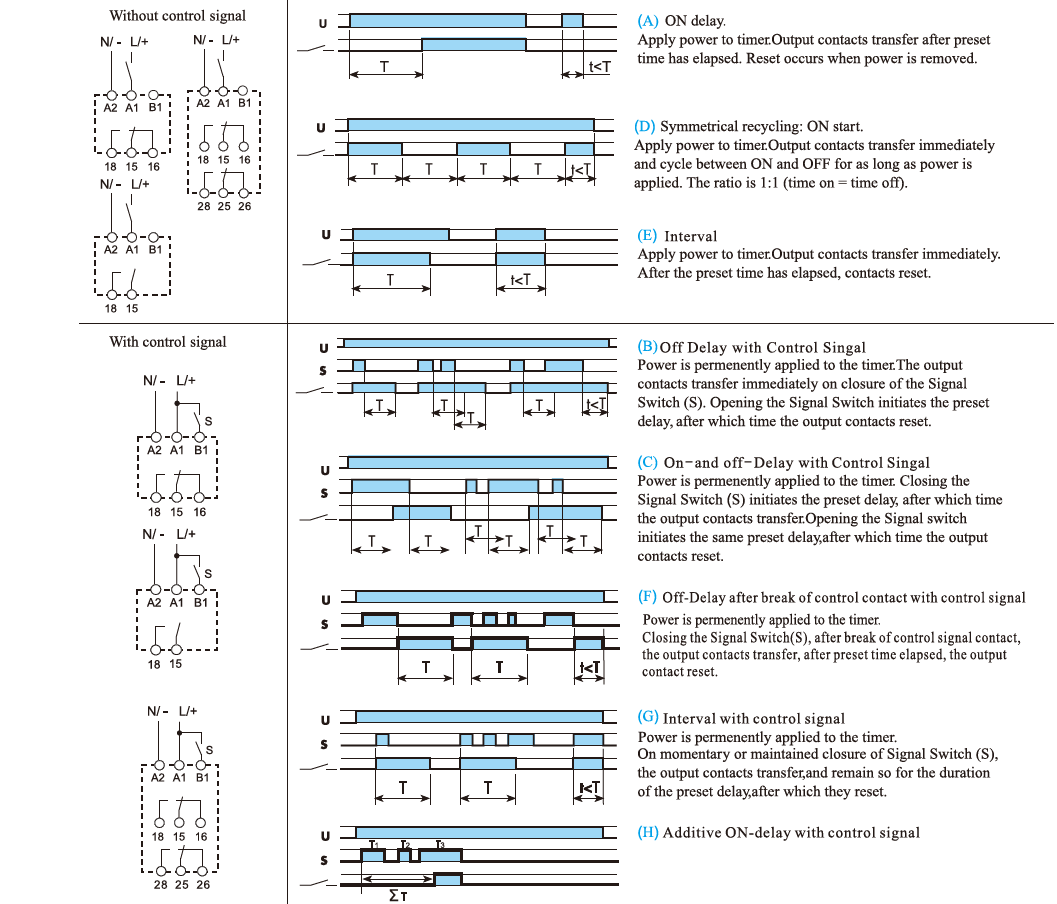

Function

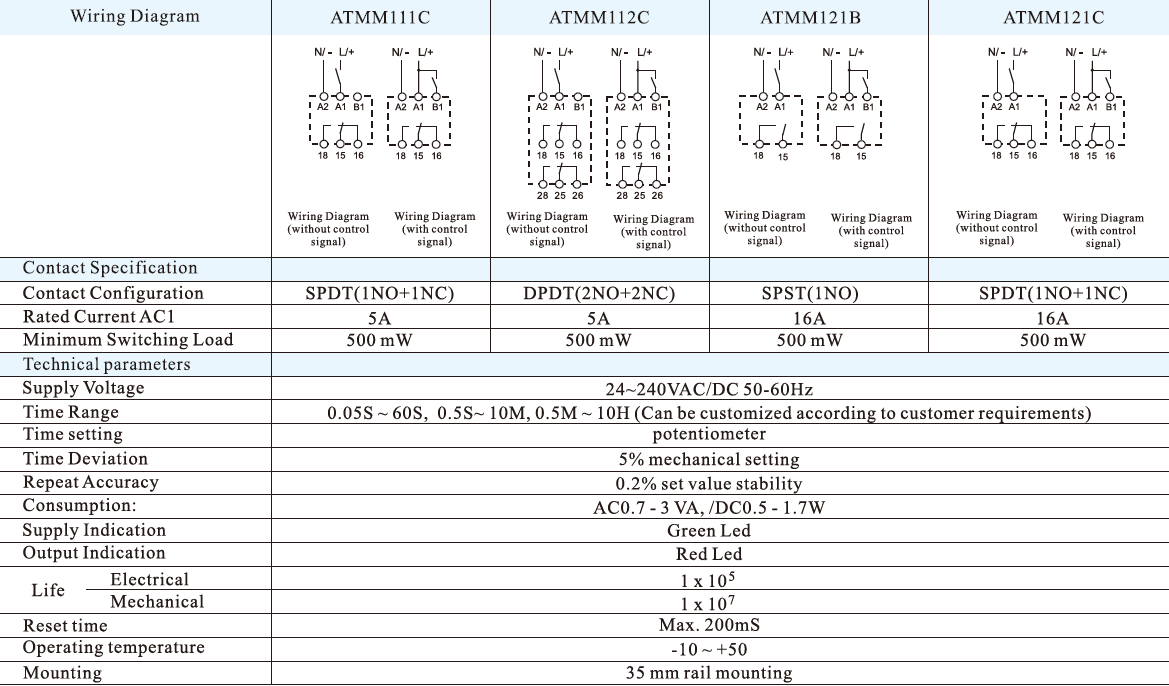

Technical date

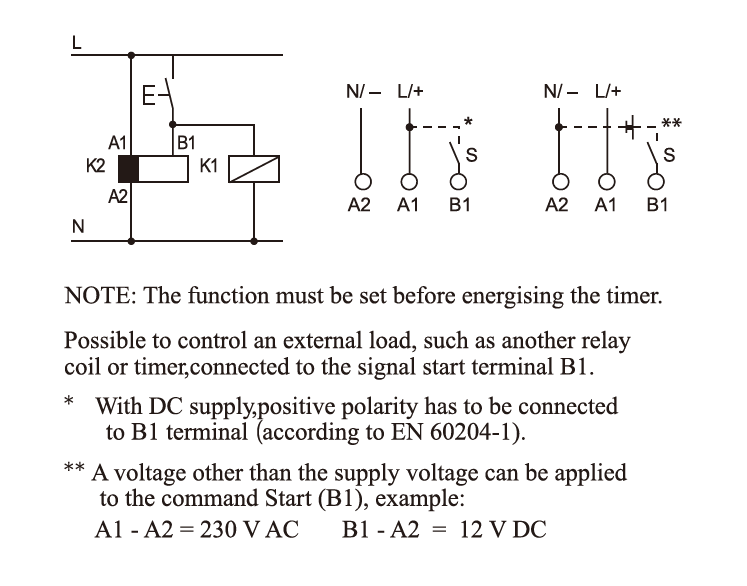

Wiring diagram

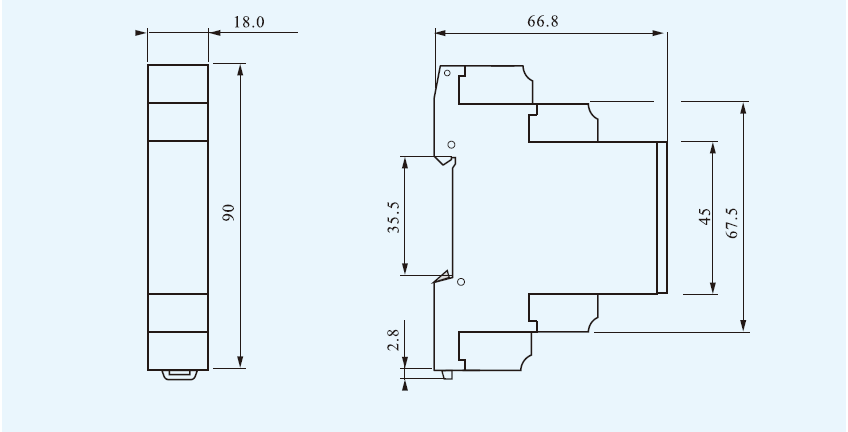

Dimensions
