ATMS Start-delta Modular Timer Relay
ATMS Start-delta Modular Timer Relay
Model
ATMS5

Item specifics

Supply Voltage
24~ 240VAC/DC 50-60Hz
Time Range
0.5S~ 10M (Can be customized according to customer requirements)
Time setting
potentiometer
Time Deviation
5% mechanical setting
Repeat Accuracy
0.2% set value stability
Consumption
AC0.7-3 VA, /DC0.5- 1.7W
Supply Indication
Green Led
Output Indication
Red Led
Reset time
Max.200mS
Operating temperature
-10~ +50

Review

Description

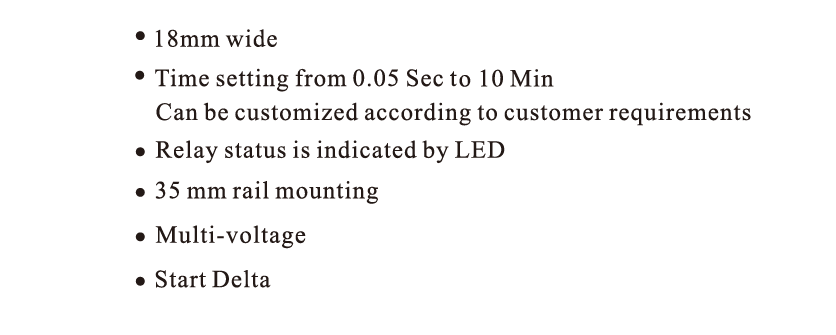

Features

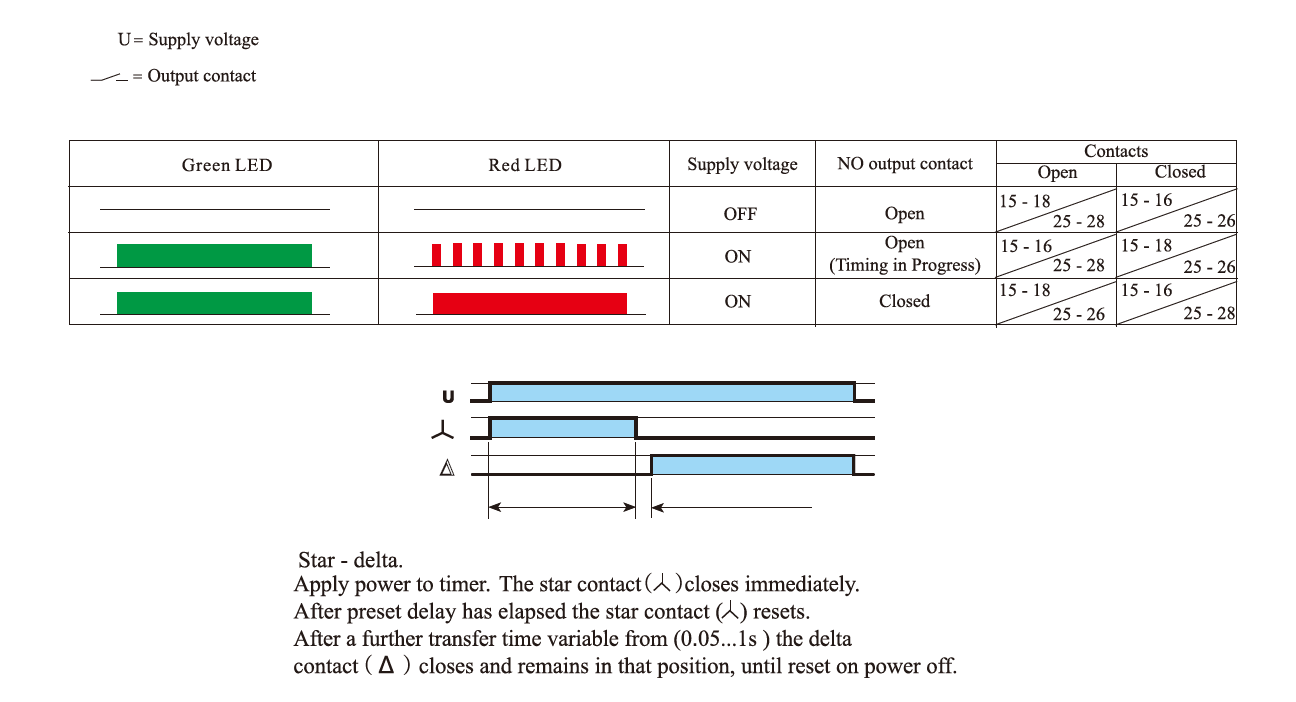

Function
Technical date

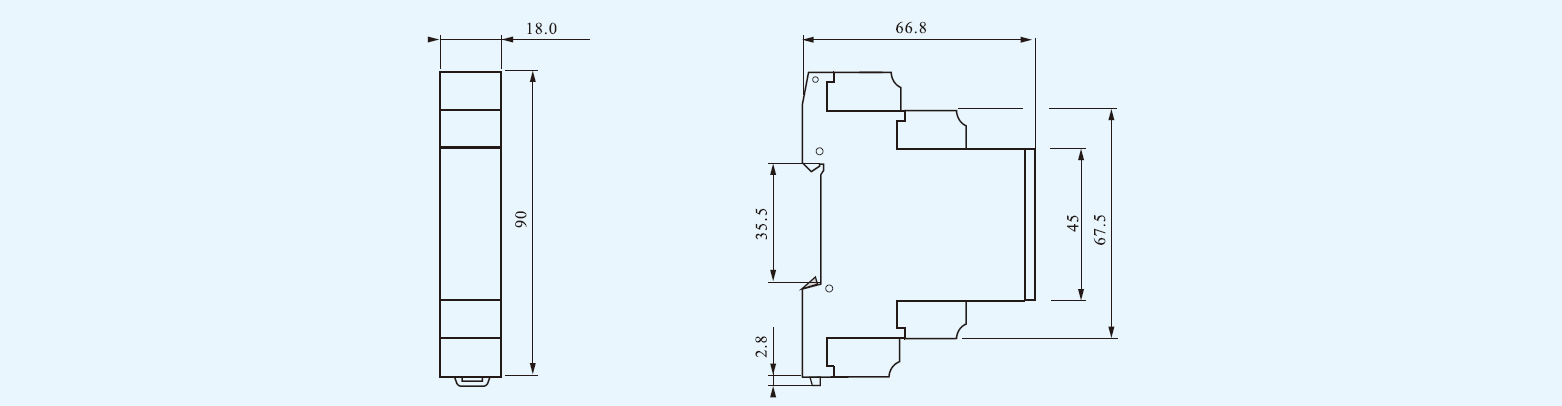

Dimensions
