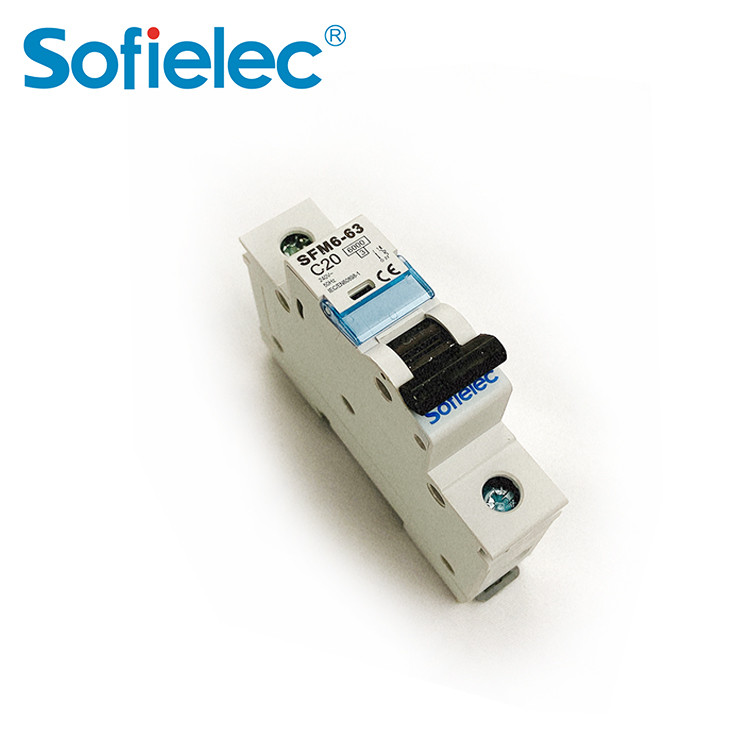

NF approval 40amps Disjoncteur miniature MCB
- Model
- SFM6-63
Item specifics
- Pole No
- 1, 2, 3, 4
- Rated voltage
- AC 230/400V
- Rated current (A)
- 1,2,3,4,6, 10, 13, 16, 20, 25, 32, 40, 50, 63
- Rated frequency
- 50/60Hz
- Certificate
- CB CE NF ROHS
- Standard
- IEC60898-1
- Mechanical Life
- 2000 Times
Review
Description
Technical Data
|
l Pole No.: 1, 2, 3, 4 |
|
l Rated voltage: AC 230/400V |
|
l Rated current (A):1, 2, 3, 4, 6, 10, 13, 16, 20, 25, 32, 40, 50, 63 |
|
l Tripping curve: B, C, D |
|
l High short-circuit breaking capacity (Icn): 6kA |
|
l Rated service short-circuit breaking capacity(Ics): 7.5kA |
|
l Rated frequency: 50/60Hz |
l Energy limiting class: 3 |
l Rated impulse withstand voltage: 6.2kV |
l Electro-mechanical endurance: 10000 |
|
l Contact position indication |
|
l Connection terminal:Screw terminal |
|
l Connection capacity: Rigid conductor up to 25mm ² |
|
l Terminal Connection Height: 19mm |
|
l Fastening torque: 2.0Nm |
|
l Installation: |
Construction and Feature
| 1. Fine and unique appearance |
| 2. Short-circuit and overload dual-protection performance |
| 3. High-breaking capacity (6KA) that is leading among the world similar products |
| 4. Unique label, transparent window |
| 5. Convenient and reliable installation mode 6.SFM6-63 mcb Protection against overload and short circuit,6KA high short circuit , beautiful appearance with transparent window. The rated working voltage 24/415V. Completely rated current from 1 amp to 63 amp. Widely use for houses,offices,commercial complex,motor system(D curve) and industrial installation-for switching ,control,protection and regulation of electrical circuits. Also in switchgear panels,railway and marine application. |
Characteristic Curve
| Pole No.: | 3P |
| Rated Current (A): | 1,2,3,4,6,10,13,16,20,25,32,40,50,63A |
| Rated Voltage: | AC 230/400V |
| Rated frequency: | 50/60Hz |
| Tripping Curve: | B,C,D |
| High Short-circuit breaking capacity (Icn): | 6000A |
| Energy limiting class | 3 |
| Rated impulse withstand voltage | 6.2kV |
| Electro-mechanical Endurance | 10000 |
| Connection terminal | Pillar terminal with clamp |
| Connection capacity | Rigid conductor up yo 25mm² |
| Fastening torque | 2.0Nm |
| linstallation | On symmetrical DIN rail 35.5mm , Panel mounting |
| Terminal Connection Height | 21mm |
| Products Name : | NF Disjoncteur miniature |
