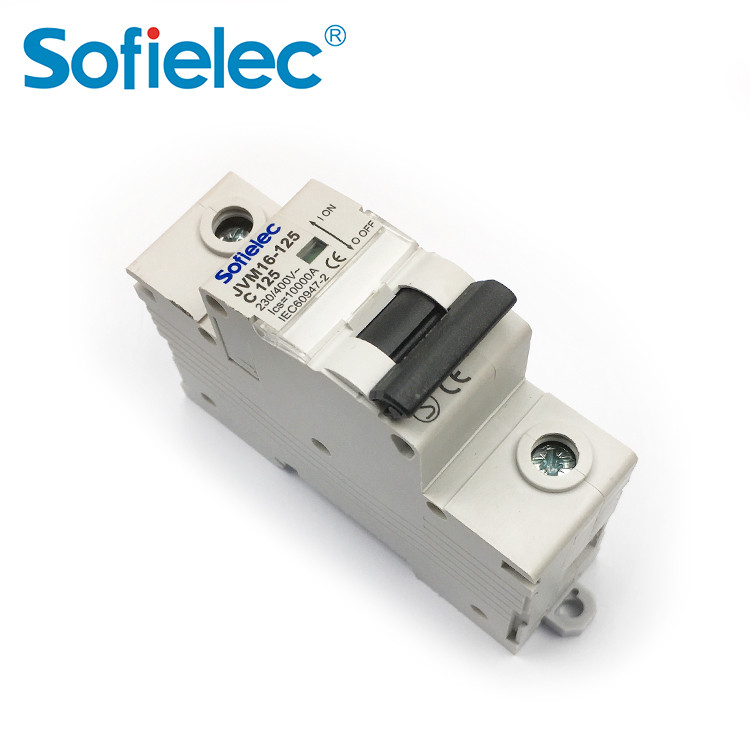

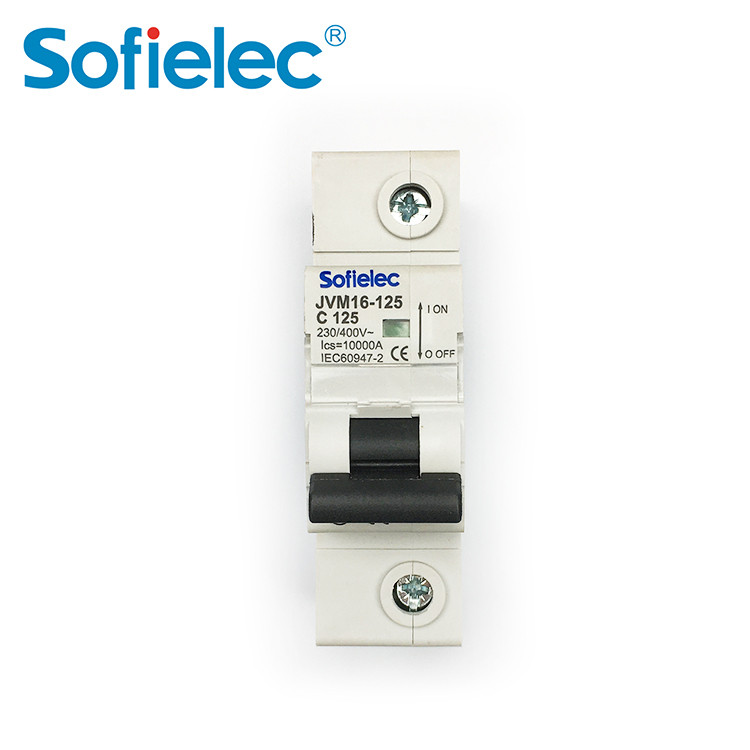

10kA JVM16-125 China factory make 3 phase 100A miniature circuit breaker
Item specifics
- Pole No
- 1, 1P+N, 2, 3, 3P+N, 4
- Rated voltage
- AC 230/400V
- Rated current(A)
- 20, 25, 32, 40, 50, 63, 80, 100, 125.
- Tripping curve
- C, D
- Rated impulse withstand voltage
- 6kV
- Rated frequency
- 50/60Hz
- Electro-mechanical endurance
- In≤100=1001000;ln125=8000
- ultimate short-circuit breaking capacity
- 10kA
- service short-circuit breaking capacity(Ics)
- 7 .5kA
- Connection terminal
- Pillar terminal with clamp
Review
Description
Technical Data
|
l Pole No.: 1, 1P+N, 2, 3, 3P+N, 4 |
|
l Rated voltage: AC 230/400V |
|
l Rated current (A)::20, 25, 32, 40, 50, 63, 80, 100, 125 |
|
l Tripping curve: C, D |
|
l Ultimate short-circuit breaking capacity (leu): 10kA |
|
l Service short-circuit breaking capacity(lcs):7.5kA |
|
l Rated impulse withstand voltage:6kV |
l Electro-mechanical endurance: Insl00=10000;ln125=8000 |
l Connection terminal: Pillar terminal with clamp |
|
l Gonnection capacity:Flexible conductor 35mm2 Rigid conductor 50mm² |
|
l Installation: On symmetrical DIN rail 35mm Panel mounting |
|
l Terminal Connection Height: 20mm
|
Construction and Feature
l High short-short capacity 10KA.
l Designed to protect circuit carrying big current up to 125A
l Contact position indication.
l Used as main switch in household and similar installation

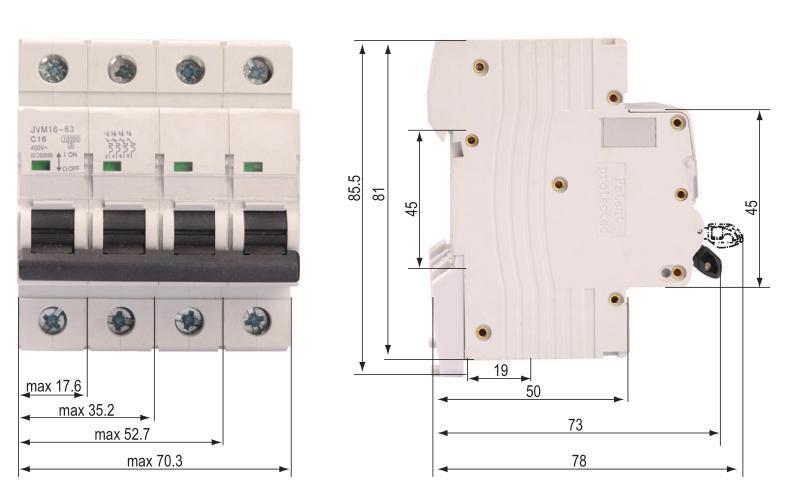

Overall & Installation Dimensions

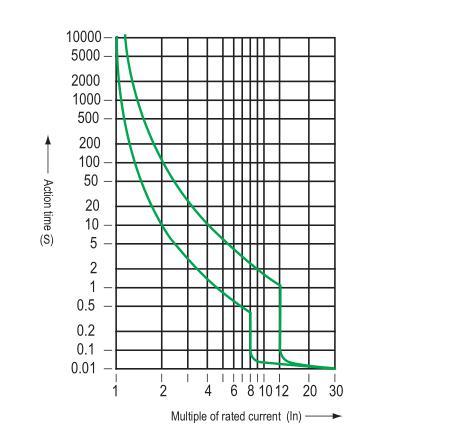

Characteristic Curve
