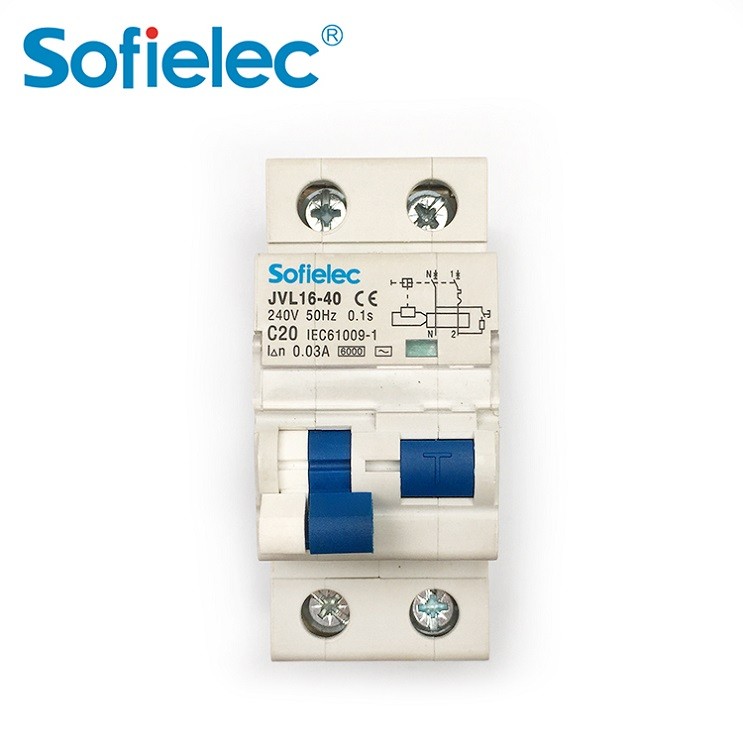

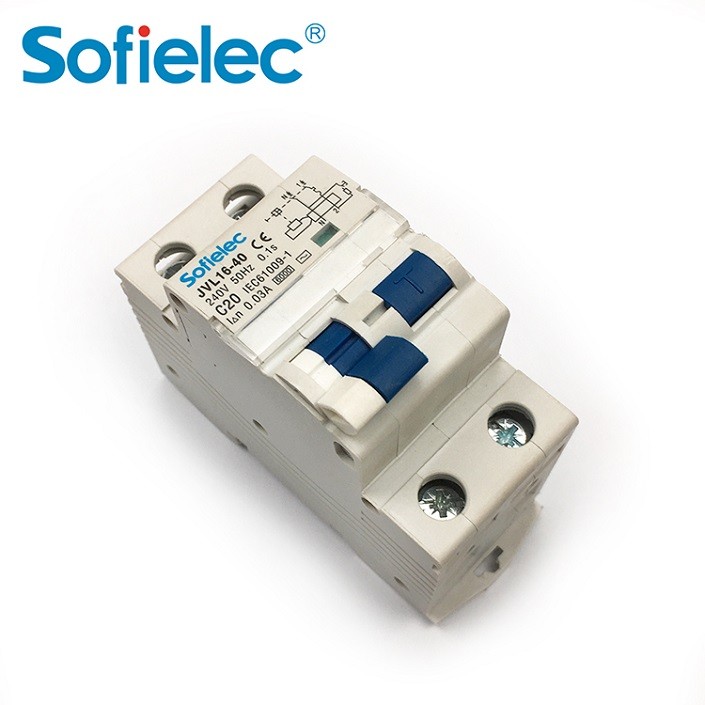

10kA JVL16-40 Factory price 1P+N 100ma rcbo circuit breaker with overload protection
Item specifics
- Type
- Electro-magnetic type
- Residual current characeristics
- AC APole No.: 1P+N

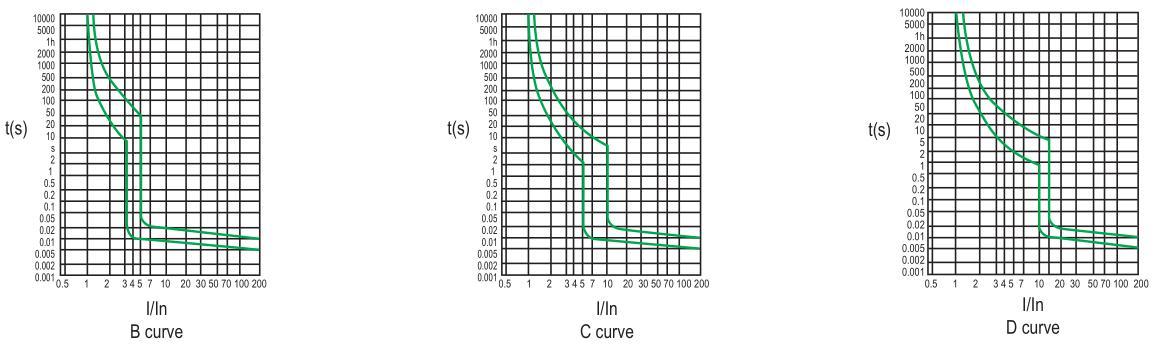

- Tripping curve
- B,C, D
- Rated short-circuit capacity
- 10kA
- Rated voltage
- 240V AC
- Rated frequency
- 50/60Hz
- Rated residual operating current(mA)
- 0.03,0.1,0.3.
- Tripping duration
- instantaneous≤0.1s
- Electro-mechanical endurance
- 4000 cycles
- Connection terminal
- pillar terminal with clamp
Review
Description
Technical Data
|
l Type：Electro-magnetic type |
|
l Residual current characteristics: AC A |
|
l Pole No.: 1P+N |
|
l Tripping curve: B, C, D |
|
l Rated short-circuit capacity: 10kA |
|
l Rated current (A): 1,2,3,4,6,10,16,20,25,32,40 |
|
l Rated frequency: 50/60Hz |
l Rated residual operating current(mA): 0.03,0.1,0.3 |
l Tripping duration: instantaneous≤0.1s |
l Electro-mechanical endurance: 4000 cycles |
l Connection terminal: pillar terminal with clamp |
l Connection capacity:Rigid conductor 16mm 2 |

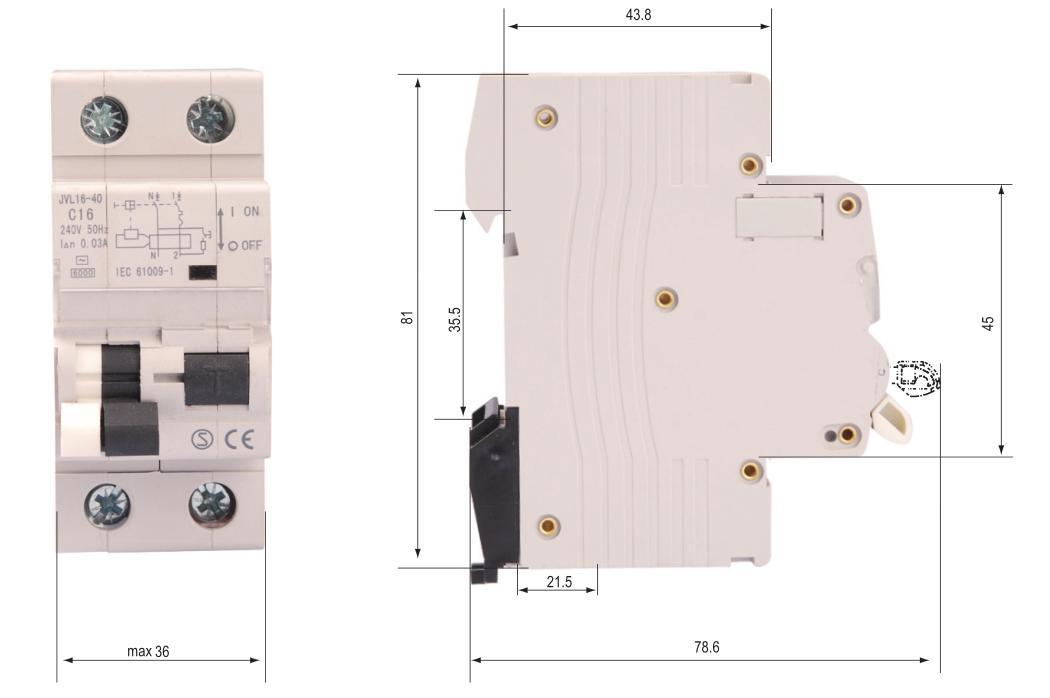

l Terminal connection height: 21.5mm |
l Installation:On symmetrical DIN rail 35mm |
Construction and Feature
Provides protection against earth fault/leakage current, short-circuit, overload, and
function of isolation
Provides complementary protection against direct contact by human body
Effectively protects electric equipment against insulating failure
Provides comprehensive protection to household and commercial distribution
systems
