6kA SFM65N-63 best quantity C25 types of miniature circuit breaker
Item specifics
- Pole No
- 1P. 1P+N. 2P. 3P. 3P+N. 4P
- Rated current(A)
- 1. 2. 3.4. 6. 10.16. 20. 25. 32. 40. 50. 63
- Rated voltage
- AC 230. 230/400. 400
- Rated Frequency
- 50/60Hz
- Tripping curve
- B. C. D
- Rated short-circuit capacity (Icn)
- 6000A
- Mechanical life
- 20000 times
- Contact position
- indication window
- Degree of protection
- IP20
- Connection terminal
- Pillar terminal with clamp
Review
Description
■ Fine and unique
appearance,advanced
design
■ Short-circuit and overload
dual-protection performance
■ High-breaking capacity
(6KA) that is leading among
the world similar products
■ Mechanical life:4000 times
■ Convenient and reliable
installation
■ Model： SFM65-63 |
|

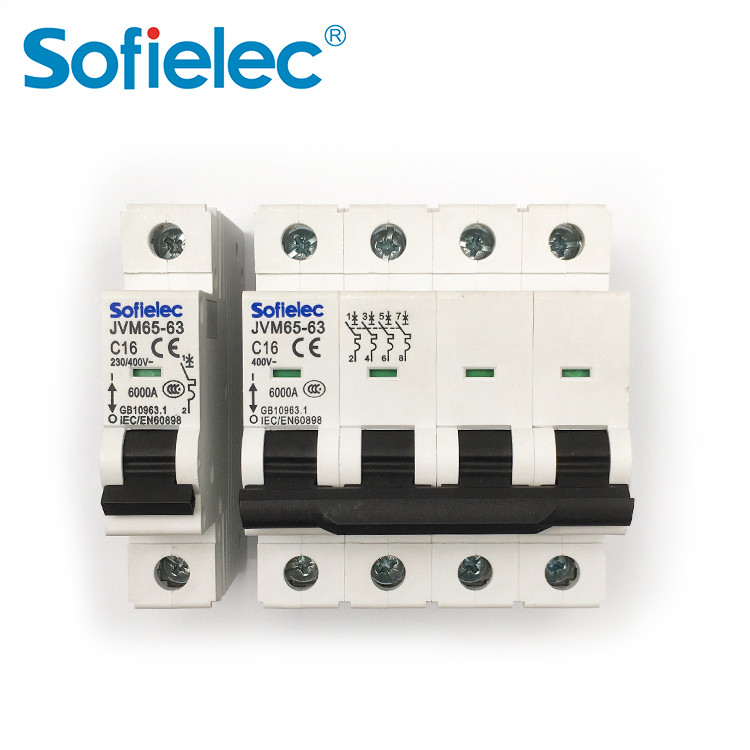

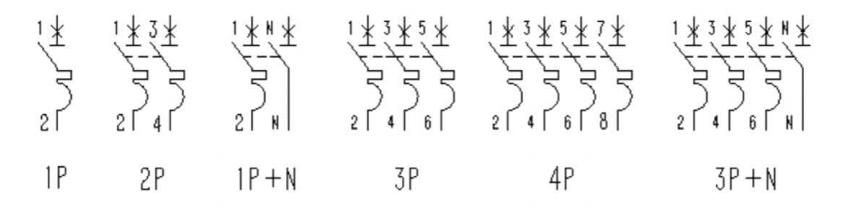

■ Pole No.： 1P, 1P+N, 2P, 3P. 3P+N, 4P |
■ Rated current(A):1、2、3、4、6、10、16、20、25、32、40、50、63 |
■ Rated voltage： AC 230, 230/400. 400 |
■ Rated Frequency： 50/60HZ |

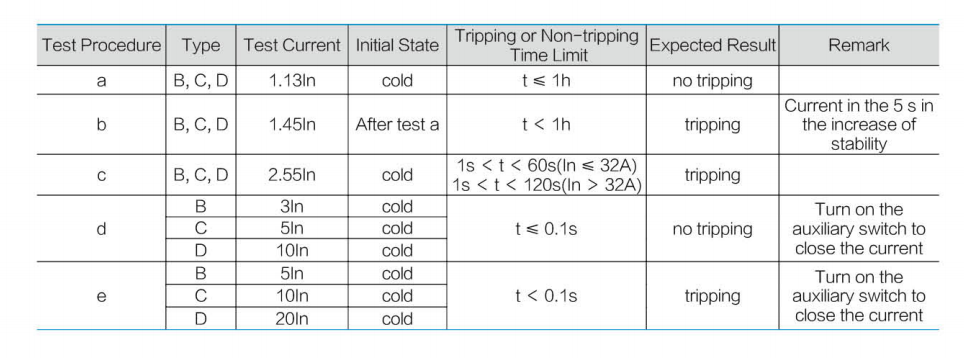

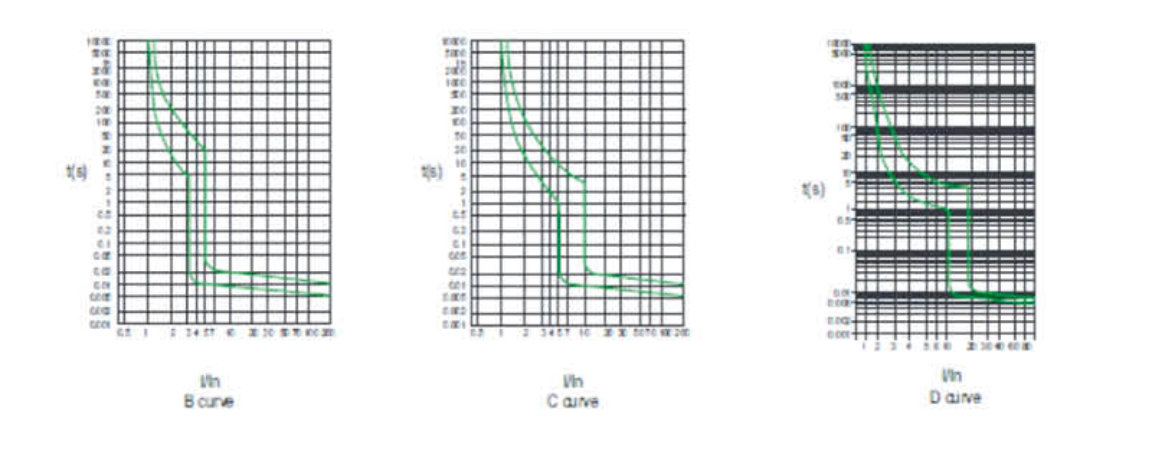

■ Tripping curve： B, C. D |
|
■ Rated short-circuit capacity (Icn) :6000A |
|
■ Mechanical life： 20000 times |
|
■ Contact position indication window |
|
■ Degree of protection： IP20 |
|
■ Connection terminahPillar terminal with clamp |
|
■ Connection conductor： up to and including 16mm |

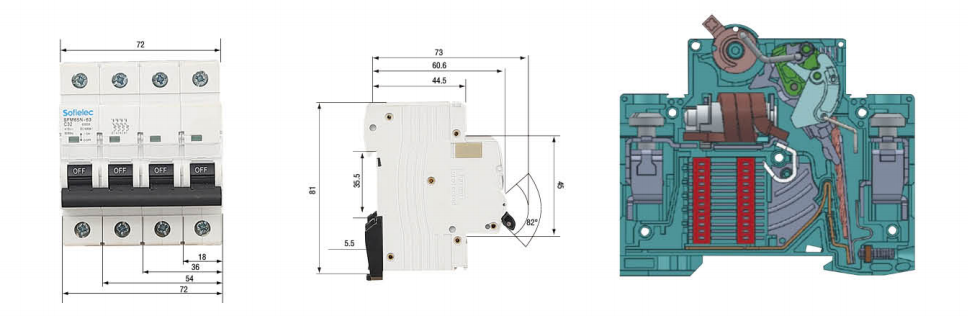

■ Terminal Connection Height:H1=19.5mm,H2=21.5mm |
■ lnstallation:DIN-rail mounting |
