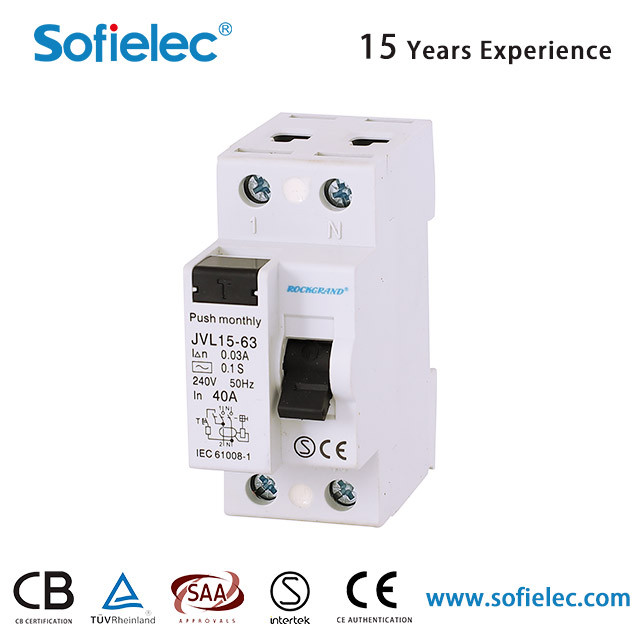

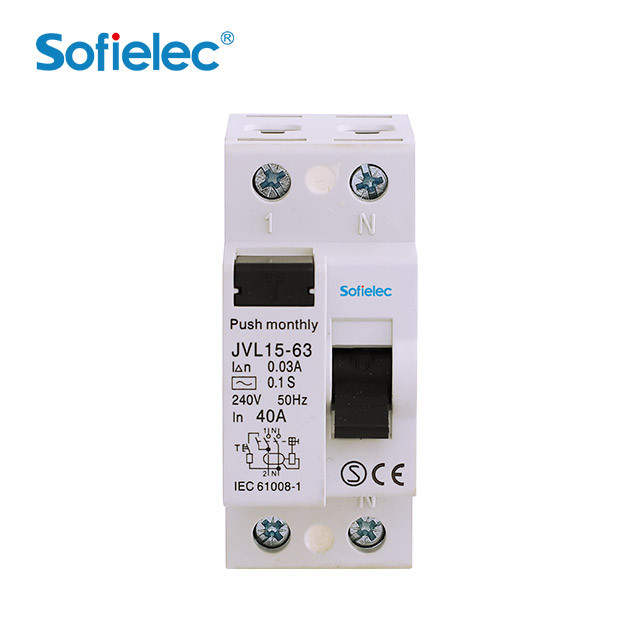

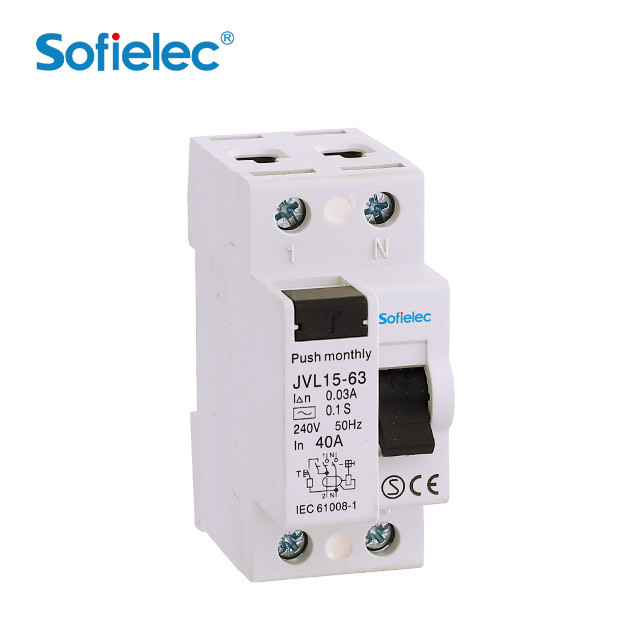

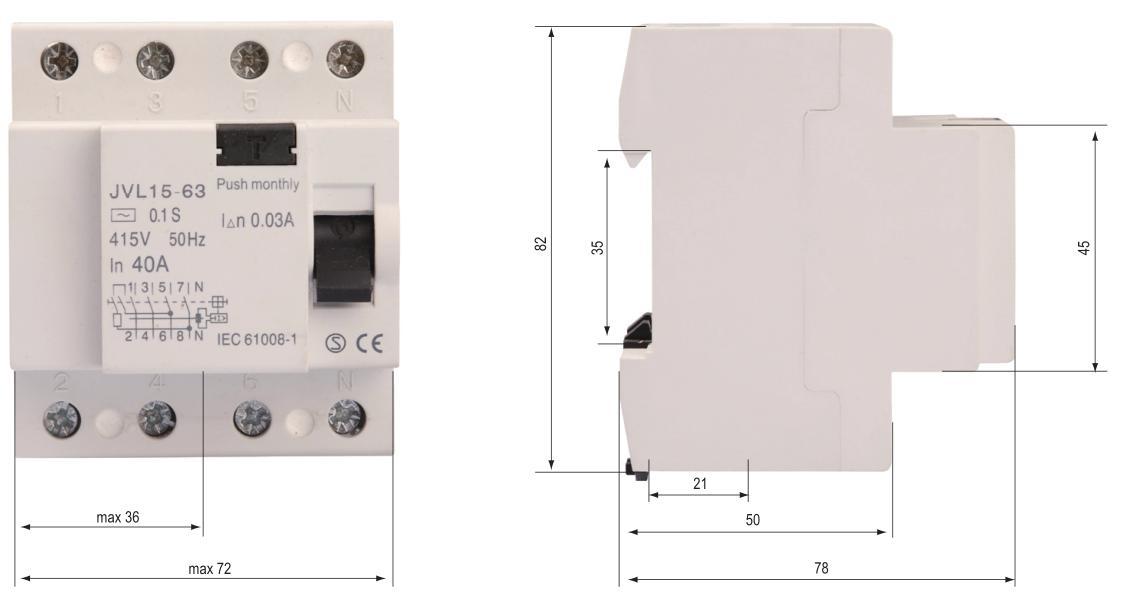

6kA JVL15-63 factory direct sales high quality 6.2kV 16 mcb circuit breaker
Item specifics
- Mode
- electro- magnetic type , electronic type
- Residual urrent charateristis
- A, AC
- Pole No
- 2, 4
- Rated current(A)
- 16, 25, 40, 63
- Rated voltage
- AC 230/400V
- Rated frequency
- 50/60Hz
- Terminal Connection Height
- 21mm
- Electro-mechanical endurance
- 4000 cycles
- Fastening torque
- 2.0N.m
- Protection class
- IP20
Review
Description
|
l Mode: electro-magnetic type, electronic type |
|
l Residual current characteristics: A, AC |
|
l Pole No.: 2, 4 |
|
l Rated making and breaking capacity: 500A(In=25A,32A,40A) or 630A(In=63A) |
|
l Rated current(A): 16, 25, 40, 63 |
|
l Rated voltage: AC 230/400V |
|
l Rated frequency: 50/60Hz |
l Rated residual operating current I△n(A): 0.03, 0.1, 0.3, 0.5 |
l Rated residual non operating current I△no: 0.5I△n |
l Rated conditional short-circuit current Inc: 10kA |
|
l Rated conditional residual short-circuit Current I△c: 10kA |
|
l Residual tripping current range: 0.5I△n~I△n |
|
l Terminal Connection Height: 21mm |
|
l Electro-mechanical endurance: 4000 cycles |
|
l Connection capacity: Rigid conductor 25mm ² |
|
l Connection terminal:Screw terminal |
l Pillar terminal with clamp |
l Fastening torque: 2.0N.m |
l Installation:On symmetrical DIN rail 35.5mm Panel mounting |
l Protection class:IP20 |
Construction and Feature
Provides protection against earth fault/leakage current and function of isolation
High short-circuit current withstand capacity
Applicable to terminal and pin/fork type busbar connection
Contact position indication
Equipped with finger protected connection terminals
Fire resistant plastic parts endures abnormal heating and strong impact
Automatically disconnect the circuit when earth fault/ leakage current occurs and
exceeds the rated sensitivity.
Independent of power supply and line voltage, and free from external interference,voltage fluctuation.

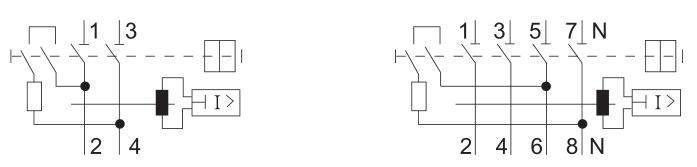

Wiring Diagram
