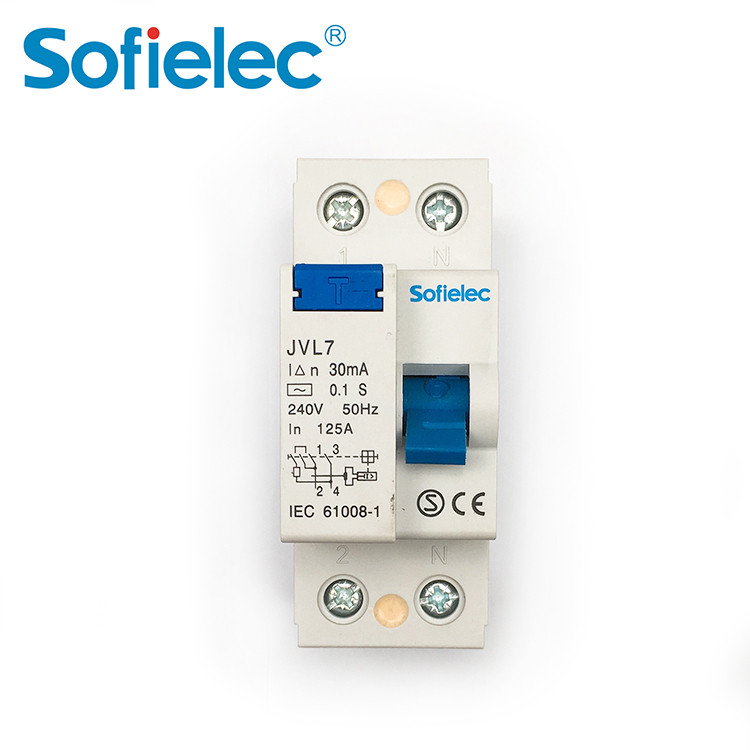

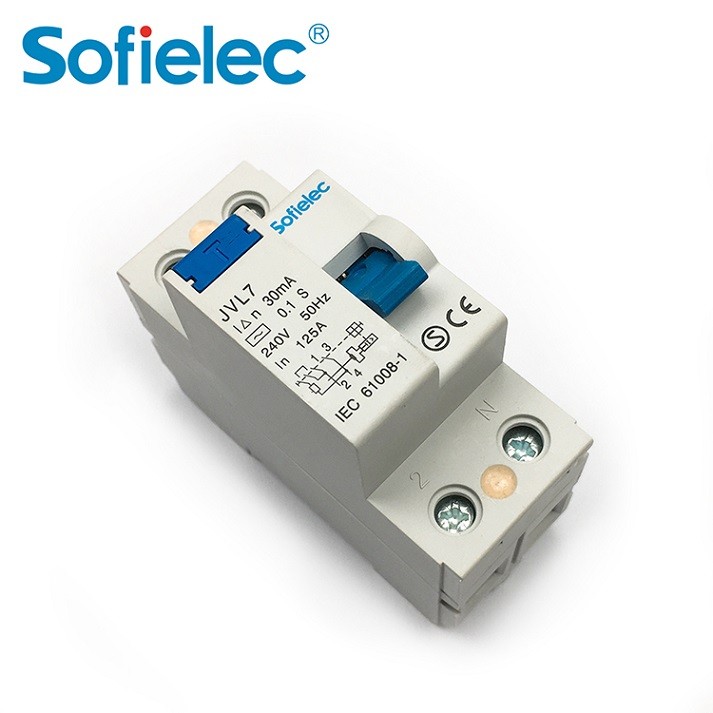

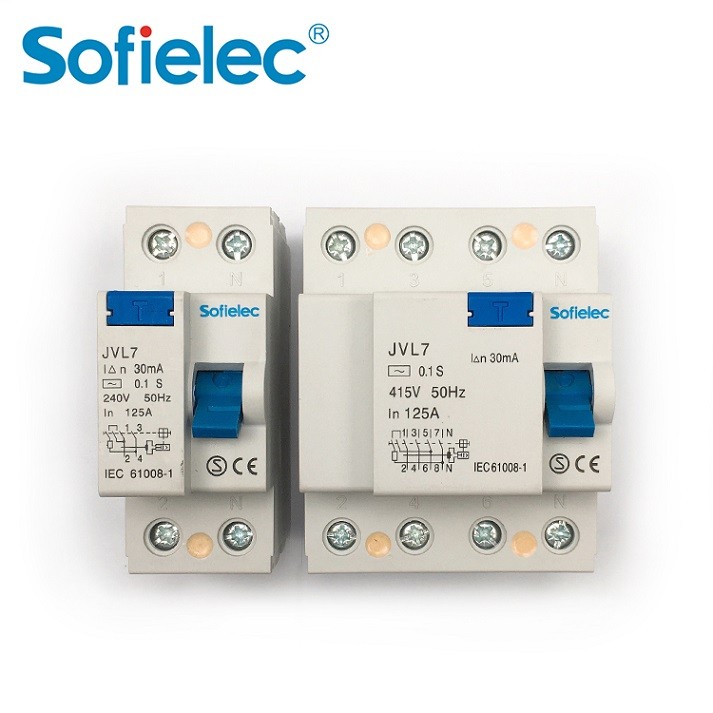

6kA JVL7 240V Sofielec Magnetic 100A 125A RCCB 2P 4P, SEMKO,CB,CE approval, A,AC type Residual Current Circuit Breaker
Item specifics
- Mode
- electro-magnetric type. elecronic type
- Residual current charatrstics
- A AC
- Pole No
- 2, 4
- Rated making and breaking capacity
- 630A
- Rated current(A)
- 25, 40, 63, 80, 100, 125
- Rated voltage
- AC 230(240)/400(415)
- Rated frequency
- 50/60Hz
- Rated conditional short-circuit current Inc
- 6kA
- Terminal Connection Height
- 21mm
- Protection class
- lP20
Review
Description
|
l Mode: electro-magnetic type, electronic type |
|
l Residual current characteristics: A, AC |
|
l Pole No.: 2, 4 |
|
l Rated making and breaking capacity: 630A |
|
l Rated current(A): l 25, 40, 63, 80, 100, 125 |
|
l Rated voltage: AC 230(240)/400(415) |
|
l Rated frequency: 50/60Hz |
l Rated residual operating current I△n(A): 0.03, 0.1, 0.3, 0.5 |
l Rated residual non operating current I△no: 0.5I△n |
l Rated conditional short-circuit current Inc: 6kA |
|
l Rated conditional residual short-circuit Current I△c: 6kA |
|
l Tripping duration: instantaneous tripping≤0.1s |
|
l Residual tripping current range: 0.5I△n~I△n |
|
l Electro-mechanical endurance: Not less than 4000 |
|
l Connection capacity: Rigid conductor 35mm ² |
|
l Terminal Connection Height: 21mm |
|
l Connection terminal: |
l Fastening torque: 2.5Nm |
l Installation:On symmetrical DIN rail 35mm Panel mounting |
l Protection class:IP20 |
Construction and Feature
Provides protection against earth fault/leakage current and function of isolation
High short-circuit current withstand capacity
Applicable to terminal and pin/fork type busbar connection
Contact position indication
Equipped with finger protected connection terminals
Fire resistant plastic parts endures abnormal heating and strong impact
Automatically disconnect the circuit when earth fault/ leakage current occurs and
exceeds the rated sensitivity.
Independent of power supply and line voltage, and free from external interference,voltage fluctuation.

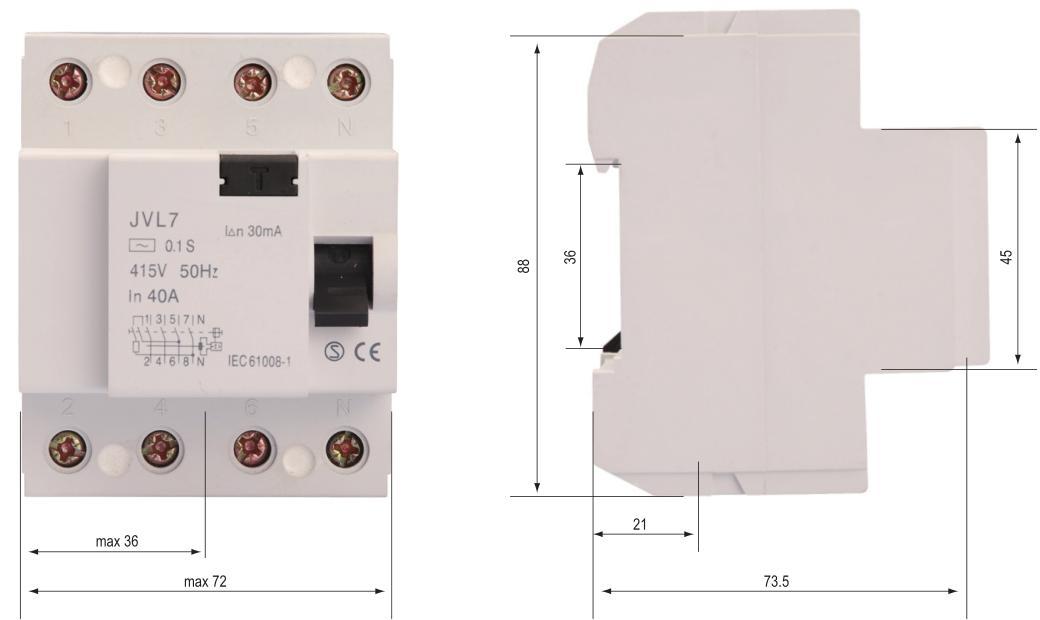

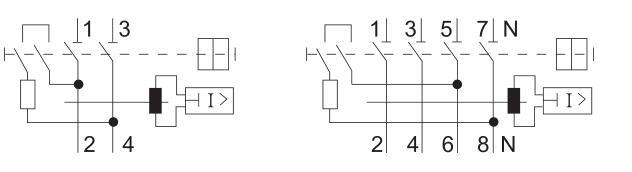

Wiring Diagram
