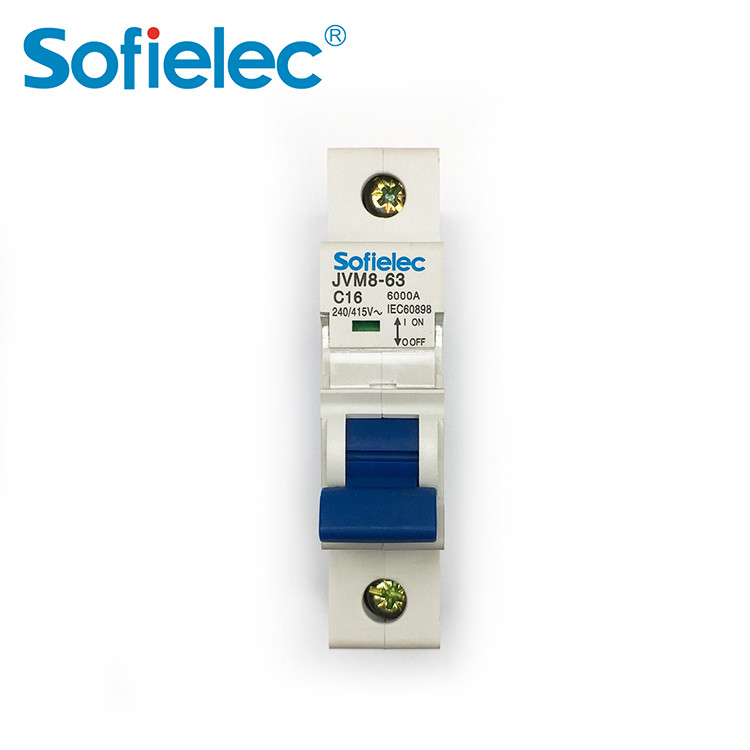

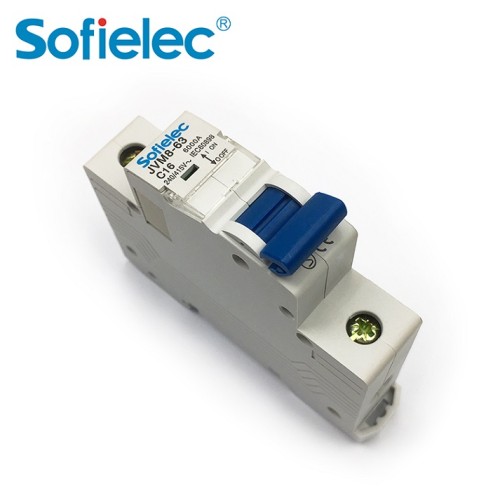

6kA JVM8-63 2017 new design b c d curve circuit breaker
- Model
- JVM8-63
Item specifics
- PoleNo
- 1P. 2P. 3P. 4P
- Rated current(A
- 6. 10. 16. 20. 25. 32. 40. 50. 63
- Rated working woltage
- 240/415V
- Rated Frequency
- 50/60Hz
- Rated insulation voltage
- 500V
- Rated short-circuit capacity
- 6000A
- Mechanical life
- 15000 times
- Degree of protection
- IP20
- Wiring Heigh
- 21.5mm
Review
Description
Technical Data
|
l Pole No.；1P. 2P. 3P, 4P |
|
l Rated current(A):6. 10. 16. 20, 25, 32, 40. 50, 63 |
l Rated working voltage: 240/415V |
|
l Rated Frequency: 50/60Hz |
|
l Rated insulation voltage: 500V |
l Rated short-circuit capacity:6000A |
|
l Instantaneous tripping current:5ln(Btype)10ln(C type)20ln(D type) |
|
l Instantaneous non-tripping current:3ln(B type)5ln(C type)10ln(D type) |
l Mechanical life: 15000 times |
l Degree of protection: IP20 |
l Wiring connection mode: upward line |
l Connection conductor: 1~16mm² |
l Wiring Height:21.5mm |
Fine and unique appearance,advanced design
Short-circuit and overload dual-protection performance
High-breaking capacity (6KA ) that is leading among the world similar products
Unique labels，Contact position indication window
Convenient and reliable installation

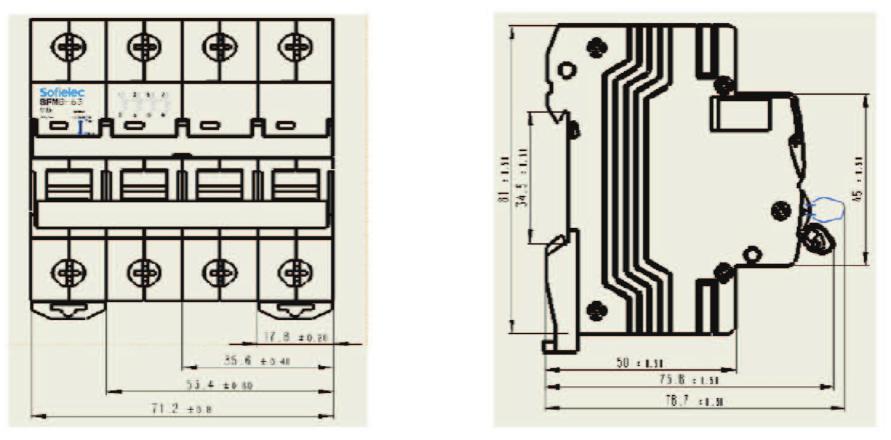

Technical Data
