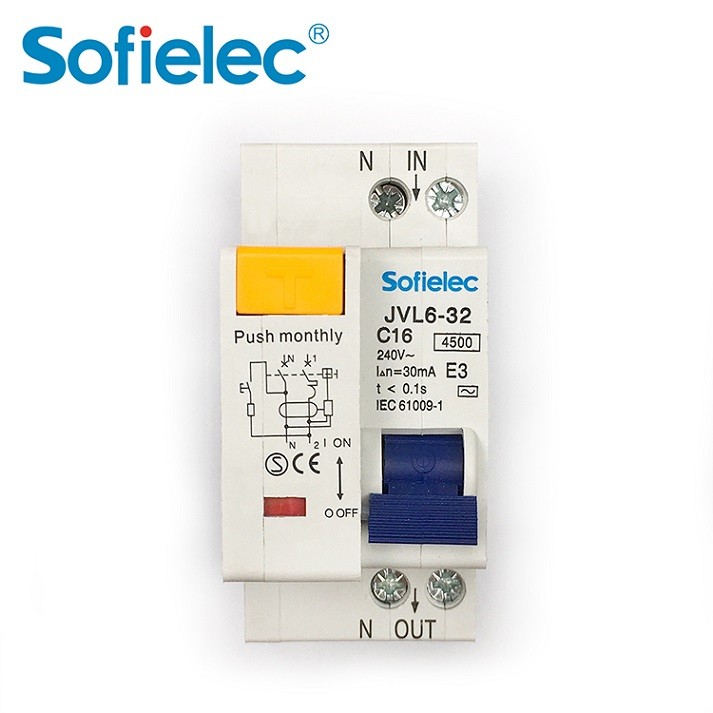

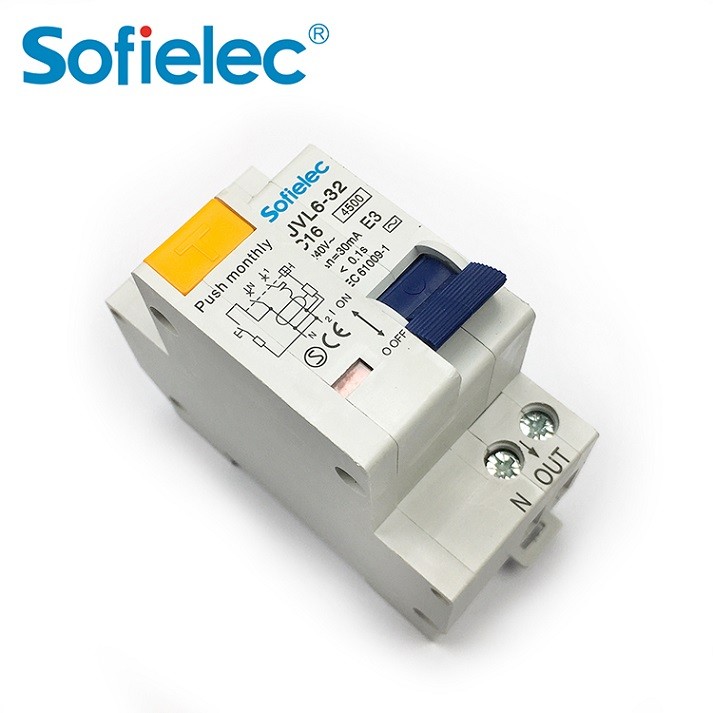

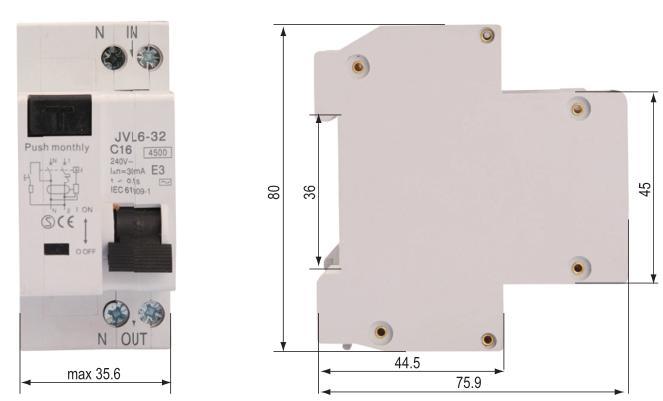

6kA JVL6-32 AC 240V 1p+n rcbo/rcd electronic 4 pole miniature circuit breaker with CE certificate
Item specifics
- Type
- Electronic type
- Residual current characteristics
- AC. Pole No.: 1P
- Tripping curve
- B,C,D
- Rated short-circuit capacity
- 4.5kA
- Rated current(A)
- 6, 10, 16, 20, 25, 32
- Rated voltage
- 240V AC
- Rated frequency
- 50/60Hz
- Rated residual operating current(mA)
- 0.03, 0.1, 0.3
- Tripping duration
- instantaneous≤0.1s
- Electro-mechanical endurance
- 4000 cycles
Review
Description
|
l Type: Electronic type |
|
l Residual current characteristics: A, AC |
|
l Pole No.: 1P+N, |
|
l Tripping curve: B, C, D |
|
l Rated short-circuit capacity: 4.5kA |
|
l Rated current (A): 6, 10, 16, 20, 25, 32 |
|
l Rated voltage: 240V AC |
l Rated frequency: 50/60Hz |
l Rated residual operating current(mA): 0.03, 0.1, 0.3 |
l Tripping duration: instantaneous≤0.1s |
l Electro-mechanical endurance: 4000 cycles |
|
l Connection terminal: pillar terminal with clamp |
l Terminal Connection Height: H1=16mm H2=21mm |
|
l Over-voltage tripping: 280V±5% |
Construction and Feature
Provides protection against earth fault/leakage current, short-circuit and overload
High short-circuit capacity
Provides complementary protection against direct contact by human body.
Effectively protects electric equipment against insulating failure
Contact position indication
Provides protection against over-voltage
Provides comprehensive protection to household and commercial distribution
systems.
Wiring Diagram
