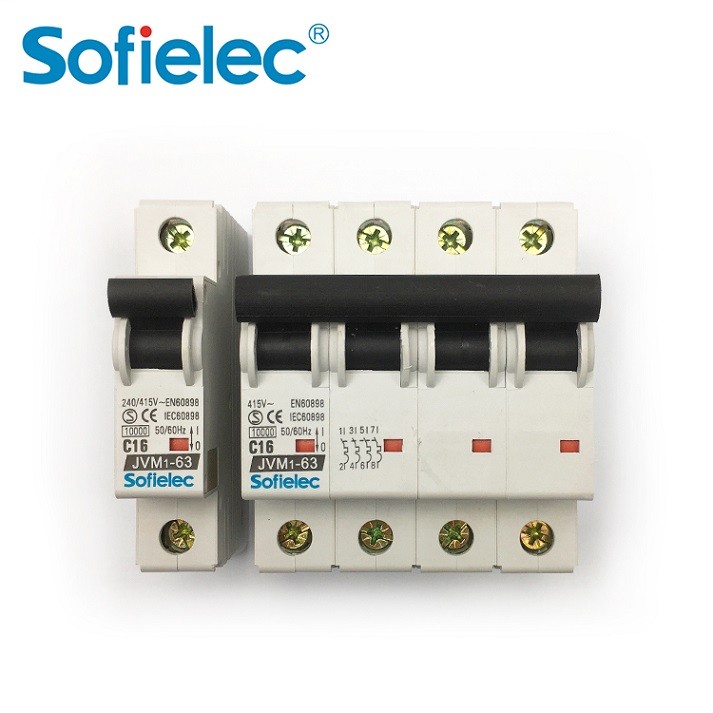

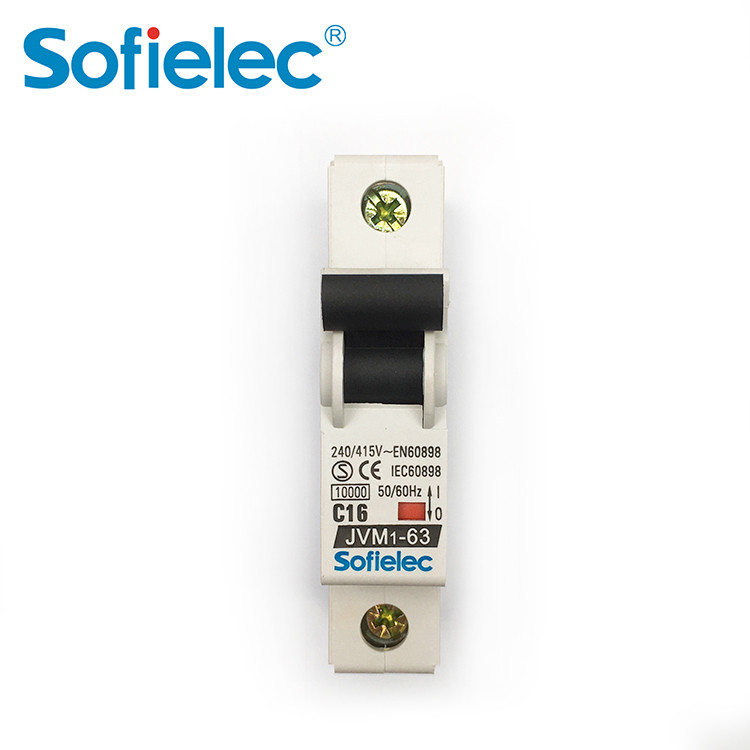

4.5kA JVM1-63 mcb circuit breaker
- Model
- JVM1-63
Item specifics
- Pole No
- 1, 1P+N,2, 3, 3P+N, 4
- Rated voltage
- AC 230/400V
- Rated current(A)
- 1,2,3,4,6, 10, 13, 16, 20,25,32, 40,50,63
- Tripping curve
- B,C,D
- Rated frequency
- 50/60Hz
- Energy limiting class
- 3
- Rated impulse withstand voltage
- 6.2kV
- Fastening torque
- 2 0Nm
- High short-circuit breaking capacity (Icn)
- 10kA
- Electro-mechanical endurance
- 10000
Review
Description
Technical Data
|
l PoleNo.: 1, 1P+N，2,3,3P+N，4 |
|
l Rated voltage: AC 230/400V |
|
l Rated current (A): 1, 2, 3, 4, 6, 10, 13, 16, 20, 25, 32, 40, 50, 63 |
|

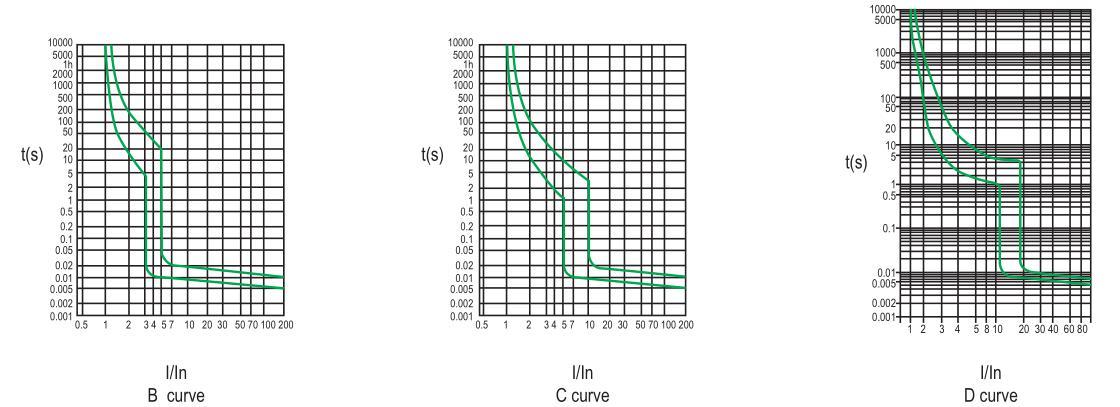

l Tripping curve: B, C, D |
|
l High short-circuit breaking capacity (lcn):10kA |
|
l Rated frequency: 50/60Hz |
|
l Energy limiting class: 3 |
l Rated impulse withstand voltage: 6.2kV |
l Electromechanical endurance: 10000 |
l Contact position indication |
l Fastening torque: 2.0Nm |
|
l Connection terminal:Screw terminal Pillar terminal with clamp |
|
l Connection capacity: Rigid conductor up to 25mm2 |
|
l Fastening torque: 2.0Nm |
|

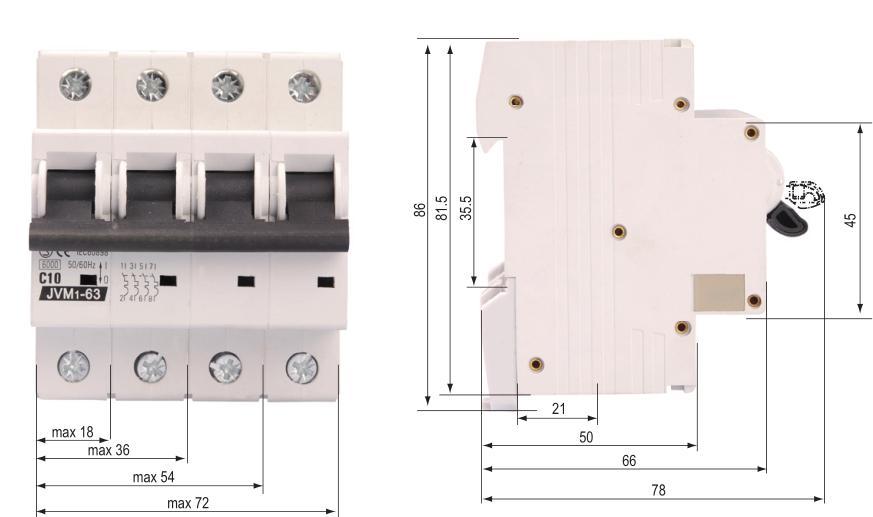

l Installation:On symmetrical DIN rail 35.5 mm Panel mounting |
|
l Terminal Connection Height: 21mm |
Protection against both overload and short circuit
High short-circuit capacity
Contact position indication
Applicable to terminal and pin/fork type busbar connection
Easy mounting onto 35mm DIN rail
