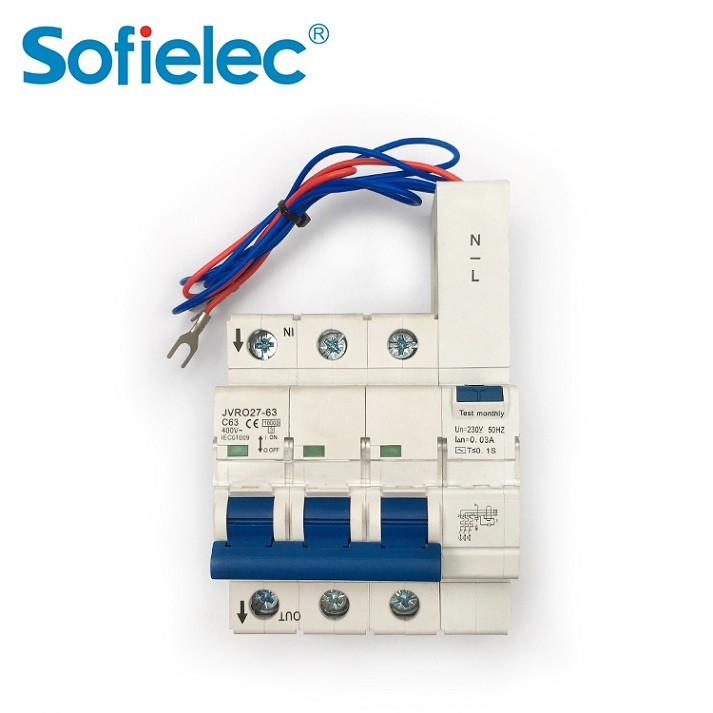

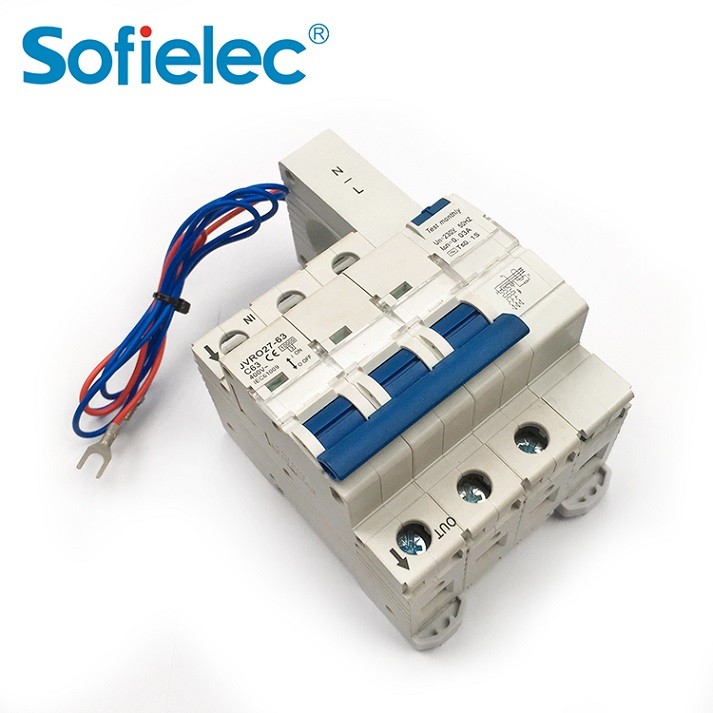

JVRO27-63 HOT SALE 1P+N 30mA RCBO circuit breaker
Item specifics
- Type
- Electronic type
- Residual current characteristics
- AC
- Pole No
- 1P.1P+N.2P.3P 3P+N, 4P
- Tripping curve
- B,C,D
- Rated shot-icuit capacity lcn
- 10kA
- Rated current (A)
- 1,2,3,4,6, 10, 16, 20,25, 32, 40, 50,63
- Rated voltage
- Rated voltage
- Rated frequency
- 50/60Hz
- Electro-mechanical endurance
- 4000 cycles
- Connection terminal
- pillar terminal with clamp
Review
Description
Technical Data
|
l Type: Electronic type |
|
l Residual current characteristics: AC |
|

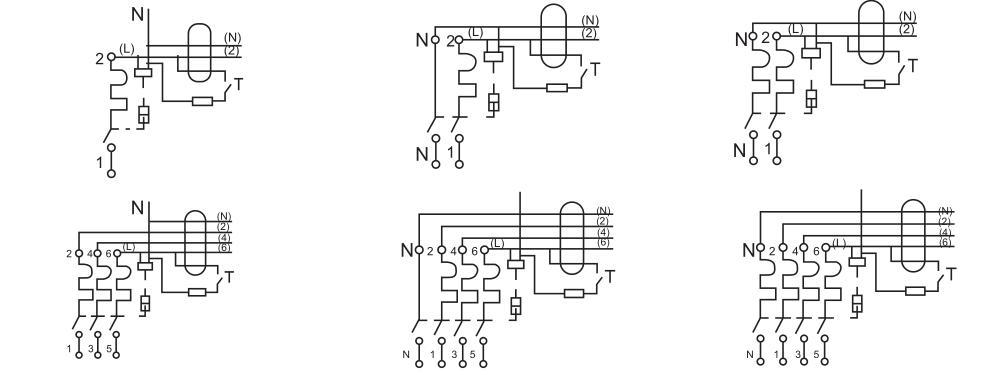

l Pole No.: 1P，1P+N，2P，3P，3P+N，4P |
|

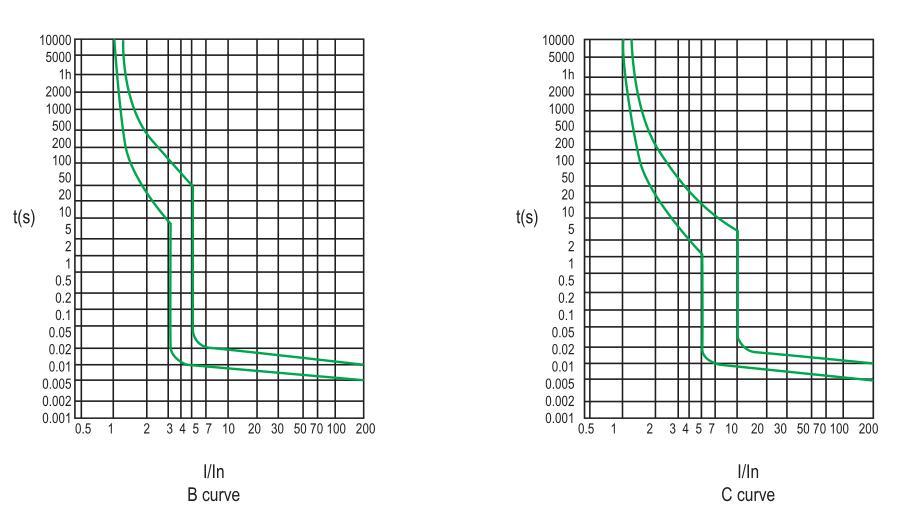

l Tripping curve: B, C, D |
|
l Rated short-circuit capacity Icn: 10kA |
|
l Rated current (A):1,2,3,4,6,10,16,20,25,32,40,50,63 |
|
l Rated voltage: 230/400V AC |
l Rated frequency: 50/60Hz |
l Rated residual operating current I△n: 0.03,0.1,0.3 |
l Tripping duration: instantaneous≤0.1s |
l Electro-mechanical endurance: 4000 cycles |
l Connection terminal: pillar terminal with clamp |
l Connection capacity: Rigid conductor 25mm² |

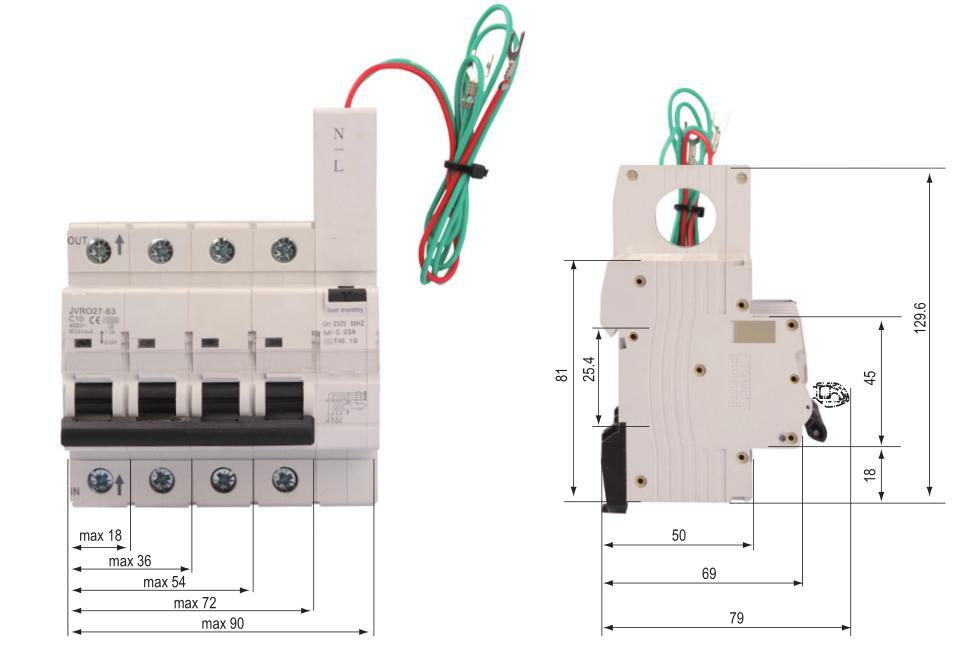

l Installation:On symmetrical DIN rail 35mm Panel mounting |
Construction and Feature
Provides protection against earth fault/leakage current, short-circuit and overload
High short-circuit capacity
Provides complementary protection against direct contact by human body.
Effectively protects electric equipment against insulating failure
Contact position indication
Provides protection against over-voltage
Provides comprehensive protection to household and commercial distribution
systems.
