B2 series Electromagnetic Mini Circuit Breaker,Hydraulic Electromagnetic Circuit Breaker
- Model
- B2

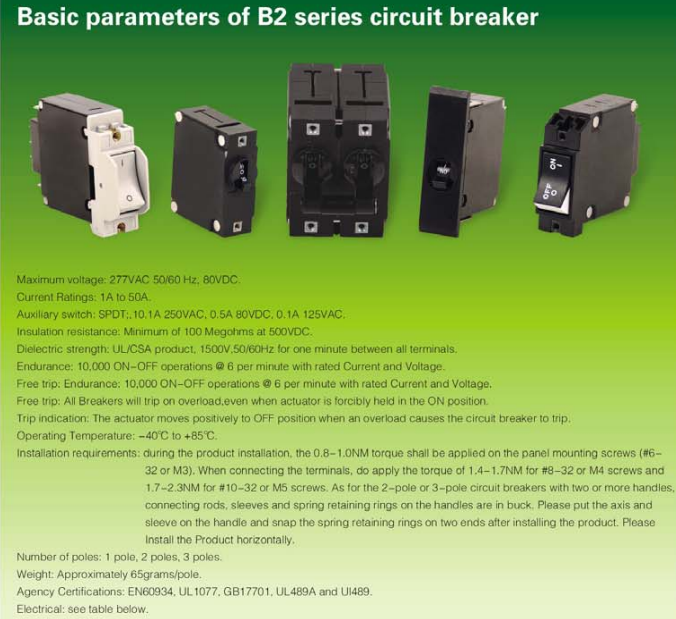

Item specifics
- Maximum voltage
- 277V AC 50/6Hz,80V DC
- Current Ratings
- 1A to 50A
- Insulation resistance
- Minimum of 100 Megohms at 50V DC
- Operating Temperature
- -40℃ to +85℃
- Number of poles
- 1,2,3
- Weight
- Approximately 65grams/pole
- Agency Certifications
- EN60934,UL1077,GB17701,and UL489A

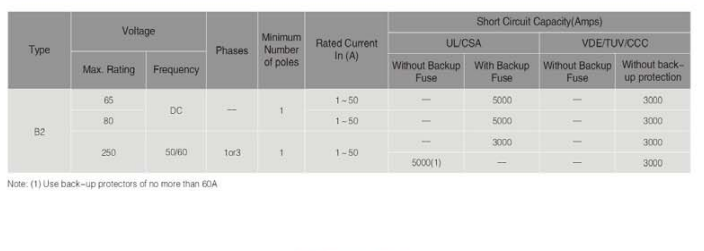

- Electrical
- see table below
- SERIES
- B2 SERIES
Review
Description

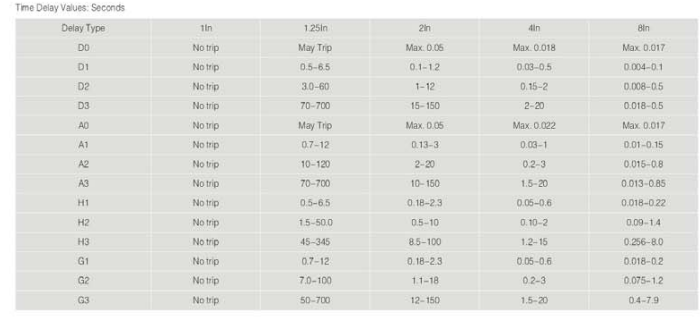

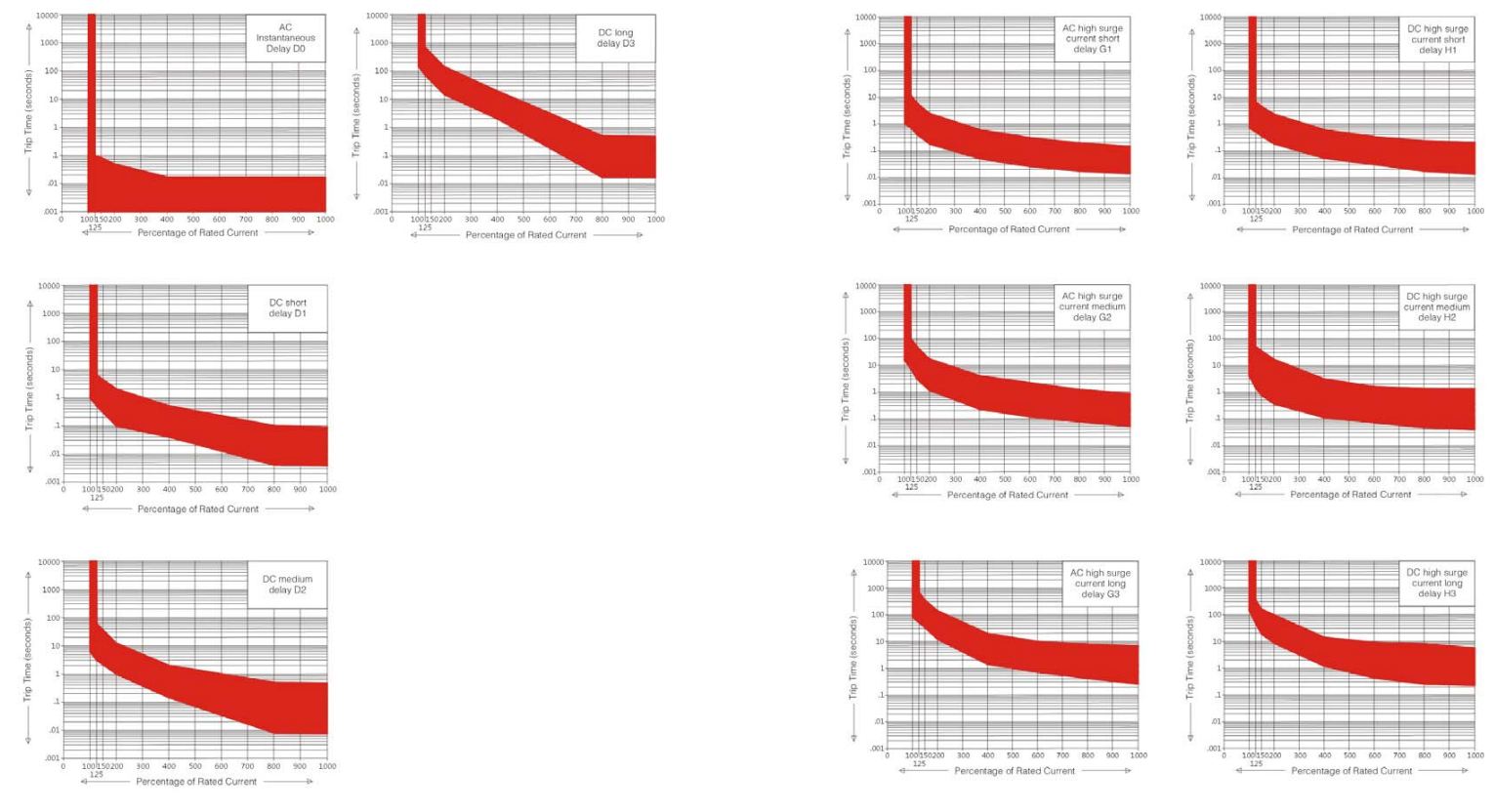

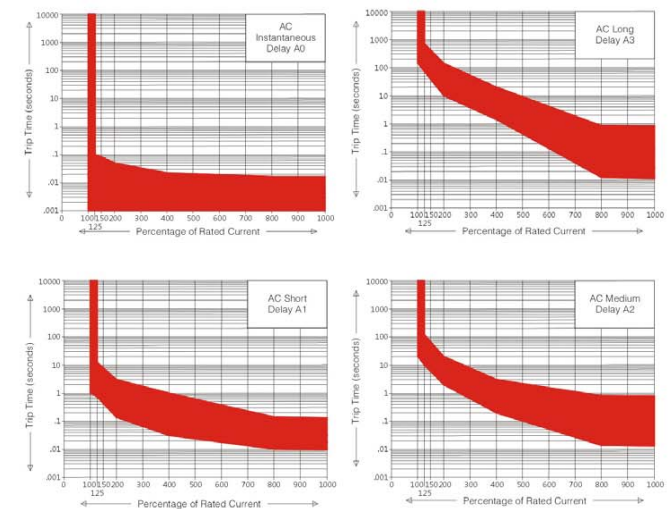

B2 and B3 Delay Curve Diagram

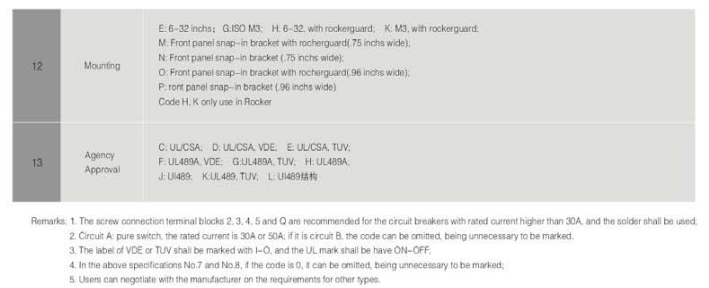

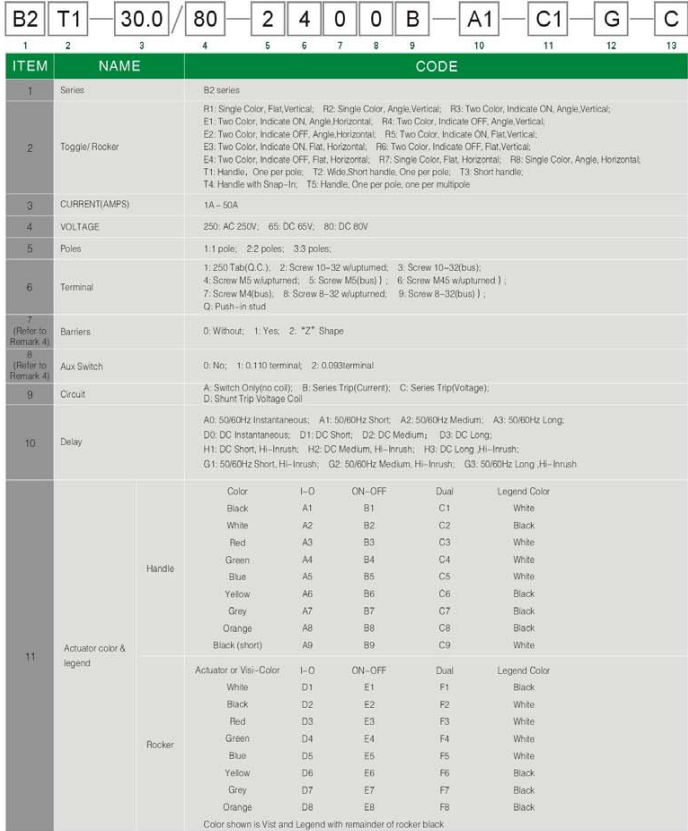

Specification of B2 series circuit breaker and code implication(for selection)

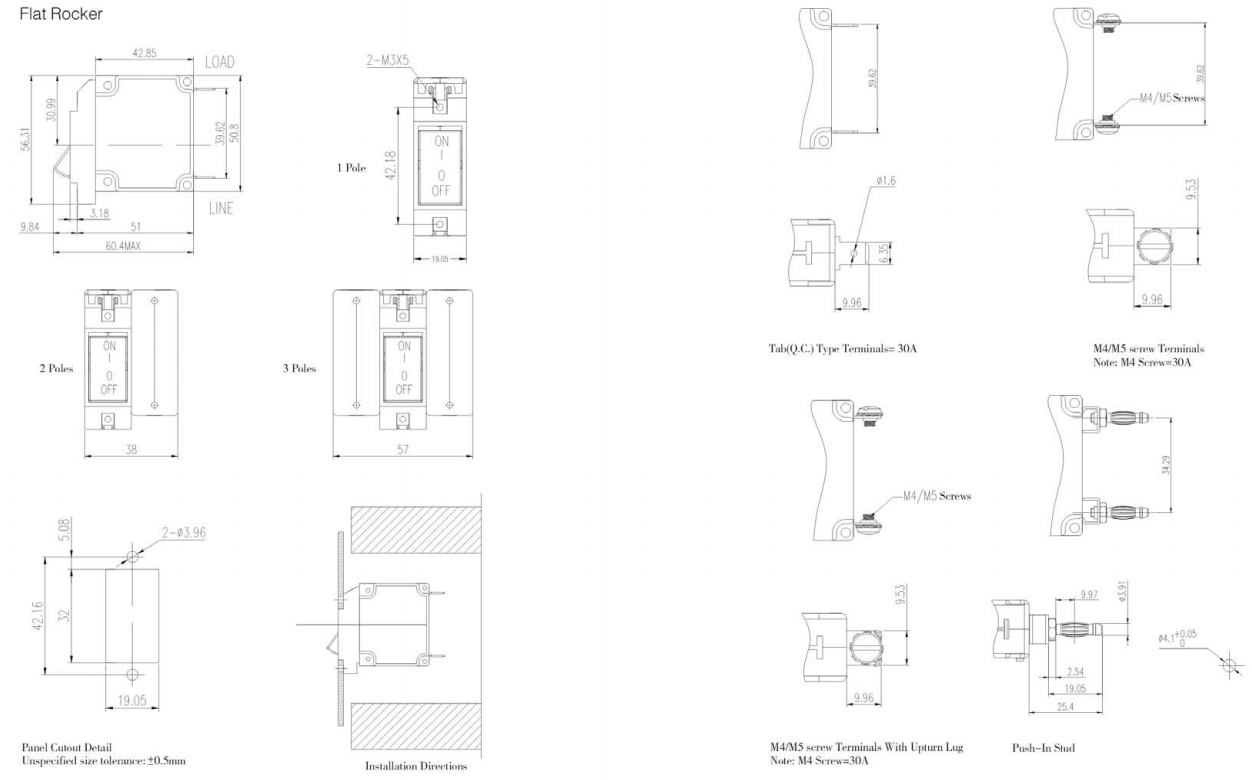

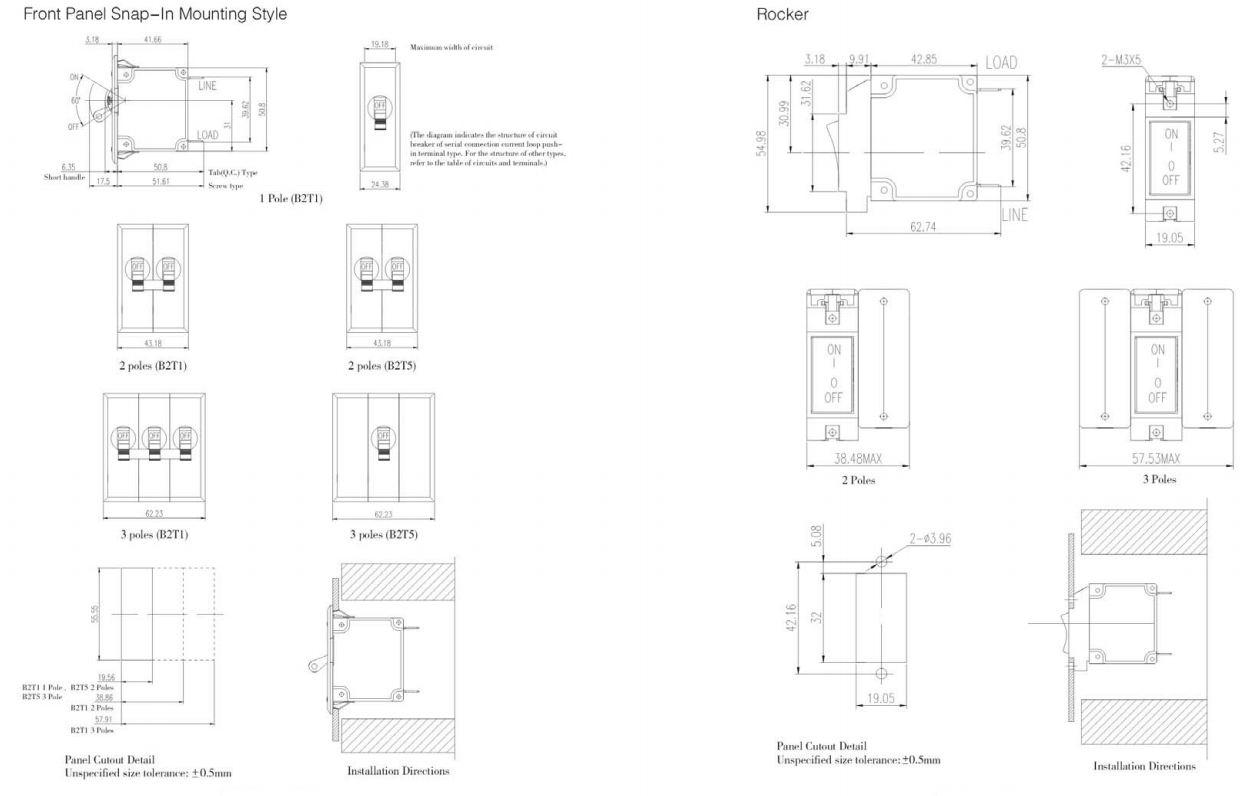

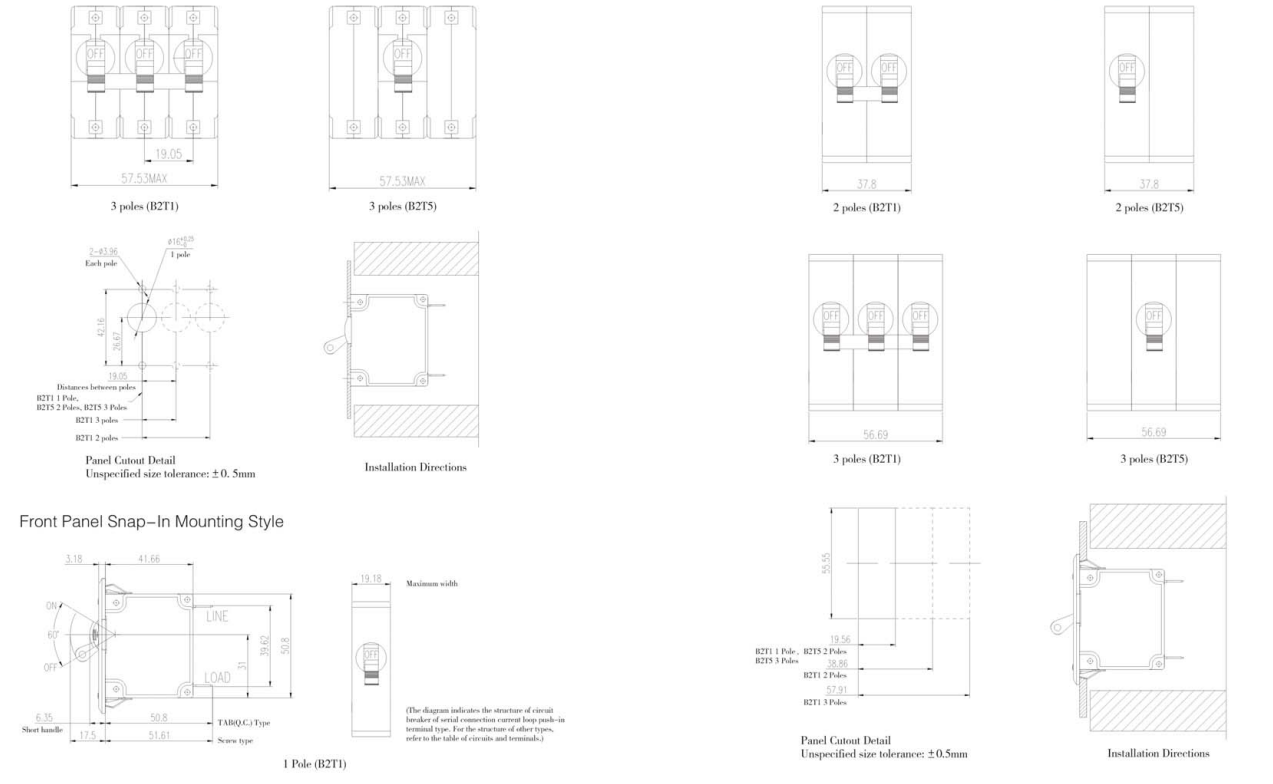

B2 Series Circuit Breaker - Form&Fit Drawings
