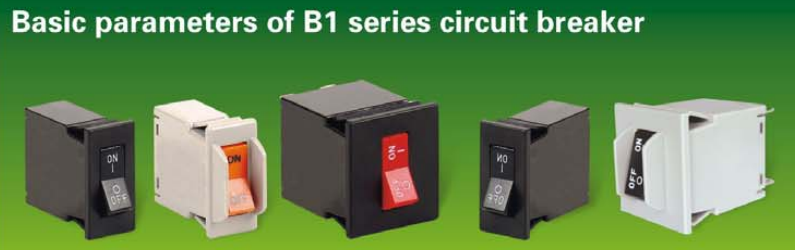

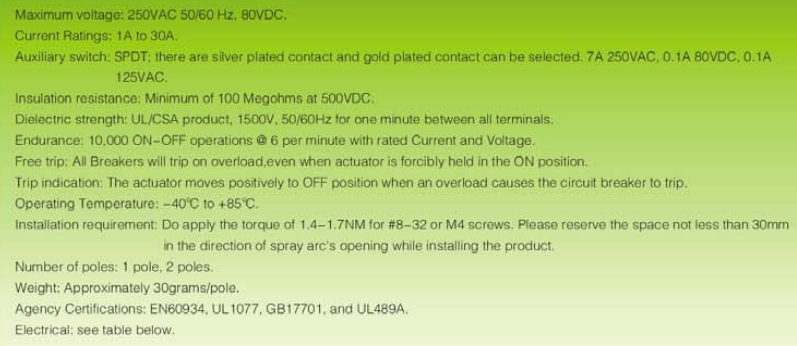

Basic parameters of B1 series circuit breaker , Electromagnetic Mini Circuit Breaker
- Model
- B1
Item specifics
- Maximum voltage
- 250V AC 50/6Hz,80V DC
- Current Ratings
- 1A to 30A
- Insulation resistance
- Minimum of 100 Megohms at 50V DC
- Operating Temperature
- -40℃ to +85℃
- Number of poles
- 1,2
- Weight
- Approximately 30grams/pole
- Agency Certifications
- EN60934,UL1077,GB17701,and UL489A
- Electrical
- see table below
- SERIES
- B1 SERIES
- ACTUATOR
- R1:ROCHER(WITH ANGLE);R2:ROCHER(FLAT)
- CIRCURT SO
- SWITCH ONLY,USED CURRENT 30
Review
Description

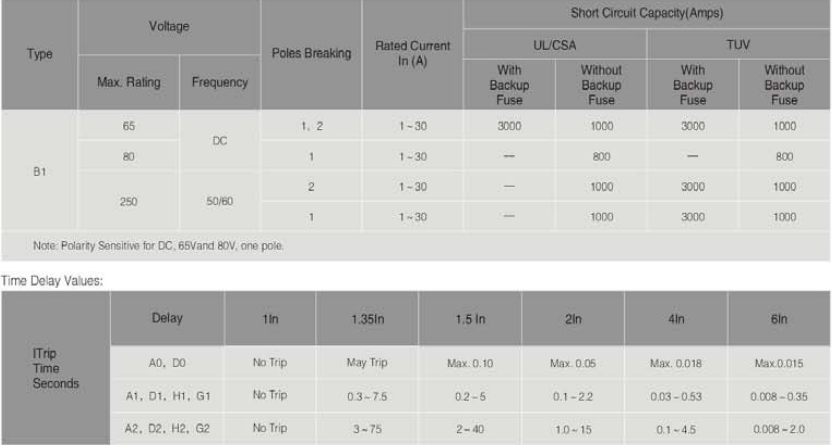

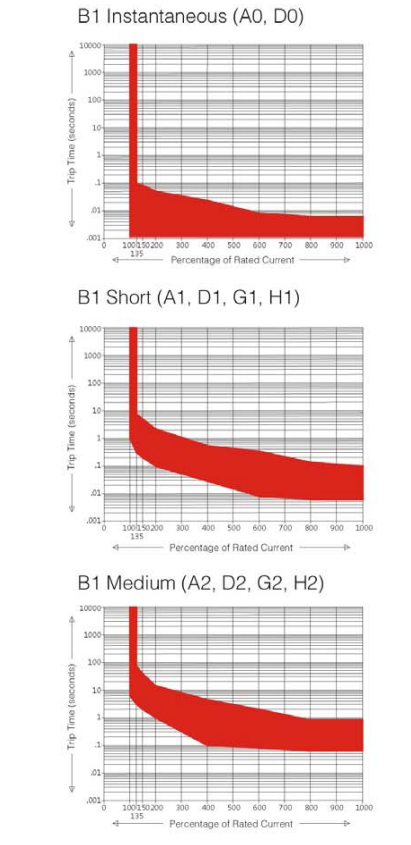

B1 Time Delay

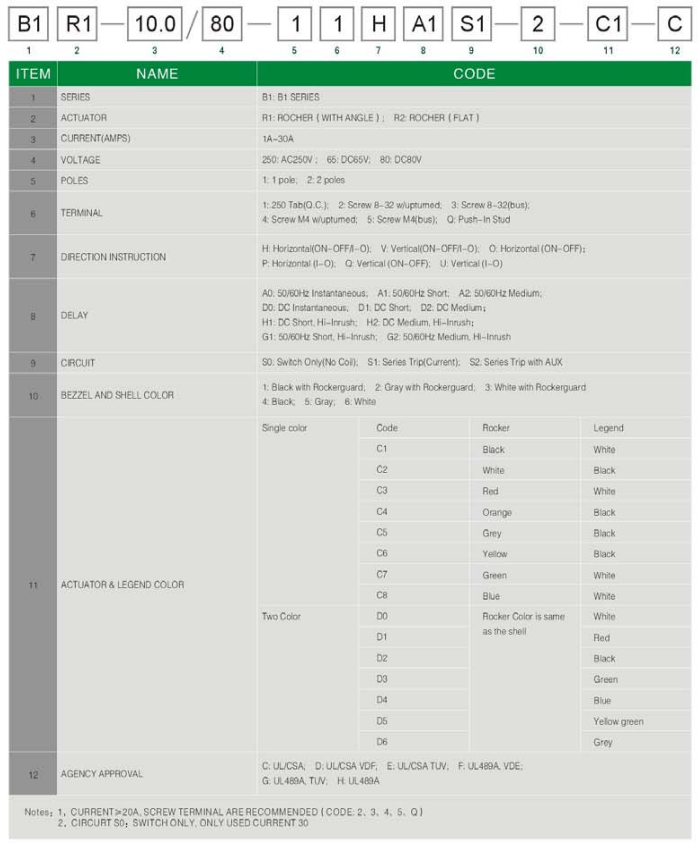

Specification of B1 series circuit breaker and code implication(for selection)

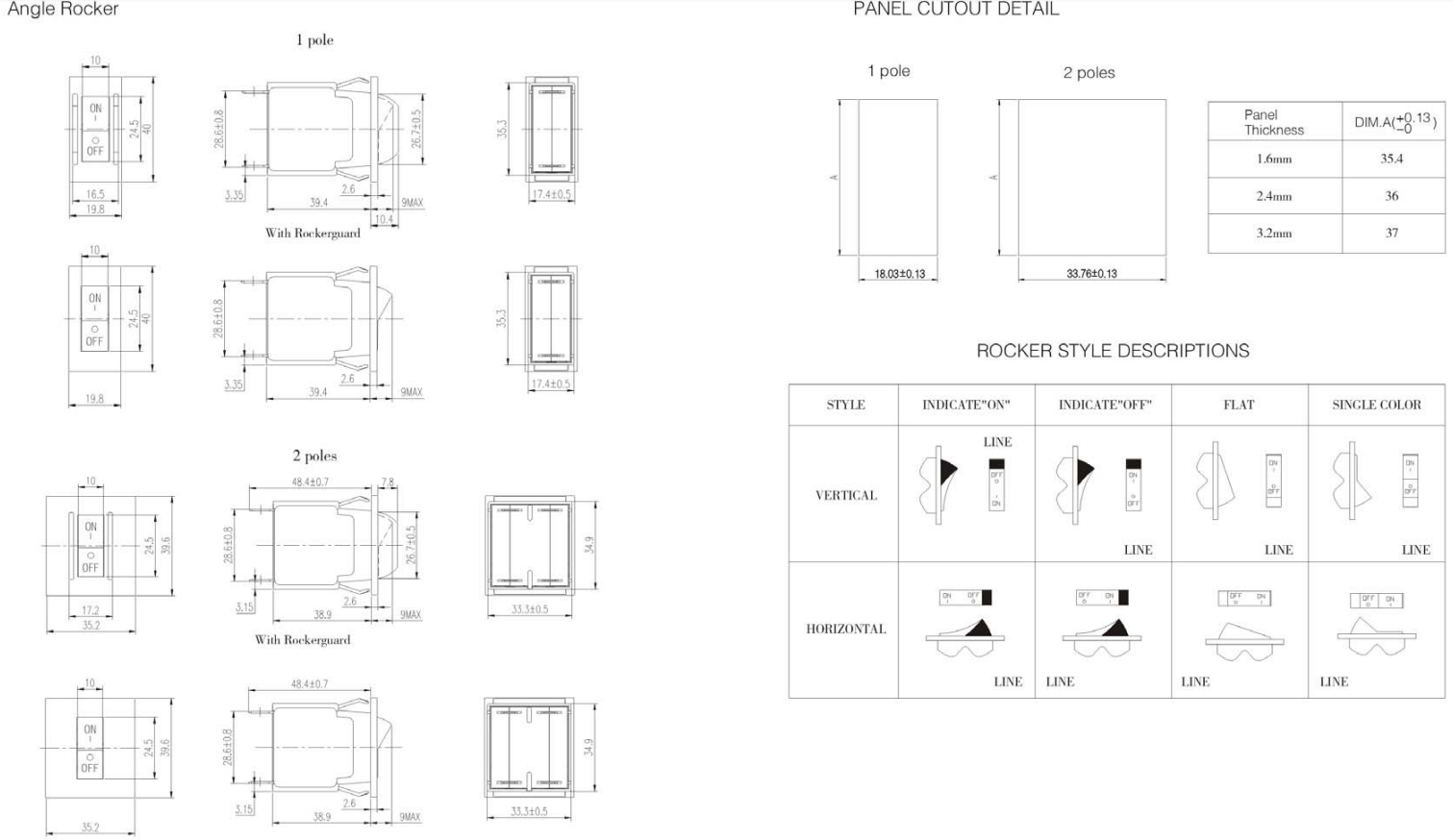

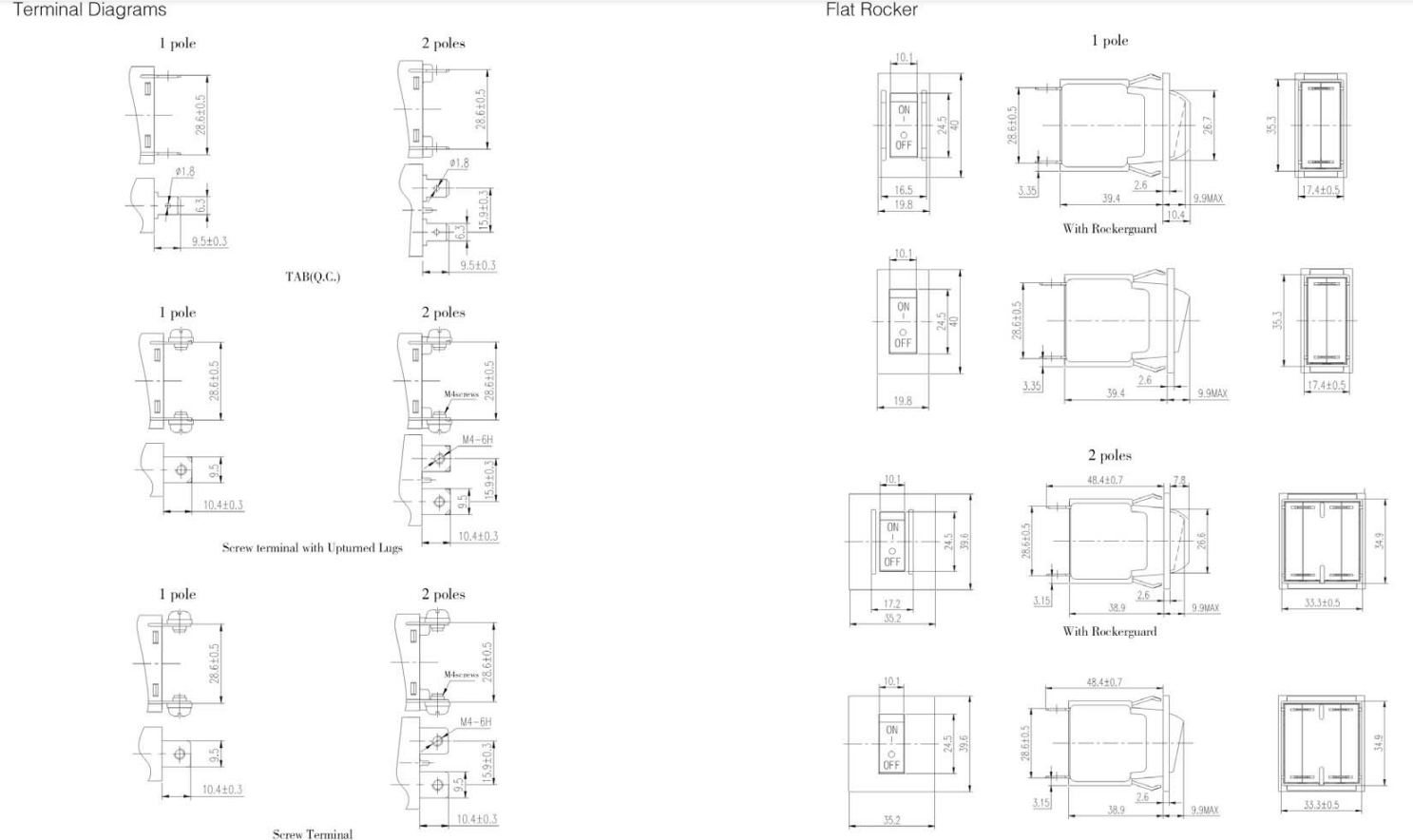

B1 Series Circuit Breaker - Form&Fit Drawings
