England type fast wiring safe and reliable isolating switch
Item specifics
- Pole No
- 1,2,3, 4
- Rated current(A)
- 16,25,40,63,125A
- Rated voltage
- AC 230/400V
- Rated frequency
- 50/60Hz
- Rated short-circuit making capacity
- 6kA
- Rated withstand current
- 1kA within 1sec
- Electro-mechanical endurance
- 10000 cycles
- Product name
- 63a isolator switch
- Certificate
- CE CB
- website
- www.sofielec.com
Review
Description
Technical Data
|
l Pole No.: 1, 2, 3, 4 |
|
l Rated current(A): 63, 80, 100, 125 |
|
l Rated voltage: AC 230/400V |
|
l Rated frequency: 50/60Hz |
|
l Rated short-circuit making capacity: 6kA |
|
l Rated withstand current: 1200A(Within 1Sec) |
|
lRated making and breaking capacity: 2500A |
l Degree of protection:Not less than 10000 times |
l Connection capacity:Rigid conductor 35mm2 |
l Product name: XZGL-125 |
Construction and Feature
It provides the switching capacity with load operation
Many current specifications and large frame size are provided for your selection
There is color signal indication window for indicating the contact position state.
Application
The switch disconnector has high dynamic and thermal stability, has opening and closing state indication. The product is suitable for distribution and control circuits of AC50Hz/60Hz and voltage up to and including 400V, is mainly used as main switch for terminal combination electrical equipment.

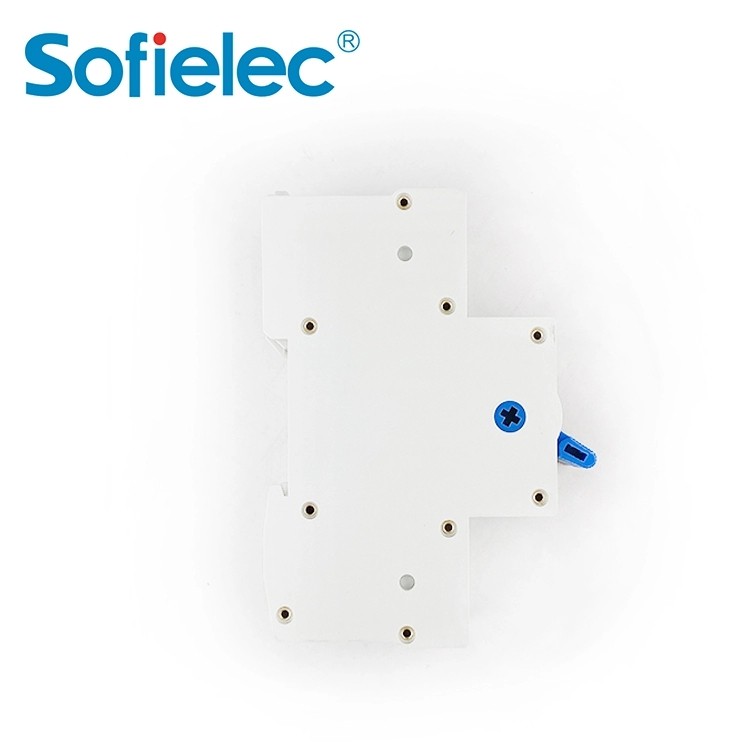

Side
