DNH1 630A Fuse switch Disconnector
- Model
- DNH1
Item specifics
- Frequency
- 50/60Hz
- Pole
- 2P 3P
- Mechanism
- 1700 1400 800
- Positive
- IP20 IP30
- Ambient temperaturre
- -5~+55℃
- Working model
- Continuous uninterrupted
- Operate
- Handle
- Installation from
- Vertical
Review
Description
Product overview
DNH1 series fuse switch disconnectors with load operation is applied to rated current 40A~630A, can be mounted on the bus, and can also be mounted tothe mounting plate.Having the upper and lower end of the input and output structu re. with blade introduced and arc extinguish device. switch with occasional closed test holes in cover, built-in signal switching, detection switch, optional fuse monitors.and also do the knife switch use.

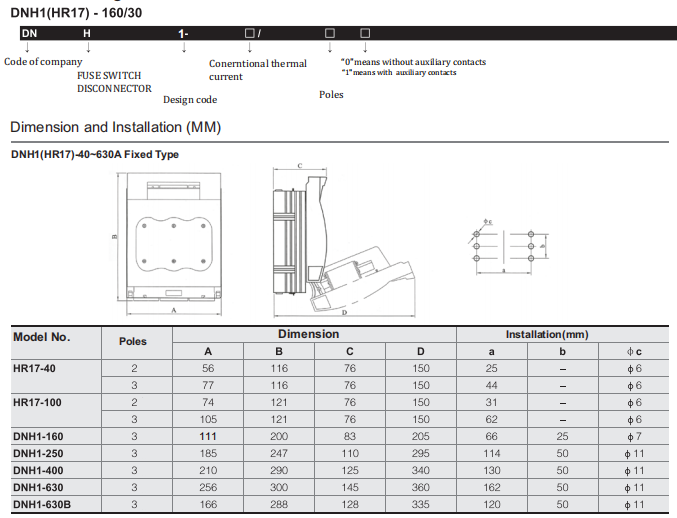

Model Meaning

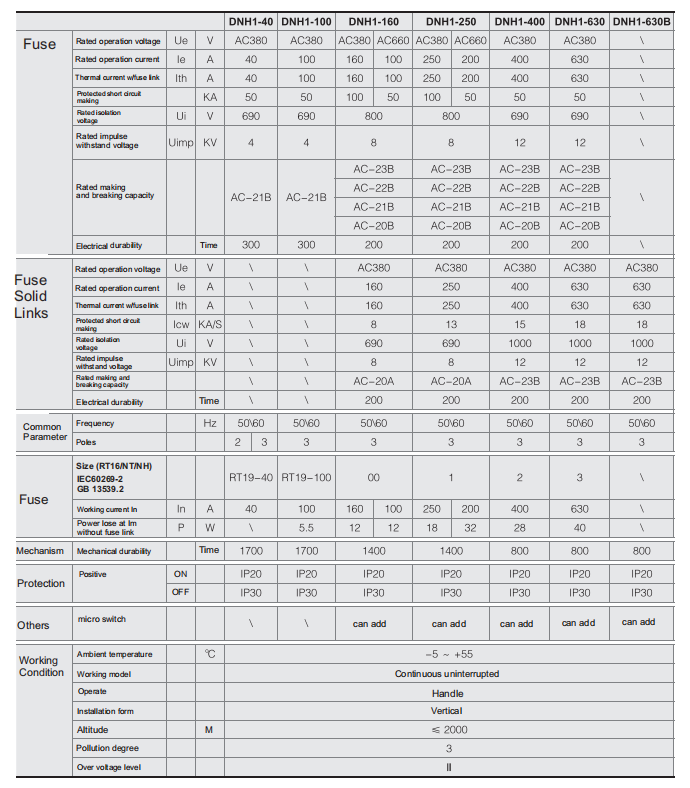

Principal technical specfication

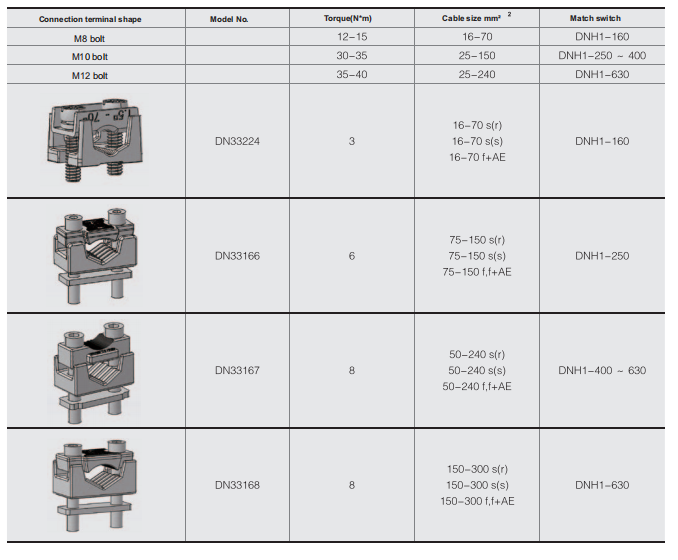

Cable Connection Terminal
