JVM16-63 Automatic 32amp 63amp over-voltage protection DC series low voltage circuit breaker
- Model
- DC JVM16-63

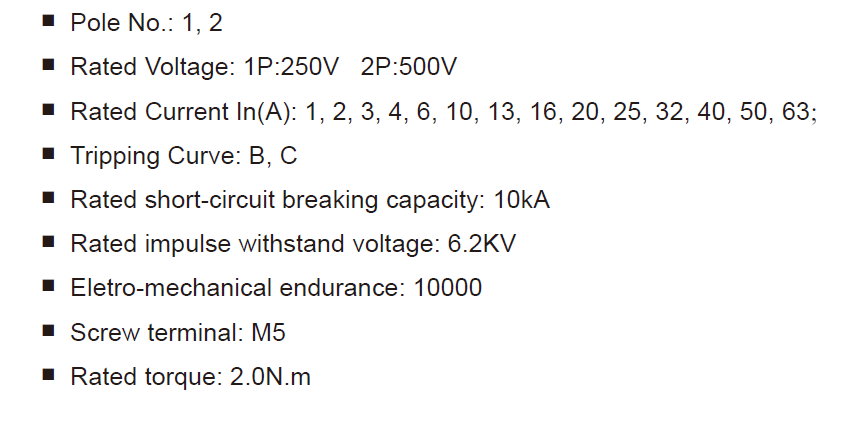

Item specifics
- Pole No
- 1,2
- Rated Voltage
- 1P:250V 2P:500V
- Rated Current in(A)
- 1,2,3,4,6,10,13,16,20,25,32,40,50,63
- Tripping Curve
- B,C
- Rated short-circuit breaking capacity
- 10KA
- Rated impluse withstand voltage
- 6.2KV
- Eletro-mechanical
- 10000
- Screw terminal
- M5
- Rated torque
- 2.0N.m
Review
Description
Construction and Feature

The state-of-art design
Elegant appearance; cover and handle in arc shape make comfortable operation.
Contact position indicating window
Transparent cover designed to carry label.
Handle central-staying function for circuit fault indicating
In case of overload, to protected circuit, MCB handle trips and stays at central
position, which enables a quick solution to the faulty line. The handle cannot stay in
such position when operatedmanually.
High short-circuit capacity
High short-circuit capacity 10KA for whole range and 15kA capacity for current rating
up to 40A thanks to the powerful electric arc extinguishing system.
Long electrical endurance up to 6000 cycles thanks to quick making mechanism.
Handle padlock device
MCB handle can be locked either at “ON” position or at“OFF” position to
prevent unwanted operation of the product.
Screw terminal lock device
The lock device prevents unwanted or casual dismounting of connected terminals.
Technical Data

Overall & Installation Dimensions

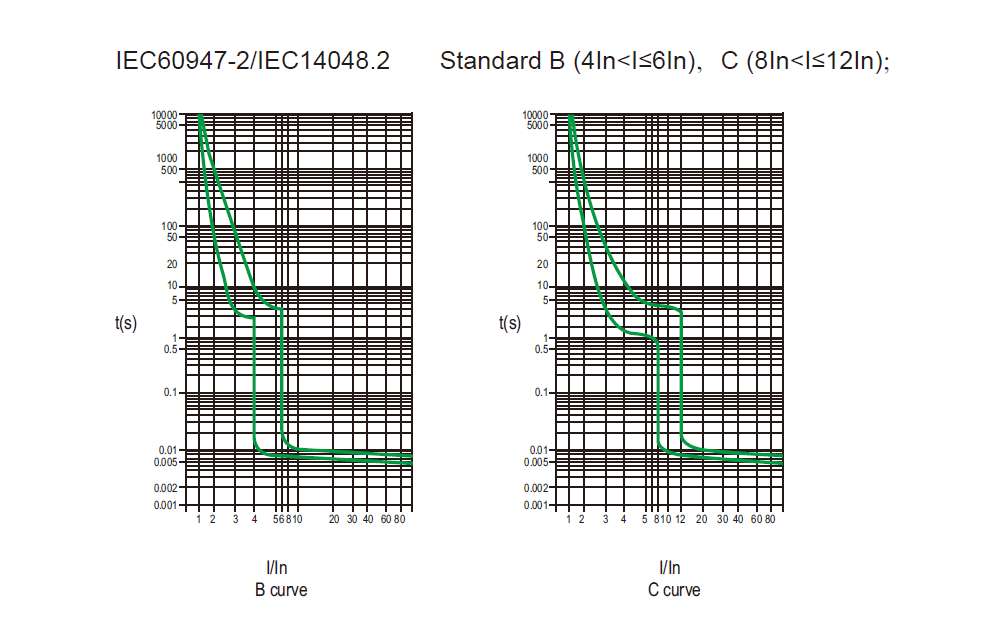

Characteristic Curve

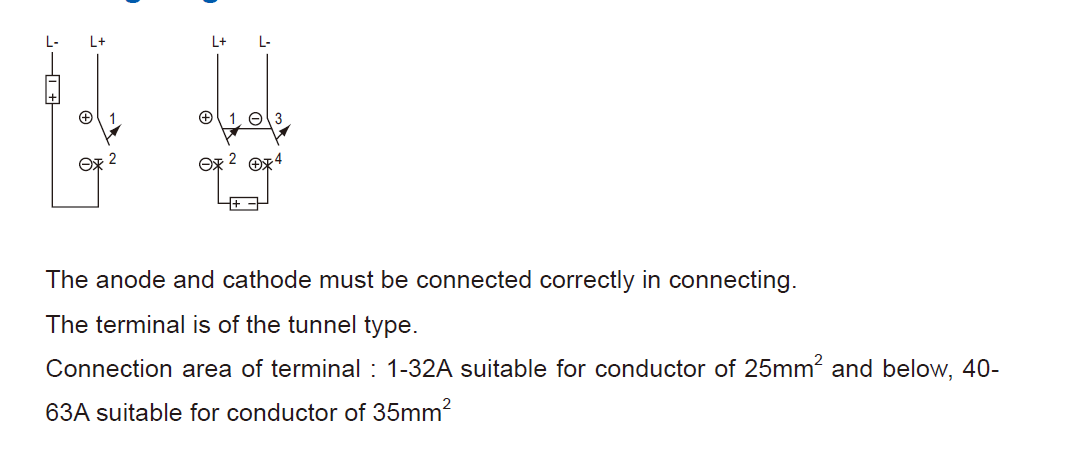

Wiring Diagram

Overload Current Protection Characteristics
