10KA DC series MCB non-polarized, 1P,2P,3P,4P up to 63Amp, SAA,TUV,CB approved. PV SOLAR busbar,
10KA DC series MCB non-polarized, 1P,2P,3P,4P up to 63Amp, SAA,TUV,CB approved. PV SOLAR busbar,
10KA DC series MCB non-polarized, 1P,2P,3P,4P up to 63Amp, SAA,TUV,CB approved. PV SOLAR busbar,
10KA DC series MCB non-polarized, 1P,2P,3P,4P up to 63Amp, SAA,TUV,CB approved. PV SOLAR busbar,
10KA DC series MCB non-polarized, 1P,2P,3P,4P up to 63Amp, SAA,TUV,CB approved. PV SOLAR busbar,
10KA DC series MCB non-polarized, 1P,2P,3P,4P up to 63Amp, SAA,TUV,CB approved. PV SOLAR busbar,

10KA DC series MCB non-polarized, 1P,2P,3P,4P up to 63Amp, SAA,TUV,CB approved. PV SOLAR busbar,

Model
JB Type

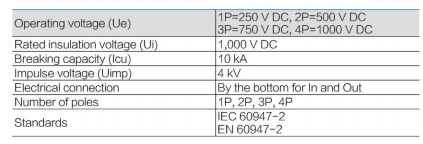

Item specifics

Rated insulation voltage
1000V DC
Breaking capacity
10kA
Impluse voltage
4kV
Electrical connection
By the bottom for In and Out
Number of poles
1P 2P 3P 4P

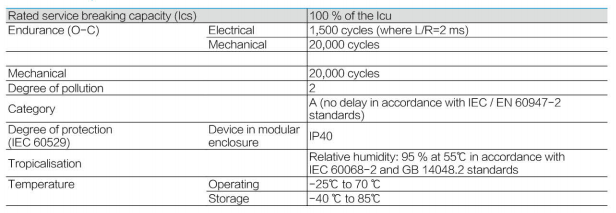

Rated service breaking capacity
100 % of the Icu
Mechanical
20,000 cycles
Degree of pollution
2
Category
A (no delay in accordance with IEC / EN 60947-2 st
Tropicalisation
Relative humidity: 95 % at 55°C in accordance with

Review

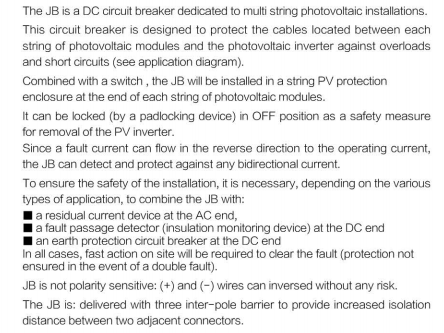

Description

Construction and Feature

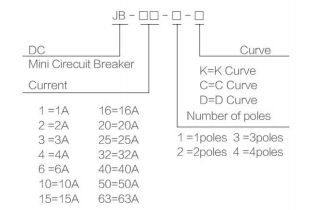

Meaning and classification models
Main characteristics
Characteristic Curve
Power Coumption
