ATMS Asymmetrical Flasher Modular Timer Relay
- Model
- ATMS4
Item specifics
- Supply Voltage
- 24~ 240VAC/DC 50-60Hz
- Time Range
- 0.05S ~ 60S, 0.5S~ 10M, 0.5M ~ 10H (Can be customized according to customer requirements)
- Time setting
- potentiometer
- Time Deviation
- 5% mechanical setting
- Repeat Accuracy
- 0.2% set value stability
- Consumption
- AC0.7-3 VA, /DC0.5- 1.7W
- Supply Indication
- Green Led
- Output Indication
- Red Led
- Reset time
- Max.200mS
- Operating temperature
- -10~ +50
Review
Description
Features

Function

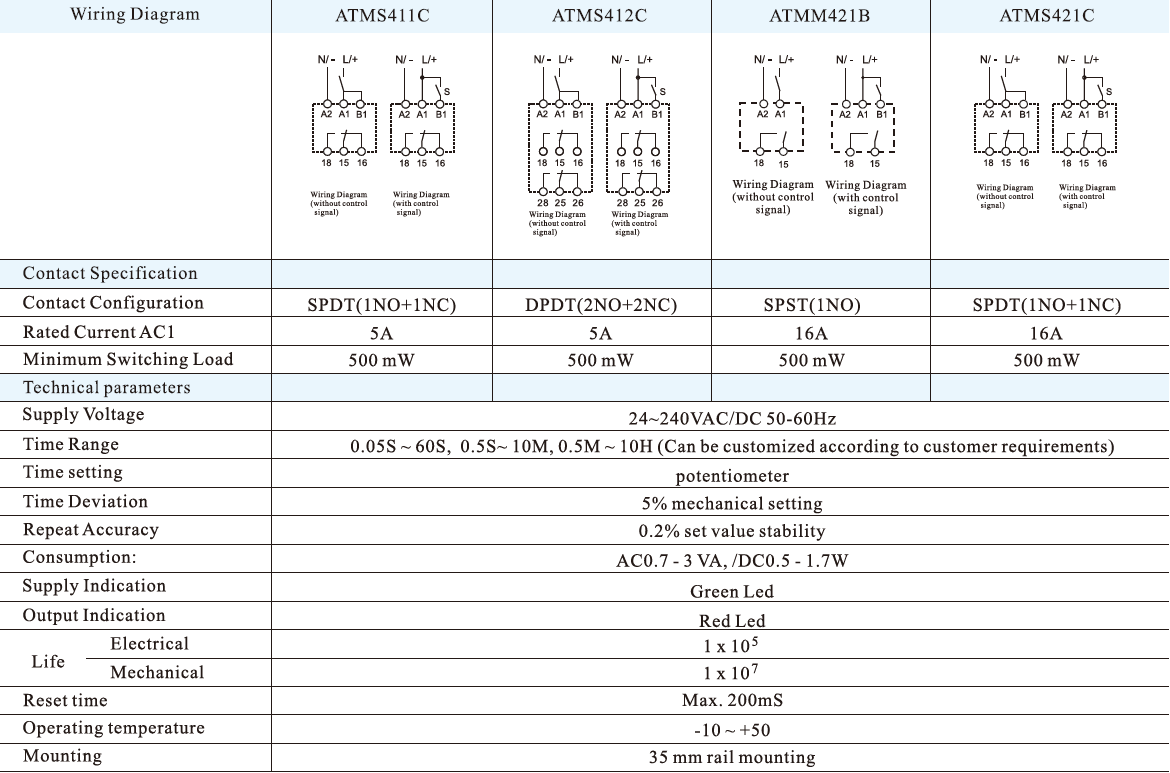

Technical date

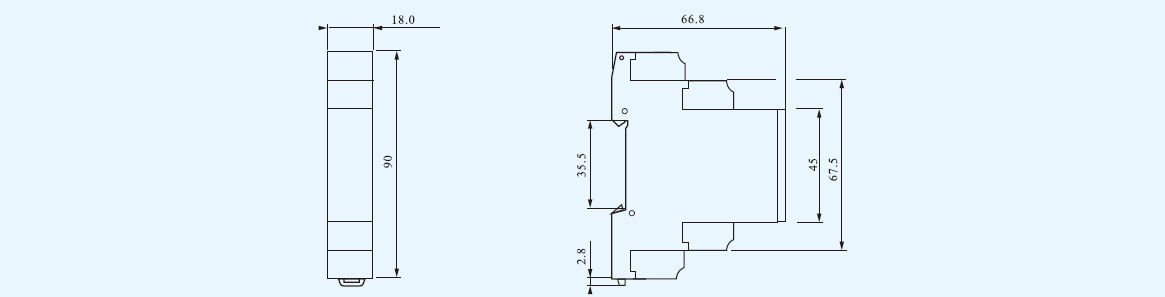

Dimensions

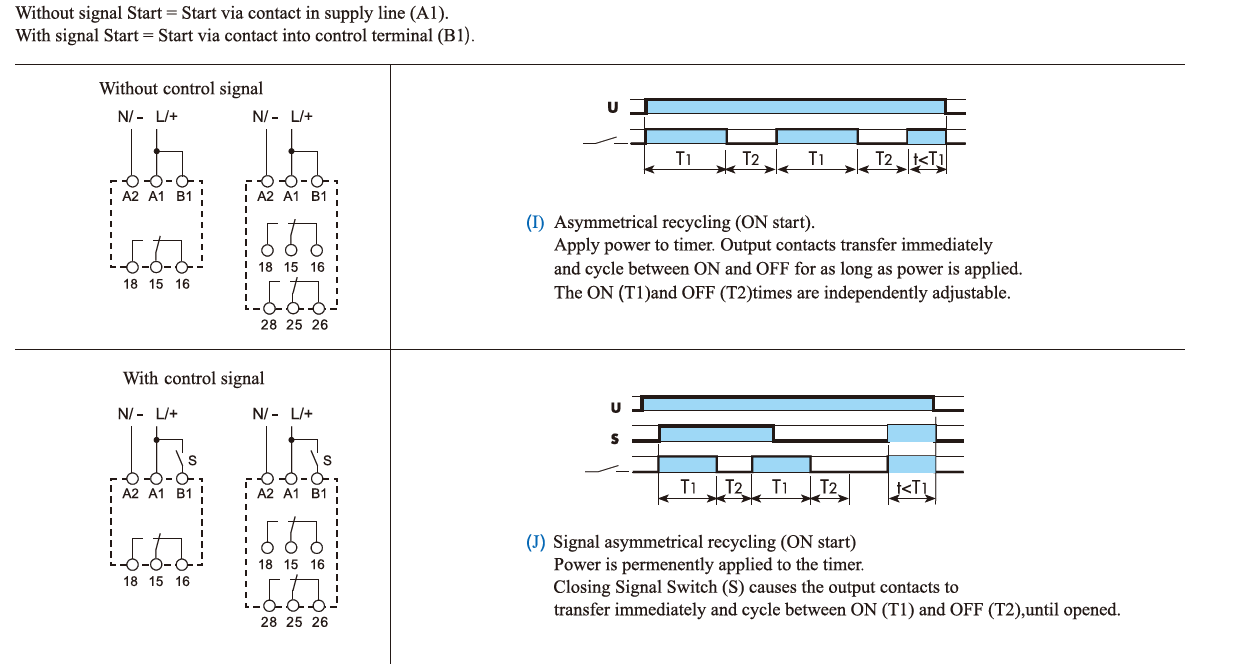

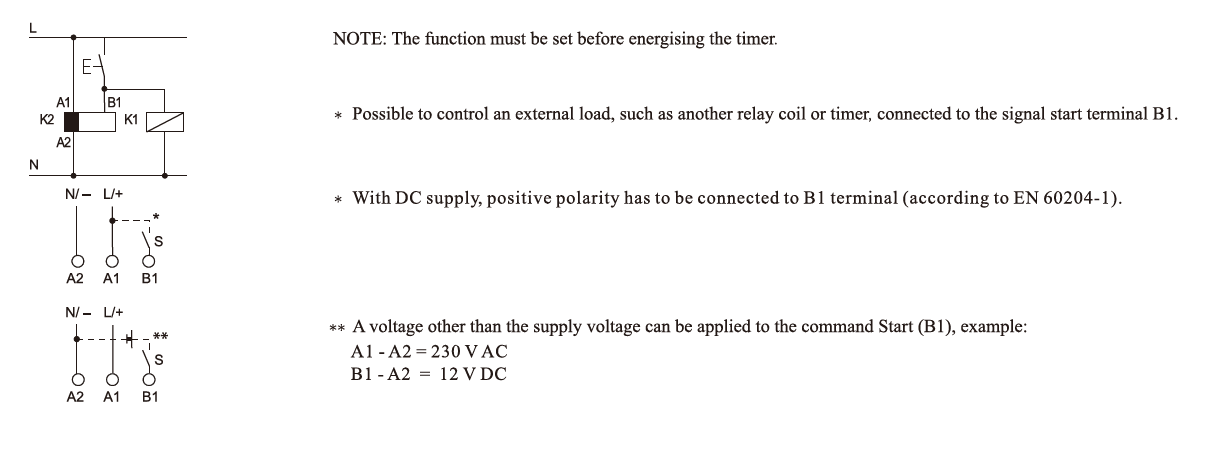

Wiring Diagrams
