ATS16 Electronic staircase timer 16A Multi-function
- Model
- ATS16
Item specifics
- Contact configuration
- 1NO(SPST-NO)
- Rated current/Maximum peak current
- 16A
- Rated voltage/Maximum switching voltage
- 230V AC
- Rated load AC1
- 3700 VA
- Rated load Ac15 (230 V AC)
- 750 VA
- Minimum switching load mW (V/mA)
- 1000(10/10)
- Standard contact material
- AgSnO2
- Nominal voltage (UN)
- 230V AC(50/60Hz)
- Rated power
- 3VA/1.2W
- Delay setting
- 0..20min
- Maximum impulse duration
- continuous
- Ambient temperature range
- -10~ +60
Review

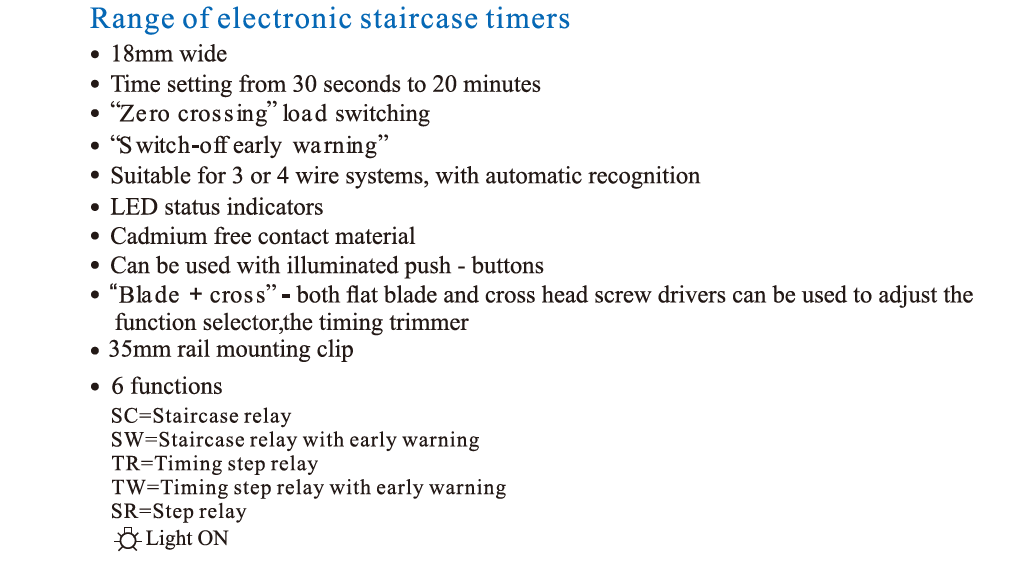

Description
Function

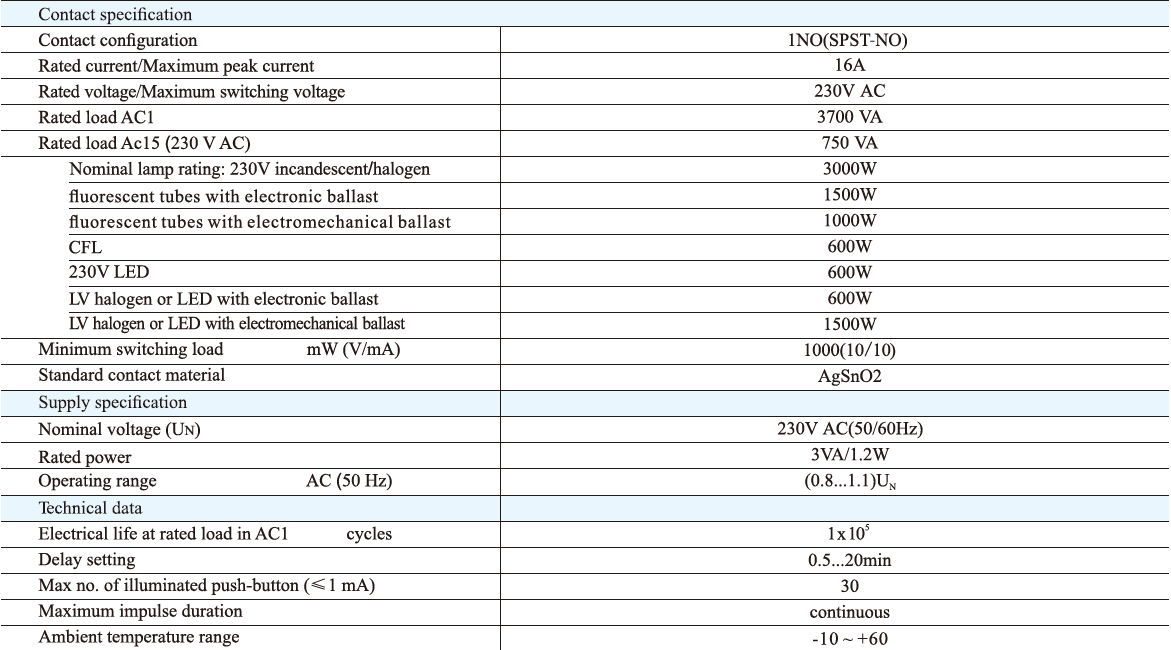

Technical date

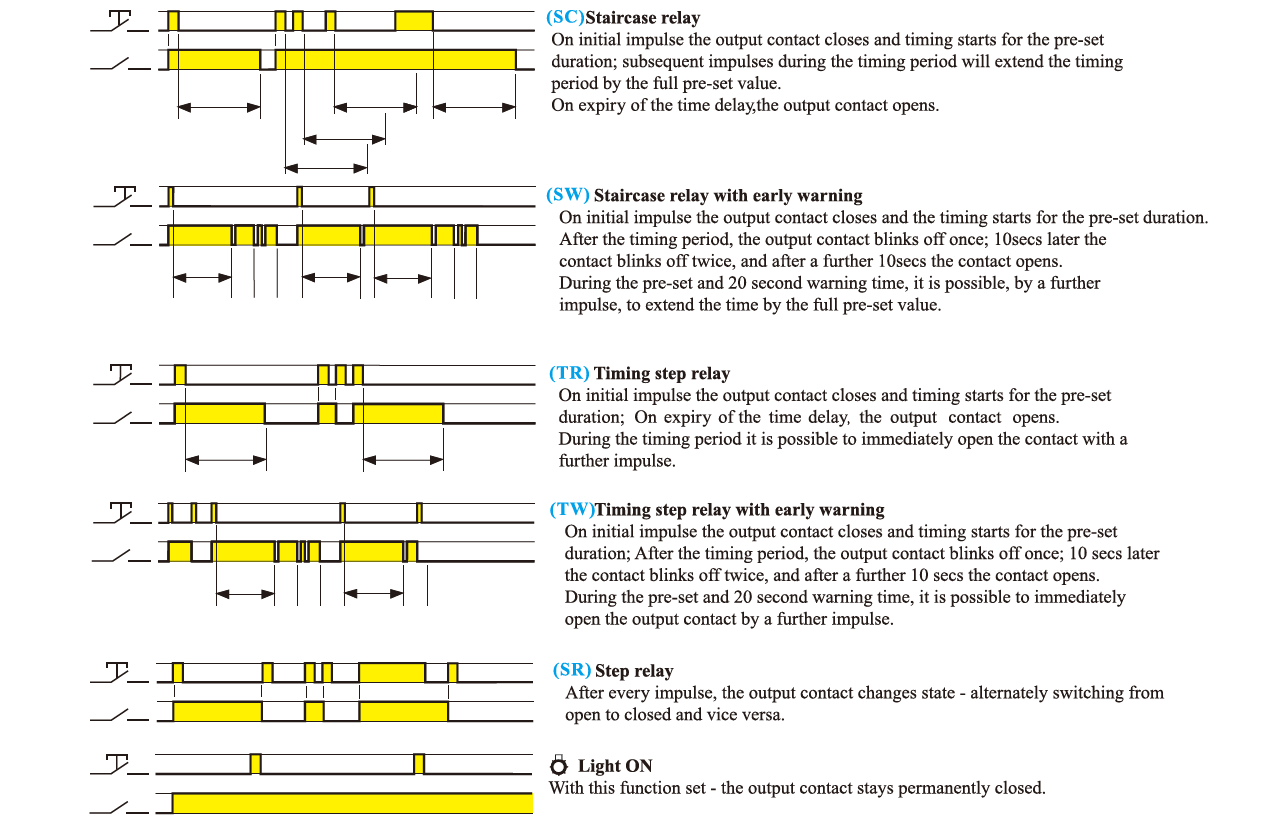

Functions

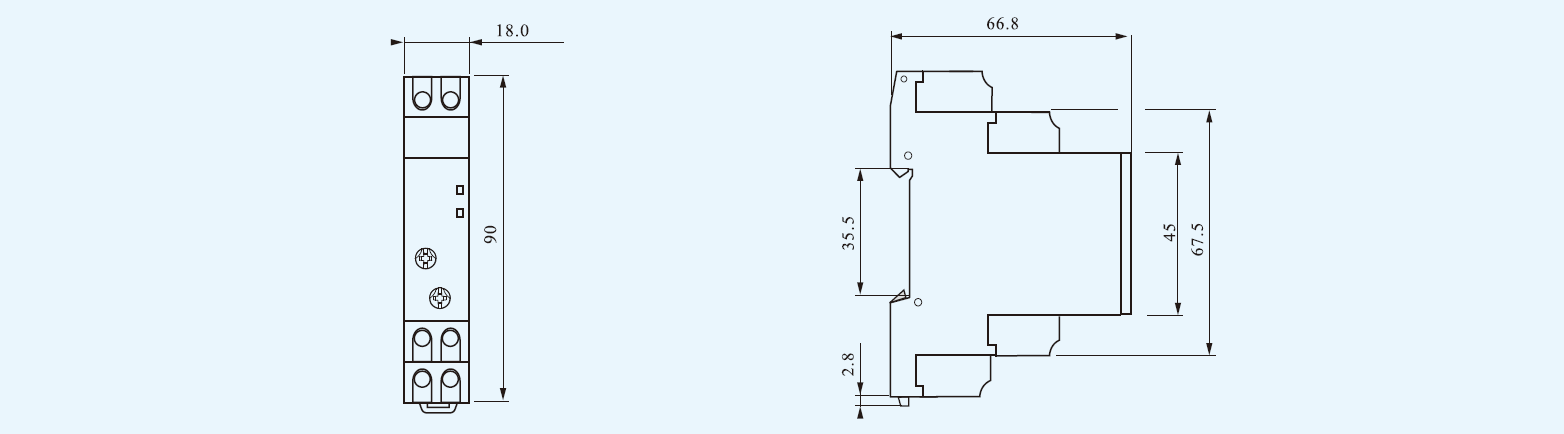

Dimensions

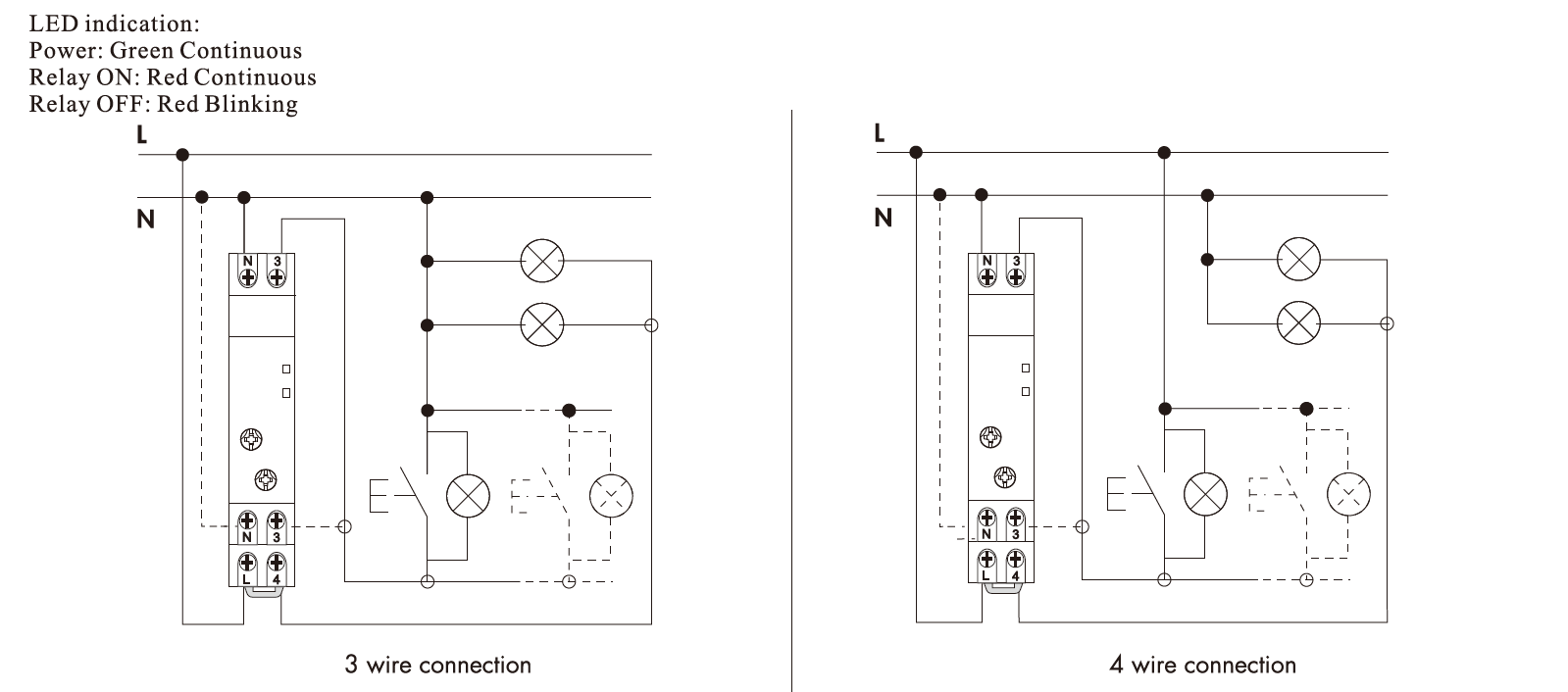

Wiring Diagrams
