ATHC series Digital Programmable Time switch

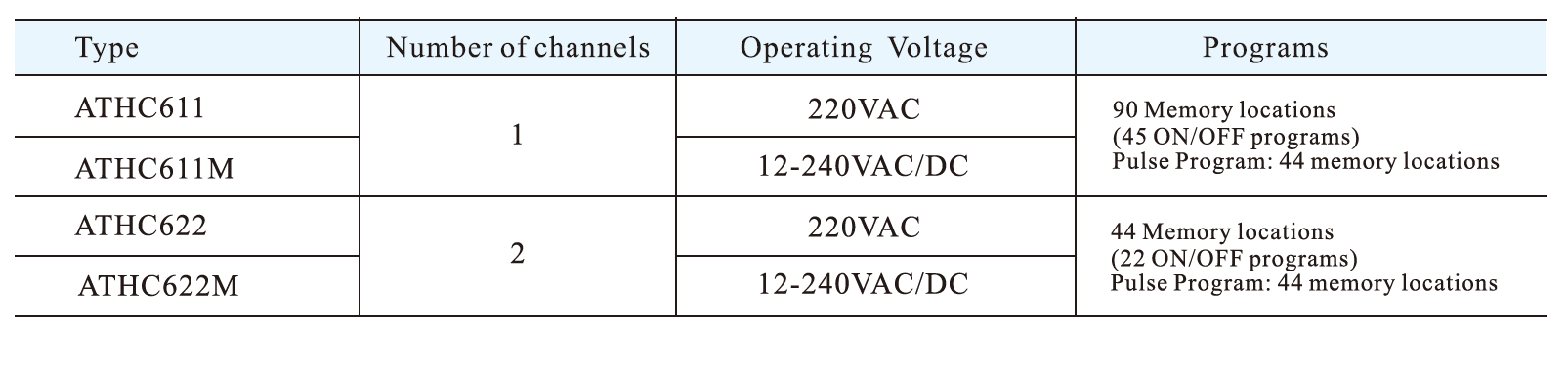

- Model
- ATHC611 ATCH622
Item specifics
- Width
- 2 modules (36mm)
- Frequency
- 50-60 Hz
- Installation type
- DIN rail
- Power reserve
- 3 years (lithium battery)
- Switching contact
- 1 change over switch, 2 change over switch
- Switching capacity at 250vac, cosφ=1
- 16A
- Switching capacity at 250vac, cosφ=0. 6
- 10A
- Incandescent/halogen lamp load
- 2300W
- Energy saving lamps
- 22x7W, 18x11W, 16x15W, 16x20W, 14x23W
- Shortest switching times
- 1 minute (pulse/cycle 1 s)
- Time accuracy
- ≤2sec/ day (25°C)
- Power consumption
- 5VA (max)
- Mechancally
- ≤± 2 Sek./day (quartz)
- Ambient humidity
- 35~ 85%rh
- Ambient temperature
- -10~+45℃
Review

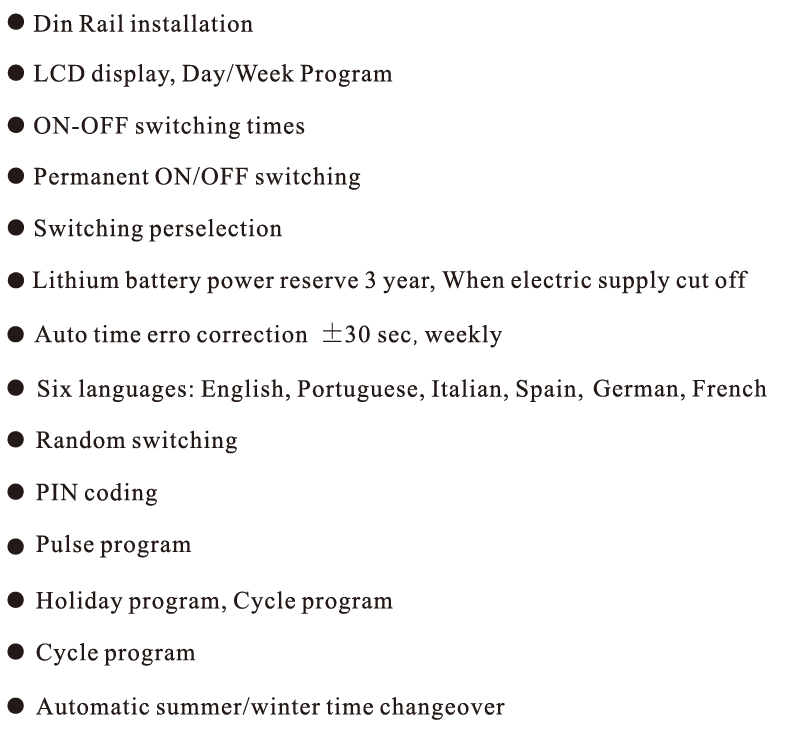

Description

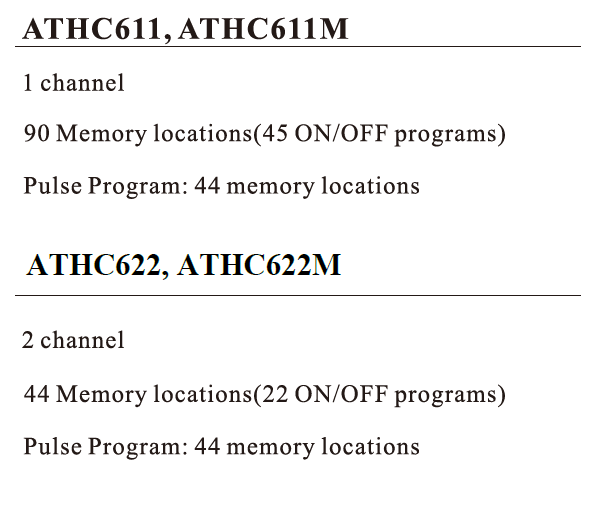

Description

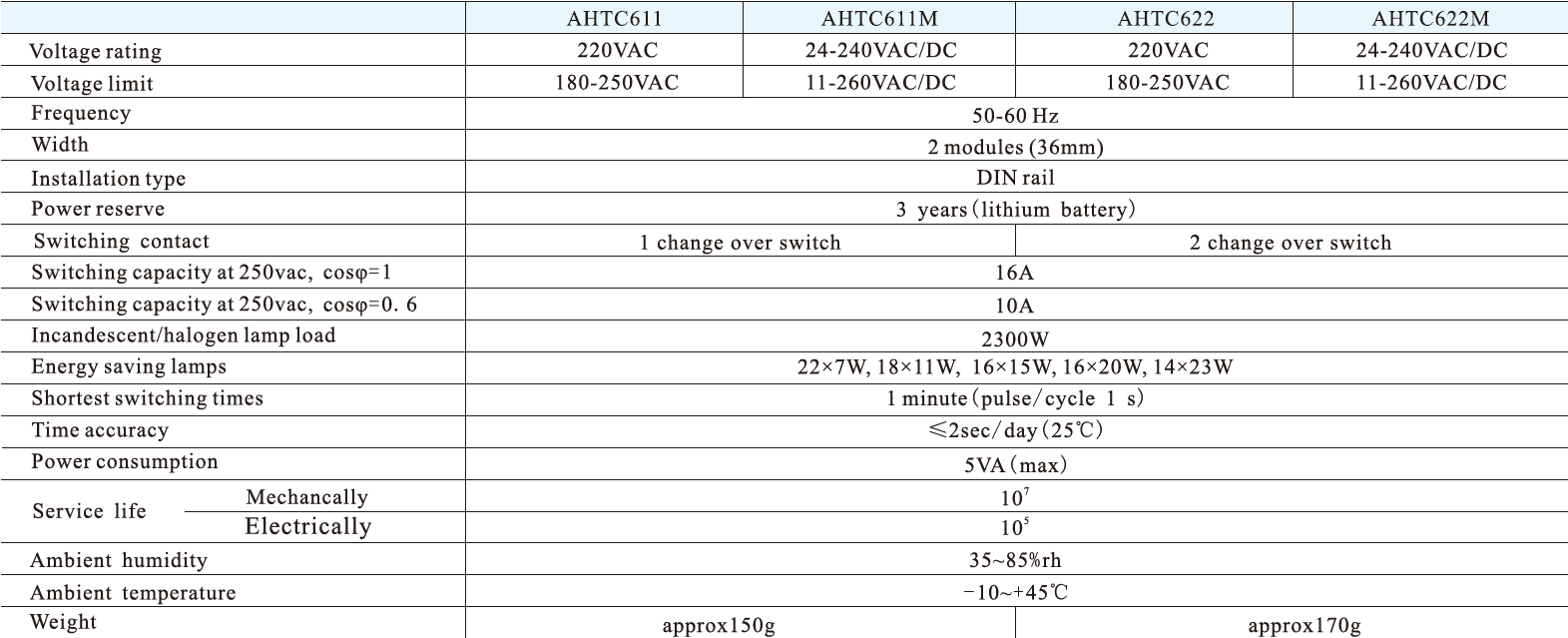

Technical date

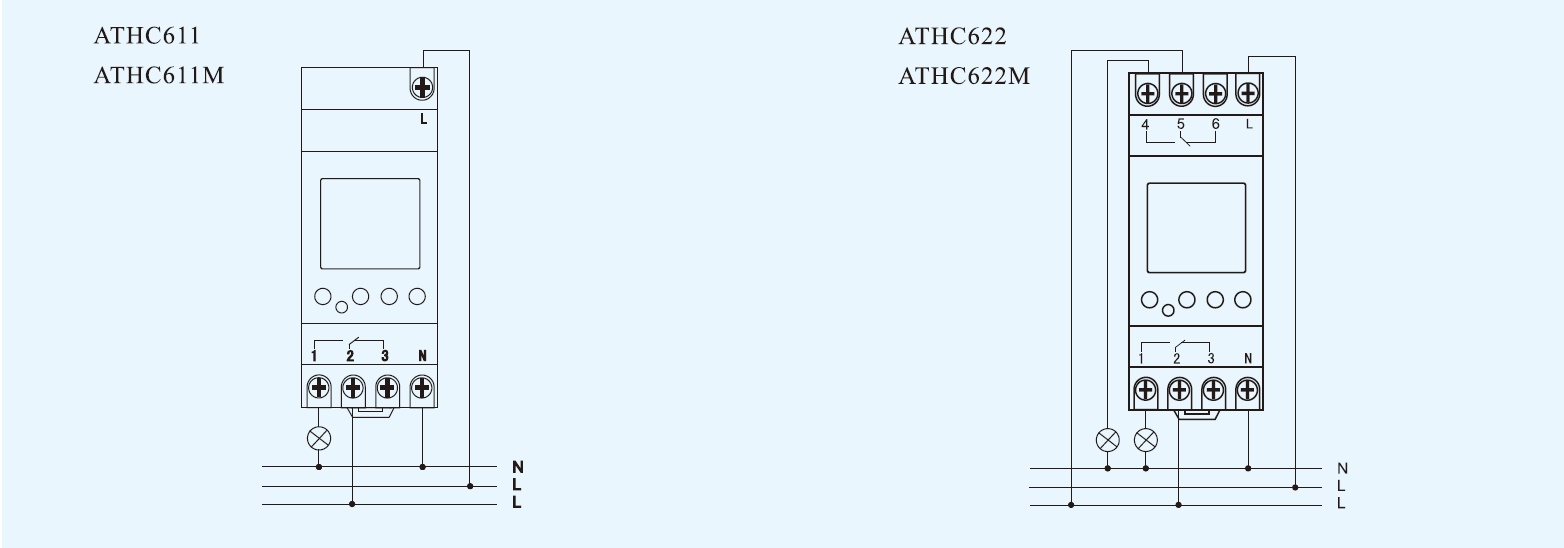

Connection example

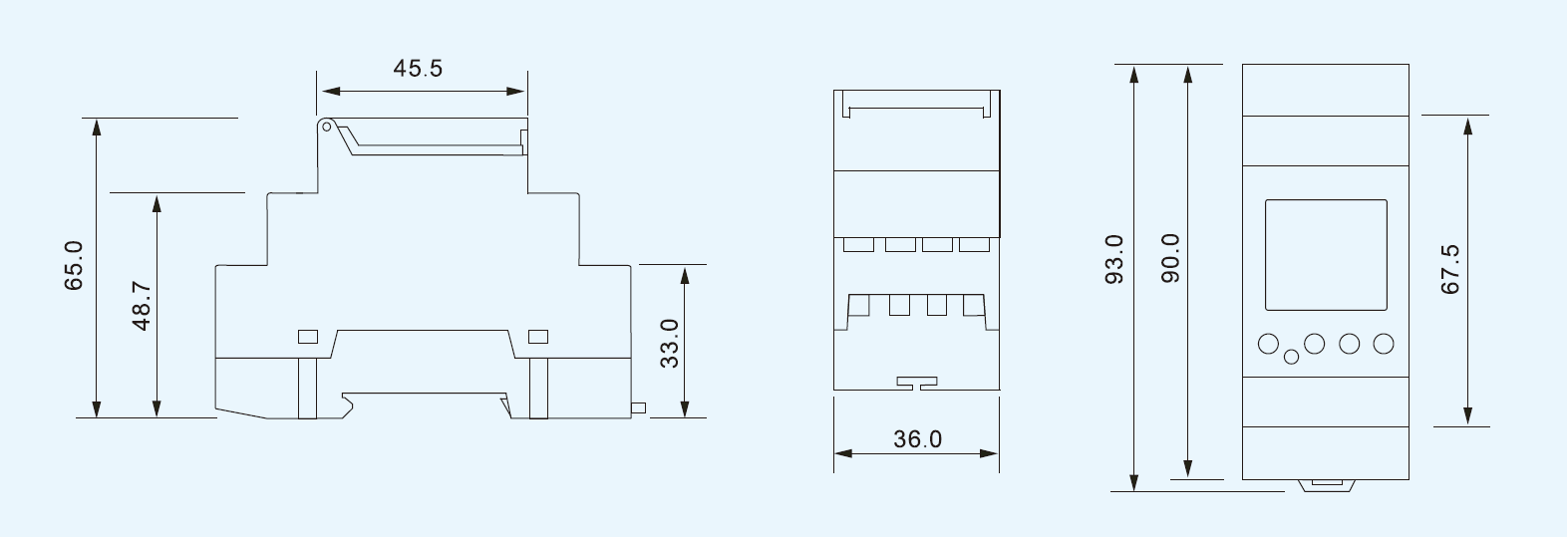

Dimensions
