AHC610 series Time switch Digital weekly
- Model
- AHC610
Item specifics
- Voltage
- AC220V (85~110%)
- Frequency
- 50Hz
- Terminal
- 5
- Switching capacity
- 16A
- Fluorescent lamp load (conventional)series-correct
- 1000VA
- Fluorescent lamp load (conventional) not corrected
- 1000VA
- Fluorescent lamp load (conventional)parallel-corre
- 730 VA 80μF
- Type of protection
- IP 20
- Class of protection
- II according to EN 60 730-1
- Permitted ambient temperature
- -10 ~ +50 °C (non-icing)
- Test approval
- CE
- Minimum interval
- 1 Min.
- Time accuracy at 25 °C
- ≤± 2 Sek./day (quartz)
- Power reserve
- approx. 5 years
- Housing and insulation material
- Self-extinguishing thermoplastic
Review
Description
Application
AHC610 series fits for the particular use of the following tasks: Illumination of private and industrial areas, street and shop-window lightening, regulation of air conditioning, flushing, motors, pumps, plants and machinery as well as to simulate presence etc.
Description
AHC610:1 channels;AHC612:2 channels
|
Built-in calendar: 2018 - 2048 years
|
Daily and weekly program
|
EU and custom Daylight Saving Time.
|
20 groups of ON/OFF program
|
32 times of pulsation program
|
DIN35mm standard rails
|
5 years battery reserve
|
Accumulated working hours and action numbers can be viewed. | |
Built-in lithium battery, keep working when power failure. |
Maximum recommended load (10,000 operations)
Filament / Halogen lamp 230V | Compact Fluorescent Lamp |
LED lamp 230V > 5 W |
Fluorescent lamp with electronic ballast |
Fluorescent lamp uncompensa ted |
Fluorescent lamp series compensate d | Fluorescent lamp parallel compensate d |
2600 W | 200 W |
200 W
|
650 W
|
1000 W
|
1000 W | 550 |

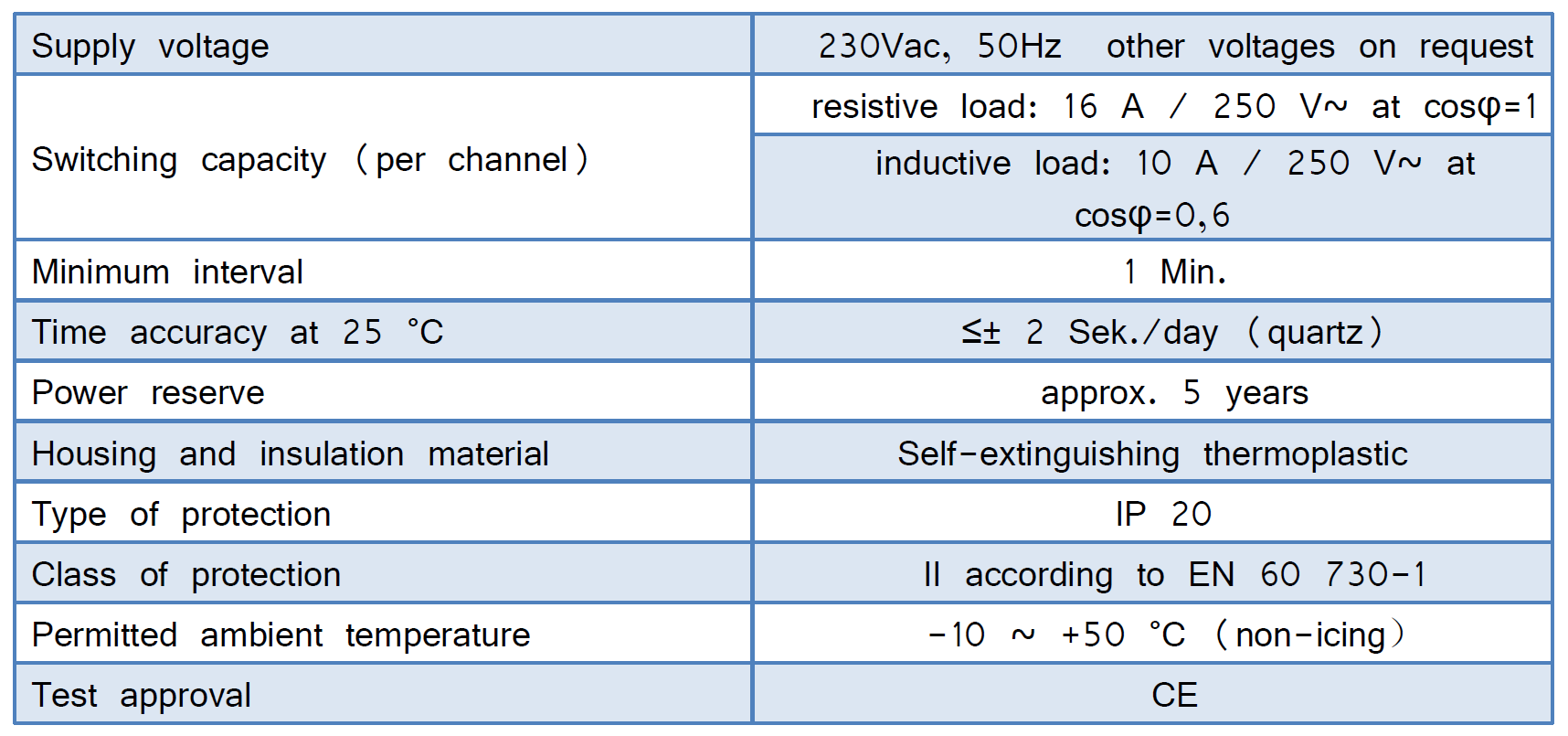

Technical date

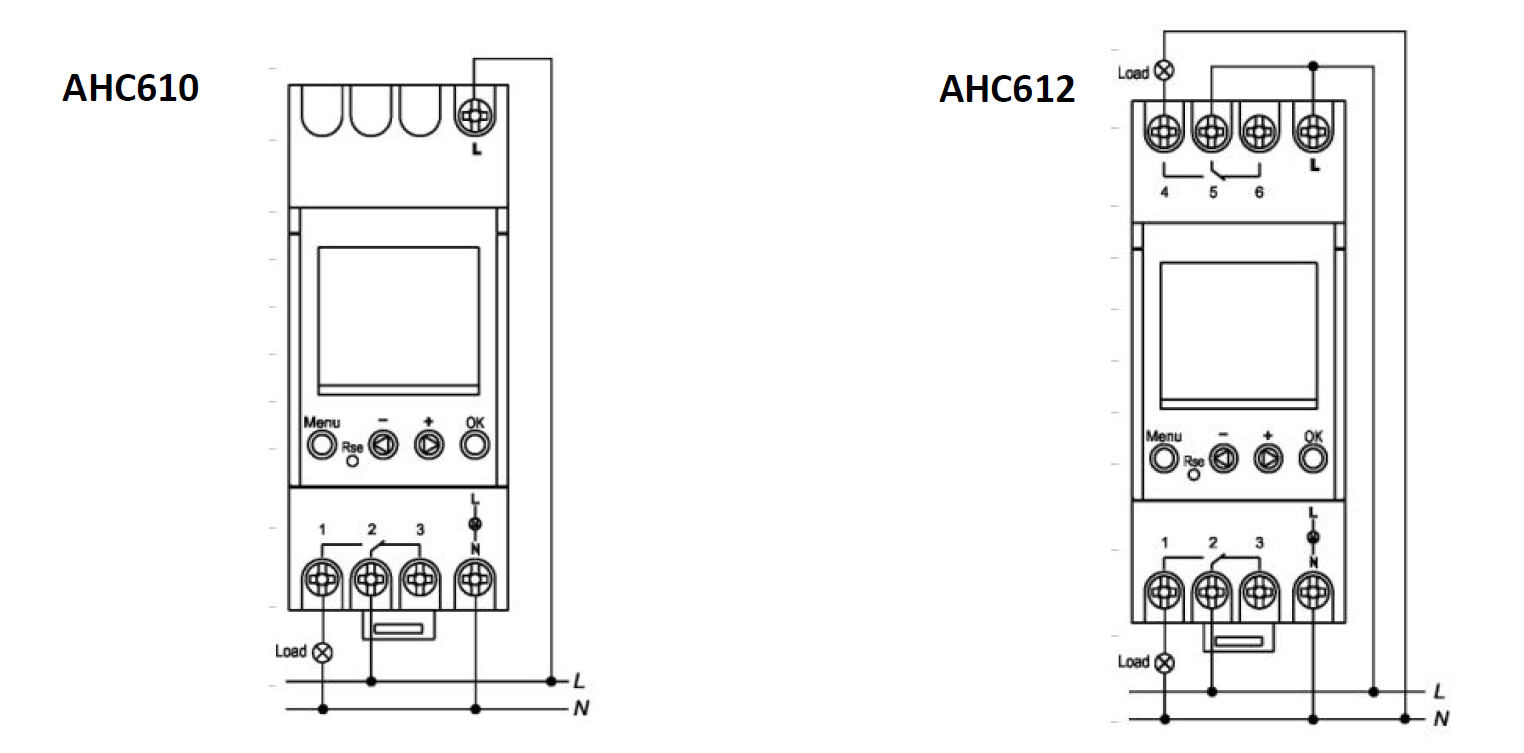

Wiring diagram

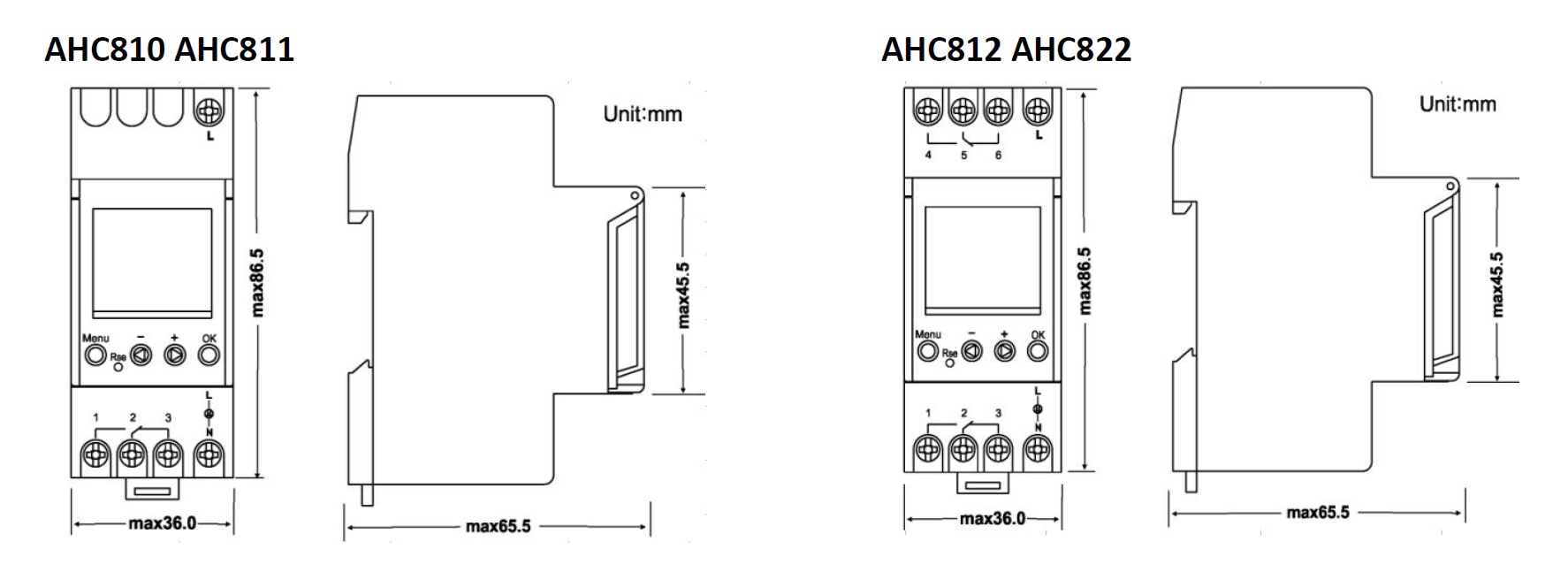

Dimensions
