AHD16T Digital Astronomical time switch
- Model
- AHD16T
Item specifics
- Voltage
- AC220V (85~110%)
- Frequency
- 50Hz
- Terminal
- 5
- Switching capacity
- 16A
- Fluorescent lamp load (conventional)series-correct
- 1000VA
- Fluorescent lamp load (conventional) not corrected
- 1000VA
- Fluorescent lamp load (conventional)parallel-corre
- 730 VA 80μF
- Type of protection
- IP 20
- Class of protection
- II according to EN 60 730-1
- Permitted ambient temperature
- -10 ~ +50 °C (non-icing）
- Test approval
- CE
- Minimum interval
- 1 Min.
- Time accuracy at 25 °C
- ≤± 2 Sek./day (quartz)
- Power reserve
- approx. 5 years
- Housing and insulation material
- Self-extinguishing thermoplastic
Review
Description
Application
AHD16T fits for the particular use of the following tasks: Illumination of private and industrial areas, street and shop-window lightening, regulation of air conditioning, flushing, motors, pumps, plants and machinery as well as to simulate presence etc.
Description
|
Longitude range: east longitude / west longitude 0 ~ 180° |
Automatic key lock function, effectively prevent misuse. |
|
Latitude range: latitude / latitude 0 ~ 68°
|
Time zone range: 12 ~ -12
|
|
8 ON/OFF program
|
Screw terminals
|
|
Switching preselection
|
Preset date and time
|
Fully operable without mains connection | 12/24 hour format conversion |
Built-in lithium battery,power failure memory | Manually set Daylight Saving Time(1 Hours) |
The sunrise and sunset time can be checked according to the setting longitude, latitude, date and time zone. | |
Product selection
|
Voltage
|
AC220V (85~110%)
|
|
Frequency
|
Frequency
|
|
Terminal
|
5
|
|
Switching capacity
|
16A
|
Maximum recommended load (10,000 operations)
Filament / Halogen lamp 230V | Energy saving lamps |
LED lamp < 2 W |
LED lamp 2–8 W |
LED lamp > 8 W |
Fluorescent lamp load (electronic ballast) |
2600 W | 170 W |
30 W
|
100 W
|
120 W
|
650 W |

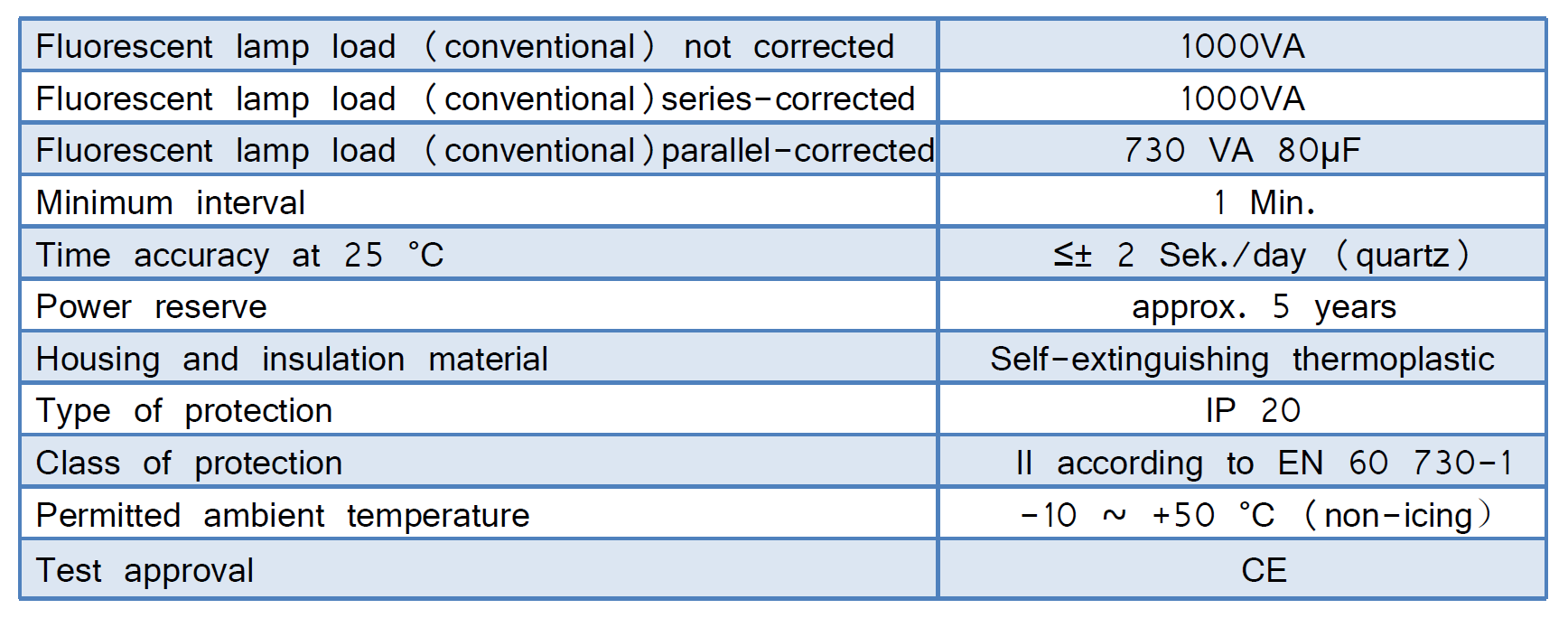

Technical date

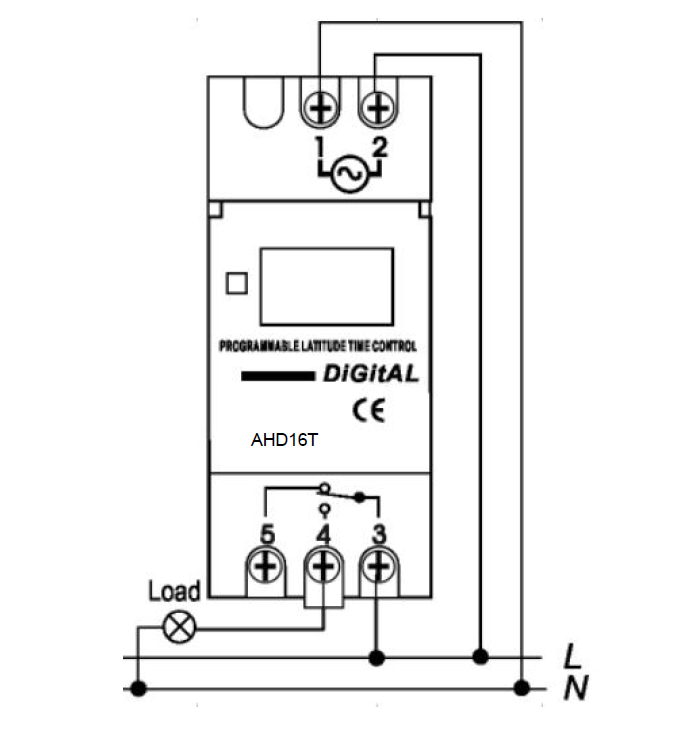

Wiring diagram

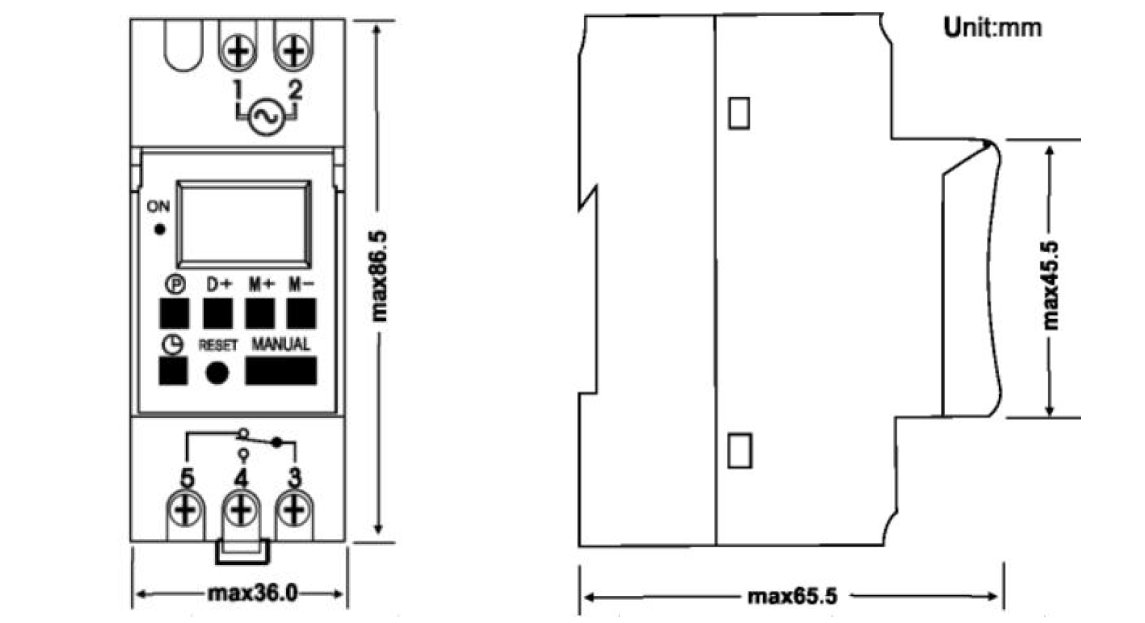

Dimensions
