AHC810 series Digital time switch
- Model
- AHC810
Item specifics
- Supply voltage
- 230Vac, 50Hz other voltages on request
- Switching capacity (per channel)
- resistive load: 16 A / 250 V~ at cosφ=1
- Switching capacity (per channel)
- inductive load: 10 A / 250 V~ at cosφ=0,6
- Minimum interval
- 1 Min.
- Time accuracy at 25 °C
- ≤± 2 Sek./day (quartz)
- Power reserve
- approx. 5 years
- Housing and insulation material
- Self-extinguishing thermoplastic
- Type of protection
- IP 20
- Class of protection
- II according to EN 60 730-1
- Permitted ambient temperature
- -10 ~ +50 °C (non-icing）
- Test approval
- CE
Review
Description
Application
AHC810 series fits for the particular use of the following tasks: Illumination of private and industrial areas, street and shop-window lightening, regulation of air conditioning, flushing, motors, pumps, plants and machinery as well as to simulate presence etc.
Description
|
1 channel or 2 channels
|
Fully operable without mains connection
|
|
Daily and weekly program
|
Preset date and time
|
|
44 ON/OFF program
|
PIN Code
|
|
Full automatic Daylight saving time
|
5 years battery reserve
|
6 Languages (English/Spain/France/Portugal/Germany/Italy) | |
Built-in lithium battery, keep working when power failure. | |
EXTRA FUNCTION for AHC811 AHC822: Random or Holiday program; 20 pulse programs(1s~59m59s); 18 Cycle program | |
Maximum recommended load (10,000 operations)
Filament / Halogen lamp 230V | Compact Fluorescent Lamp |
LED lamp 230V > 5 W |
Fluorescent lamp with electronic ballast |
Fluorescent lamp uncompens ated |
Fluorescent lamp series compensat ed |
Fluorescent lamp parallel compensat ed |
2600 W | 200 W |
200 W
|
650 W
|
1000 W
|
1000 W
|
550 W |

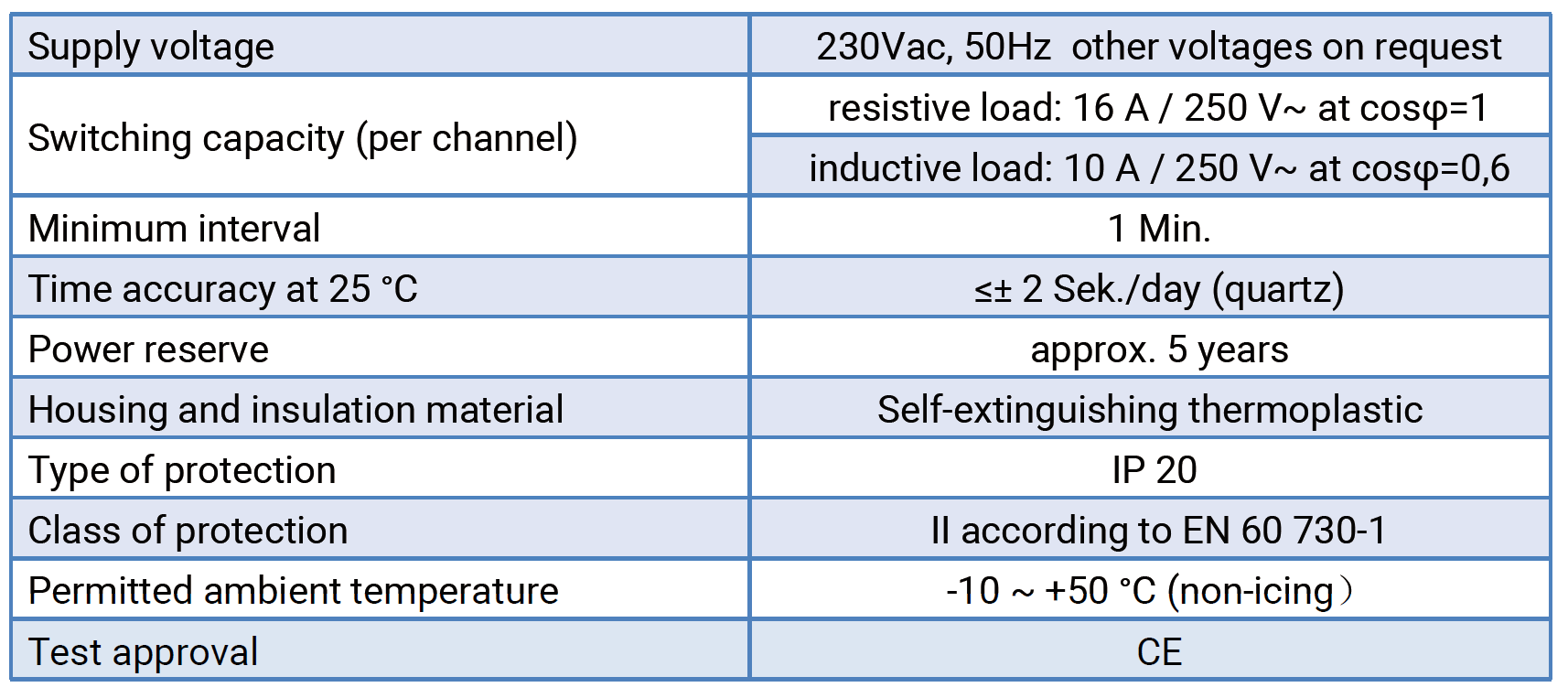

Technical date

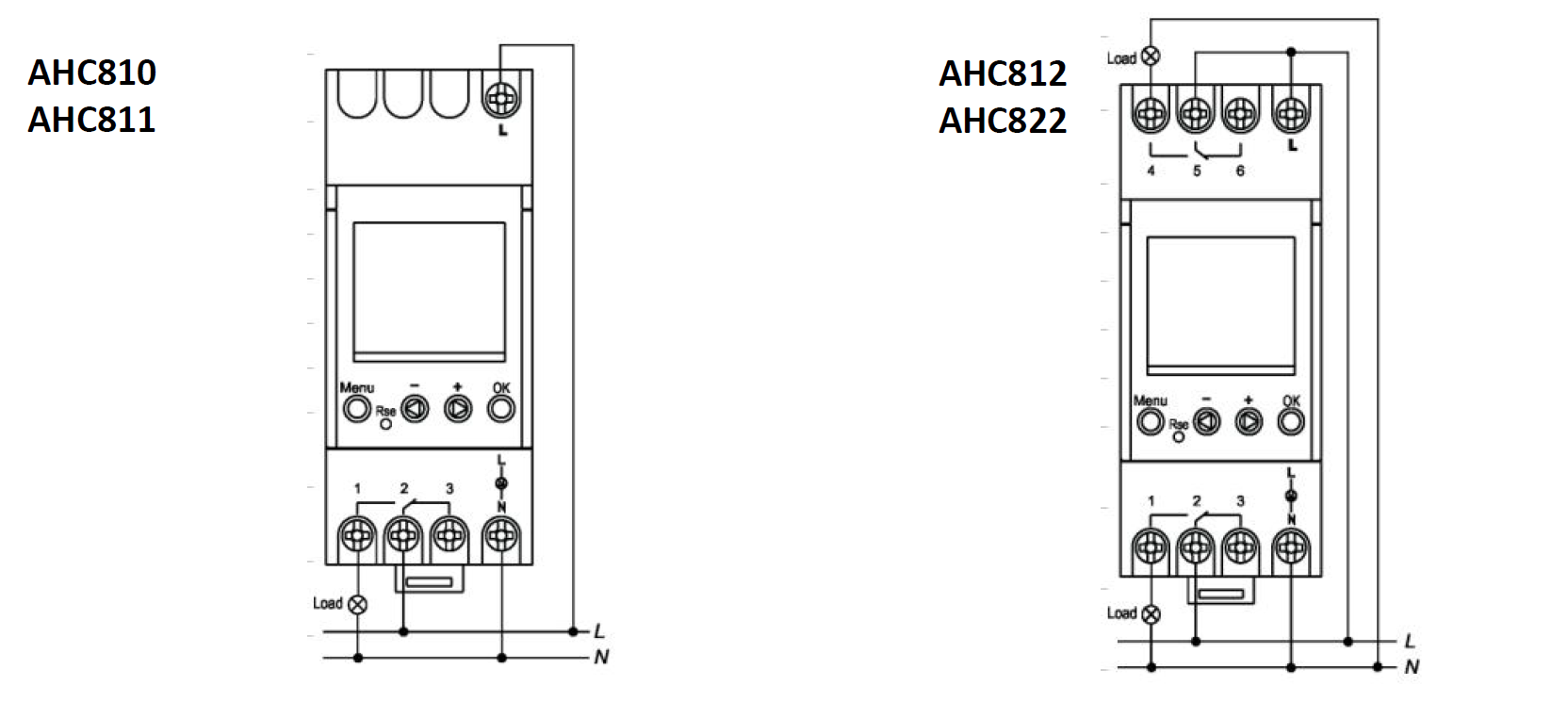

Wiring diagram
Dimensions
