AHC15D Digital weekly time switch
- Model
- AHC15D
Item specifics
- Voltage
- 85~265V AC
- Frequency
- 50 / 60Hz
- Terminal
- 5
- Switching capacity
- 16A
- Minimum interval
- 1 Min.
- Time accuracy at 25 °C
- ≤± 2 Sek./day (quartz)
- Power reserve
- approx. 5 years
- Housing and insulation material
- Self-extinguishing thermoplastic
- Type of protection
- IP 20
- Class of protection
- II according to EN 60 730-1
- Permitted ambient temperature
- -10 ~ +50 °C (non-icing）
- Test approval
- CE
Review
Description
Application
AHC15D fits for the particular use of the following tasks: Illumination of private and industrial areas,street and shop-window lightening,regulation of air conditioning, flushing, motors, pumps, plants and machinery as well as to simulate presence etc.
Description
|
1 channels
|
Fully automatic daylight saving time
|
|
Daily and weekly program
|
Elapsed time and pulse counter
|
|
20 ON/OFF program
|
Auto-correct time(-30 sec ≤△t≤30 sec)
|
|
20 pulse programs(1s~59m59s)
|
Preset date and time
|
Countdown program(1s~59m59s) | Manual permanent mode |
12/24 hour format conversion | Manual override |
Built-in lithium battery, keep working when power failure | |
Product selection
|
Voltage
|
85~265V AC
|
|
Frequency
|
50 / 60Hz
|
|
Terminal
|
5
|
|
Switching capacity
|
16A
|
Maximum recommended load (10,000 operations)
Filament / Halogen lamp 230V | Energy saving lamps |
LED lamp < 2 W |
LED lamp 2–8 W |
LED lamp > 8 W |
Fluorescent lamp load (electronic ballast) |
2600 W | 170 W |
30 W
|
100 W
|
120 W
|
650 W
|

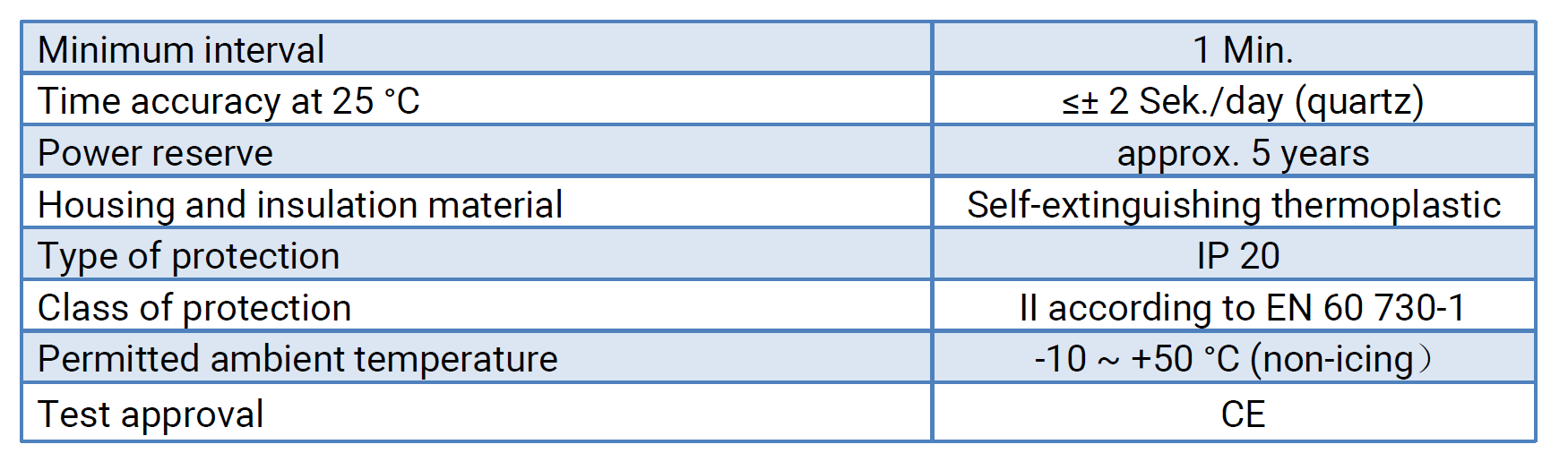

Technical date

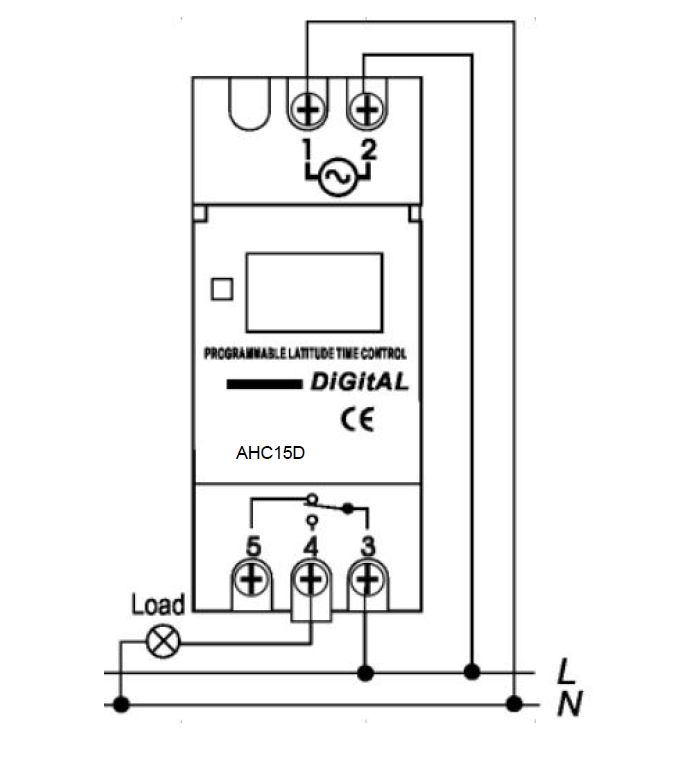

Wiring diagram

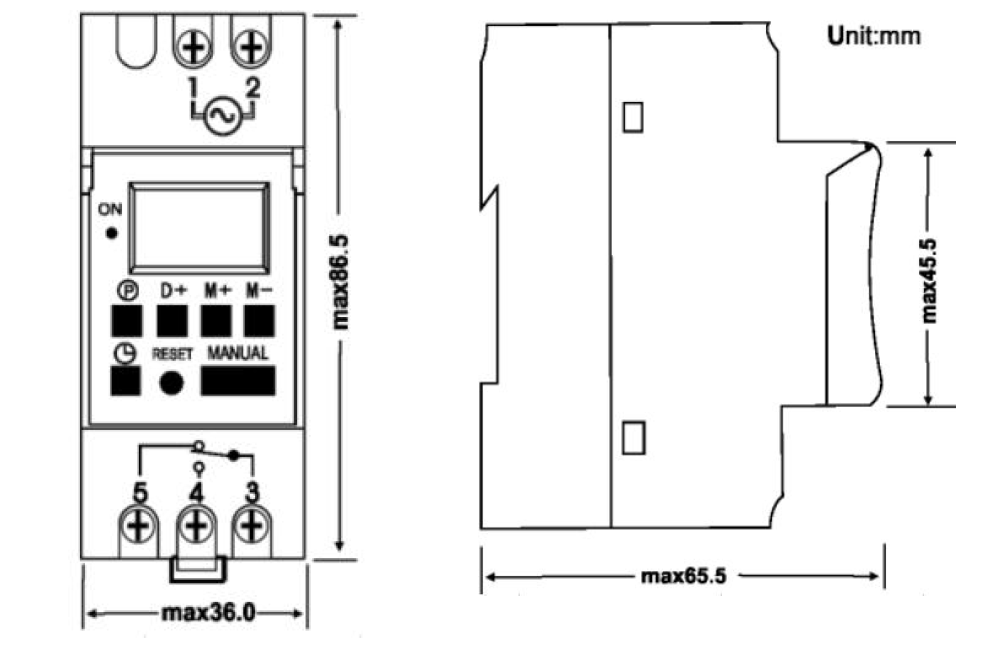

Dimensions
