Smart High Technology Series Circuit Breaker MCB
- Model
- WIFI MCB 1P 3P
Item specifics
- Conforming to standard
- GB 10963. l;IEC60898-1.
- Rated voltage
- AC 230V 1P 2P. AC 400V 3P 4P.
- Frequency
- 50Hz
- Quantity:

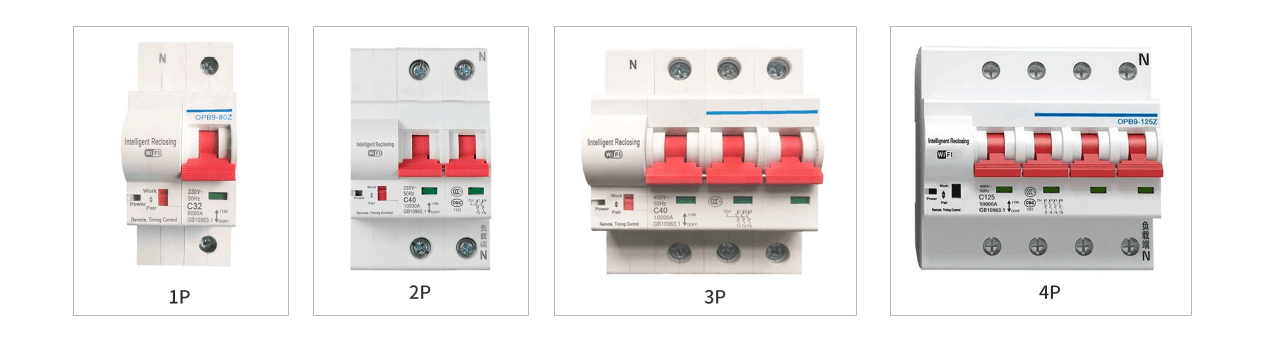

- 1P 2P 3P 4P
- Class of pollution
- 2style
- Protection grade
- IP20
- Rating current of shell frame
- 125A
- Rated curret
- 32A. 40A. 63A. 80A. 100A. 125A.
- Rated shon eincuit brcuking capacity
- 6kA
- ARated impact tolerance voltage
- 6kV
Review
Description
INTELLIGENT WIFI RECLOSER CIRCUIT BREAKER

Application
Intelligent remote control of Household, Dornitory,Enterprise, Project, Farm, Street light, Pump, ground
heater, water heater, etc.
Connect the zero lines of product and distribution systemwhen using 1P and 3P products.

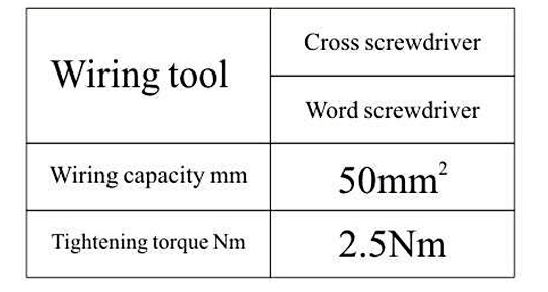

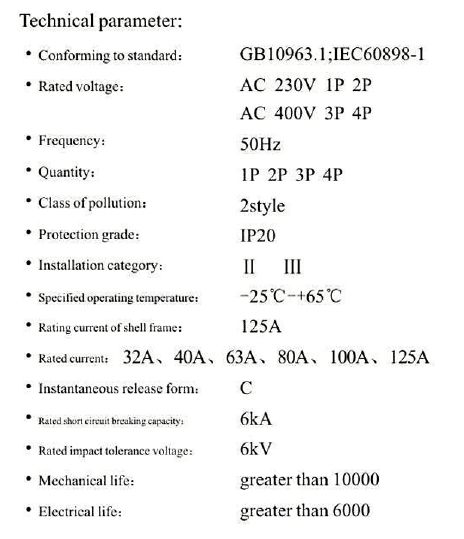

Technical parameter&Wiring diagram

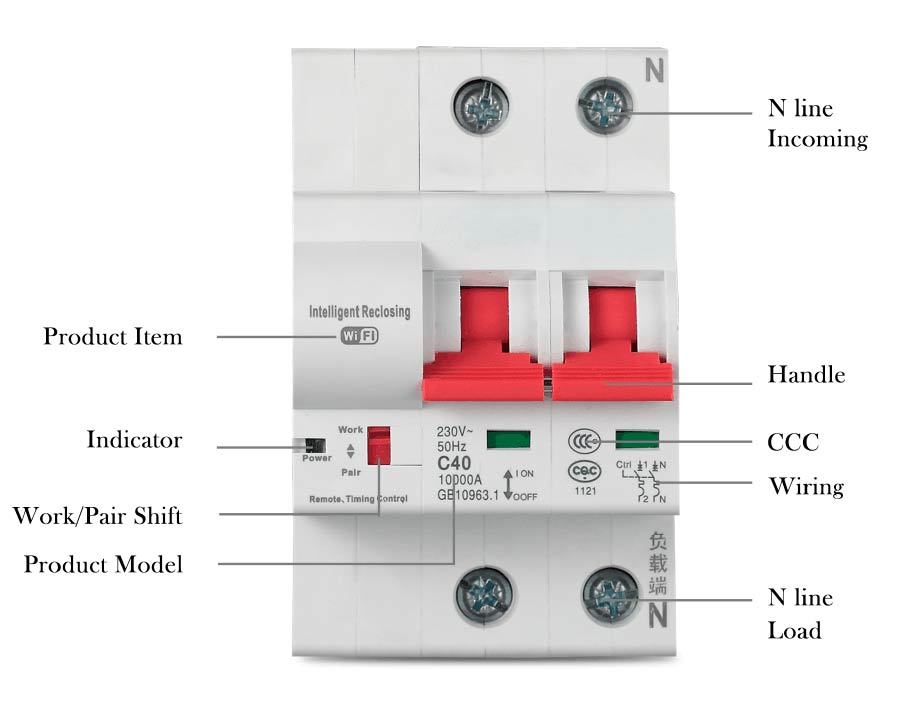

STRUCTURE

ADVANTAGES

Application
