ZHRV2-04 Voltage control relay

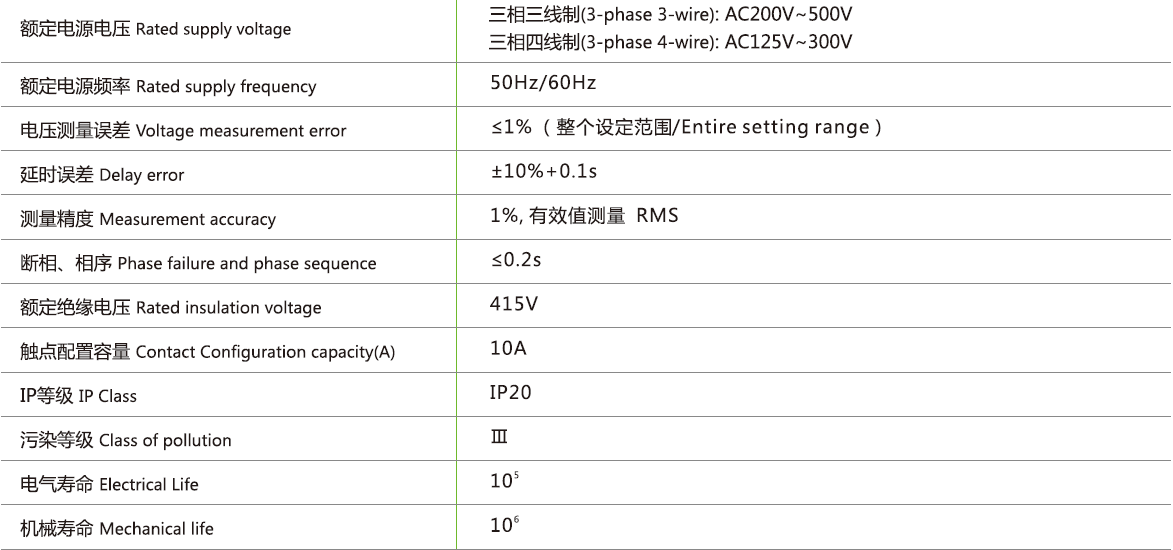

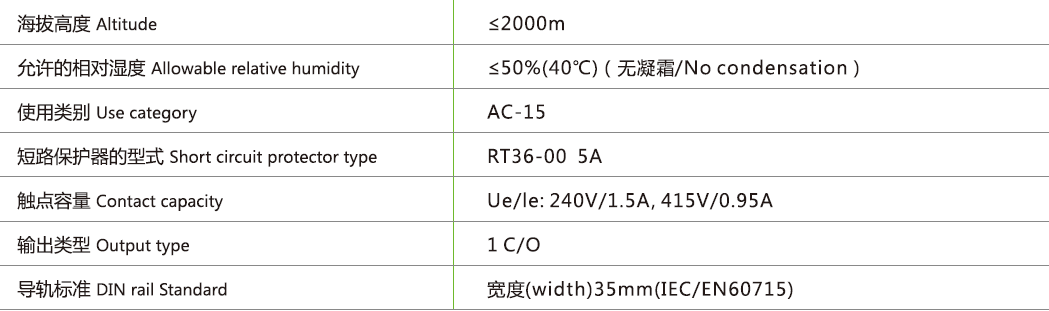

Item specifics
- Rated supply voltage
- 3-phase 3-wire AC220V~500V 3-phase 4-wire AC125V~3
- Rated supply frequency
- 50Hz/60Hz
- Phase failure and phase sequence
- ≤0.2s
- Voltage measurement error
- ≤1%
- Rated insulation voltage
- 415V
- Contact configuration capacity(A)
- 10A
- Altitude
- ≤2000m
- Allowable relative humidity
- ≤50%
- Use category
- AC-15
- Output type
- 1 C/O
Review
Description
Function
Applications
Used in air conditioning units, elevator machine room, pumps, fans and other motor control applications, as protection of over-voltage, under voltage, phase failure, phase sequence and phase unbalance. When the power supply is abnormal, turn off power supply to protect the equipment.
Built-in microprocessor, true RMS measurement, voltage measurement accuracy <1%。Measuring frequency 45Hz~65Hz button setting, LCD display voltage and fault information can be turned on or off.Check phase voltage value by button, With N-phase phase failureprotection, DIN rail mounting.

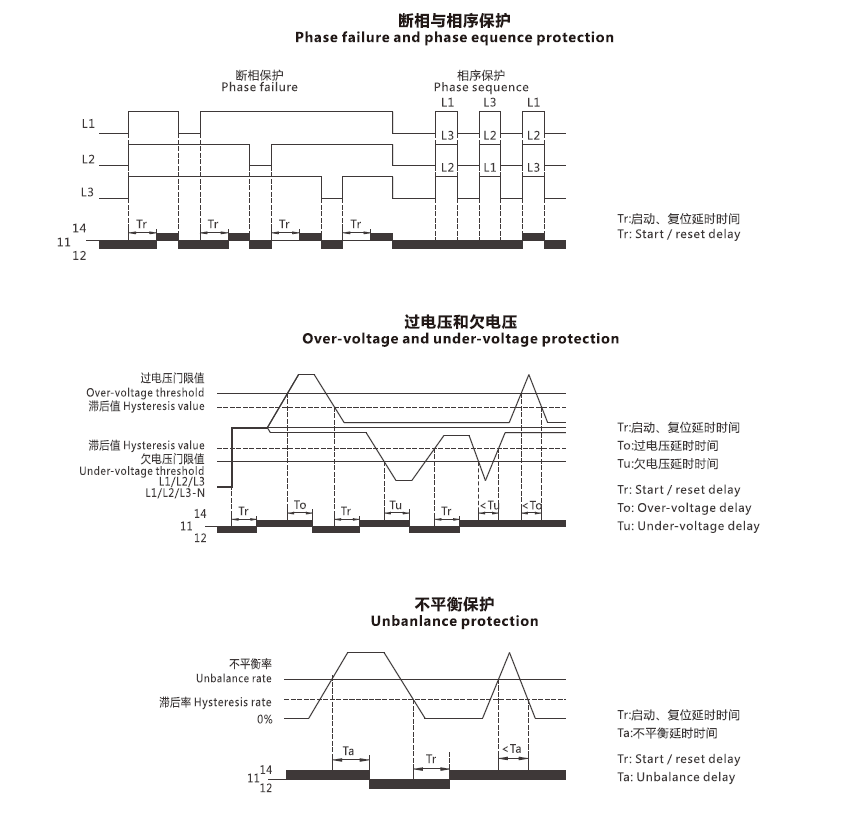

Function Diagram

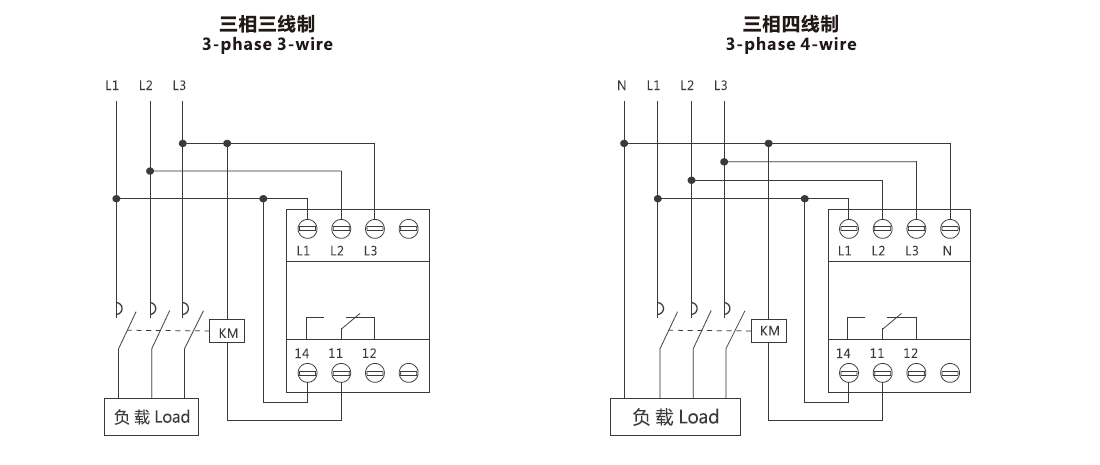

Wiring Diagram

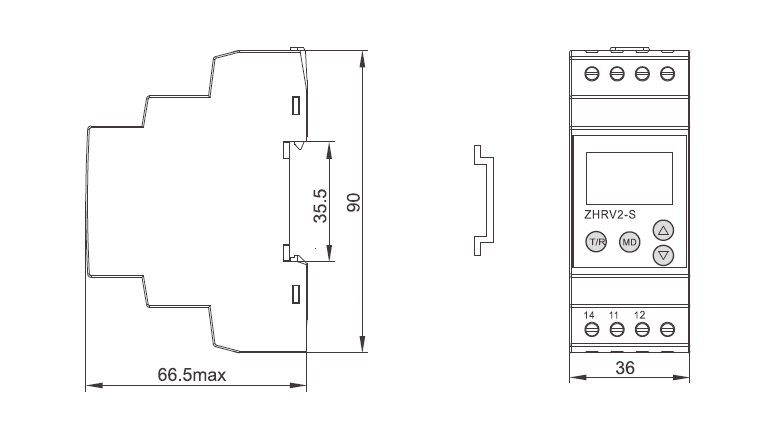

Dimensions
