ZHRV2-36G Voltage control relay

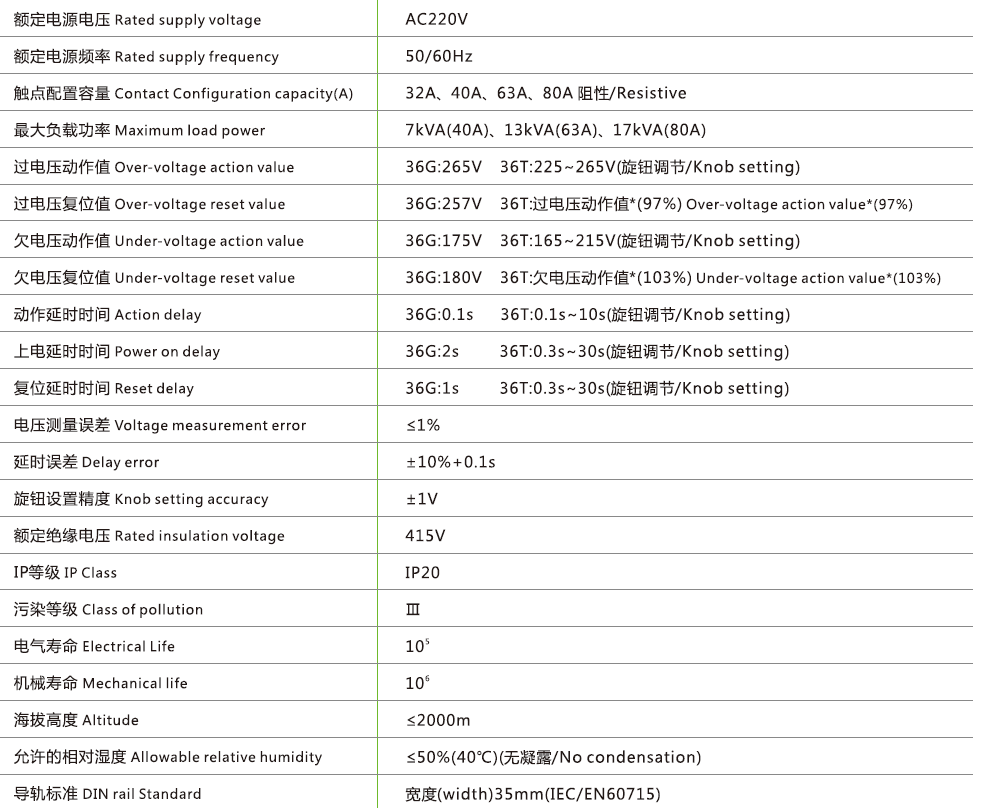

Item specifics
- Rated supply voltage
- AC220V
- Rated supply frequency
- 50Hz/60Hz
- Over- voltage action value
- 265V
- Under -voltage action value
- 175V
- Action delay range
- 0.1s
- Voltage measurement error
- ≤1%
- Rated insulation voltage
- 415V
- IP Class
- IP 20
- Delay error
- ±10%+0.1s
- Knob setting accuracy
- ±1V
Review
Description
Function
Applications
Used in air conditioning units, elevator machine room, pumps, fans and other motor control applications, as protection of over-voltage, under voltage, phase failure, phase sequence and phase unbalance. When the power supply is abnormal, turn off power supply to protect the equipment.
Built-in microprocessor, true RMS measurement, measurement accuracy ≤1%.knob setting, LED indicator shows working status.Use（magnetic latching)relay to achieve products low-power. DIN rail mounting.

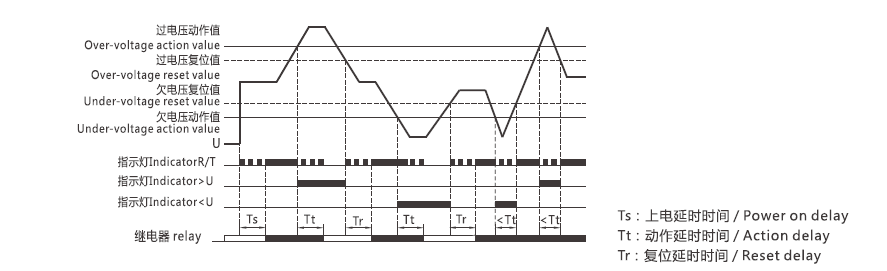

Function Diagram

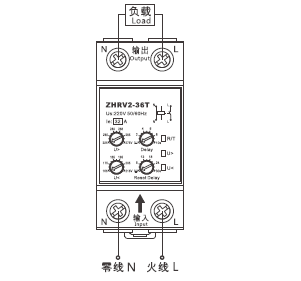

Wiring Diagram

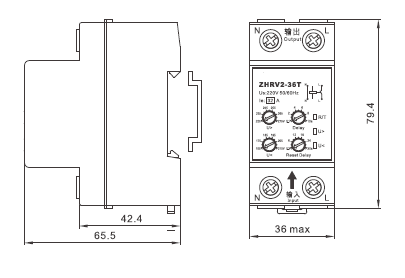

Dimensions
