ZHRT2-M1 Sofielec time relay
- Model
- ZHRT2-M1
Item specifics
- Rated control supply voltage
- DC12V. AC/DC 24V ~24
- Rated power consumption
- ≤1W
- Delay range
- 0.1s~100h
- Setting accuracy
- ≤5%
- Repeat accuracy
- ≤0.2%
- Repeat power- on interval
- ≥200ms
- Altitude
- ≤2000m
- Contact configuration capacity(A)
- 1C/O 16A;2C/O 16A;3C/O 8A,2C/O+1 instant C/O 8A+16
- IP Class
- IP 20
- Use category
- AC-15
Review
Description
Function
Applications
Used in air conditioning units, elevator machine room, pumps, fans and other motor control applications, as protection of over-voltage, under voltage, phase failure, phase sequence and phase unbalance. When the power supply is abnormal, turn off power supply to protect the equipment.
Built-in microprocessors, 0.1s~100h wide delay range, repeataccuracy ≤ 0.2% knob setting. LED indicator shows working status. with 10 different control modes for different electriacla control systems,variety of optional rated voltage. DIN-rail mounting.

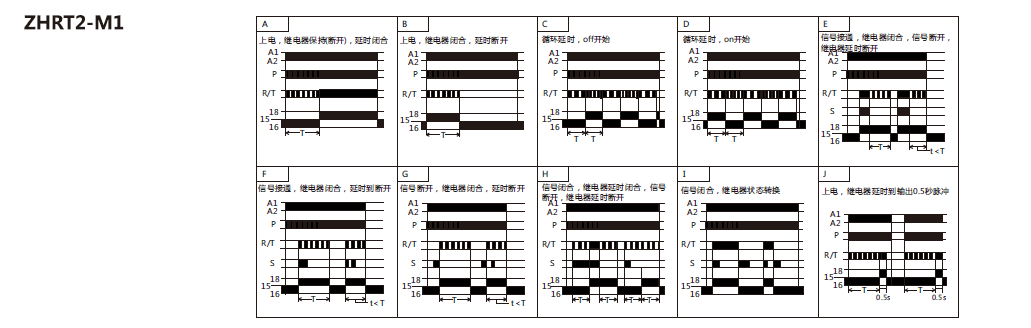

Function Diagram
Wiring Diagram
Dimensions
