ZHRV1-14 Sofielec under over voltage control,cnc phase sequence module device relay
- Model
- ZHRV1-14

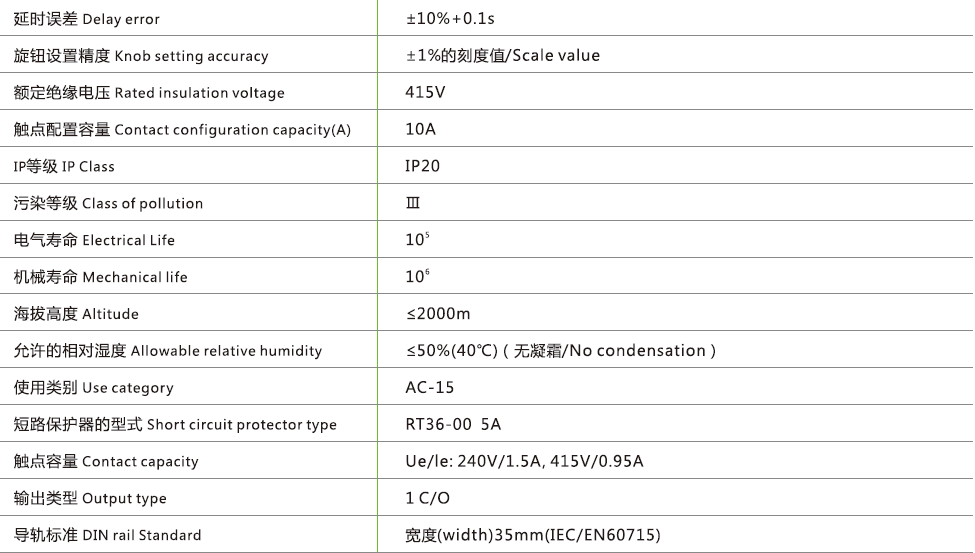

Item specifics
- Rated insulation voltage
- 415V
- Contact configuration capacity(A)
- 10A
- IP Class
- IP20
- Use category
- AC-15
- Short circuit protector type
- RT36-00 5A
- Output type
- 1C/O
- Altitude
- ≤2000m
- Allowable relative humidity
- ≤50%
- Contact capacity
- Ue/le: 240V/1.5A, 415V/0.95A
- Rated supply voltage
- AC220V、AC230V. AC240V、AC380V、 AC400V、 AC415V
Review
Description
Function
Applications
Used in air conditioning units, elevator machine room, pumps, fans and other motor control applications, as protection of over-voltage, under voltage, phase failure, phase sequence and phase unbalance. When the power supply is abnormal, turn off power supply to protect the equipment.
Built-in microprocessor, true RMS measurement, measurement accuracy ≤1%.50/60Hz universal, knob setting, LED indicator shows working status. With N-phase phase failure protection, unique load-side and PTC temperature protection, optional manual reset and key test function, DIN rail mounting. .

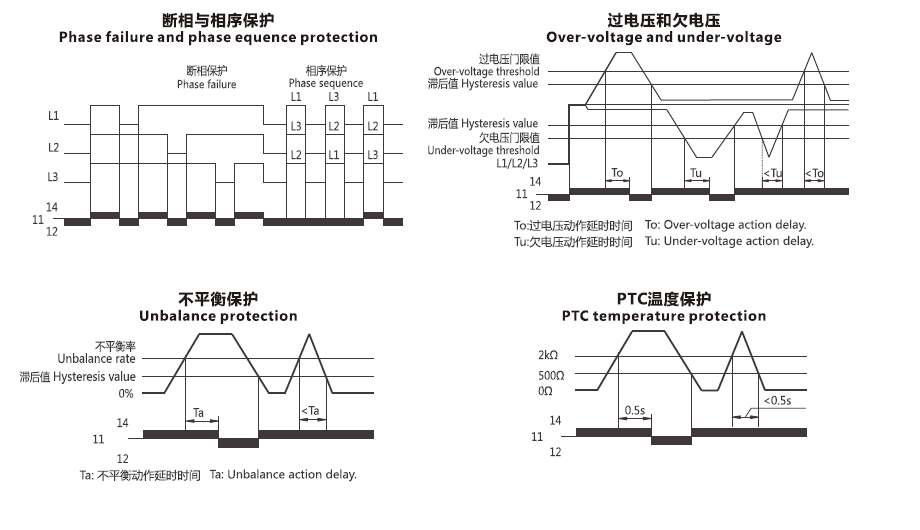

Function Diagram

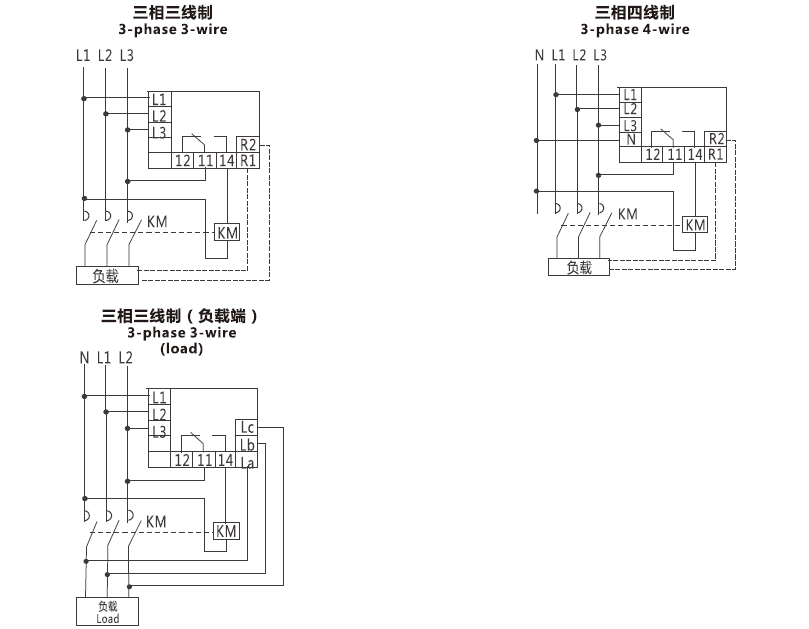

Wiring Diagram

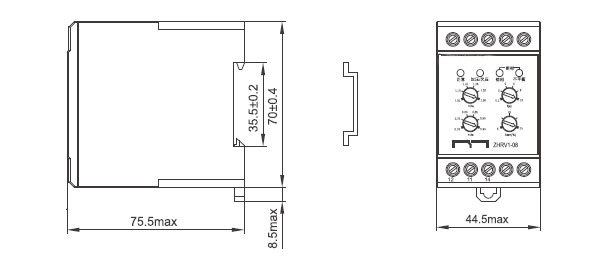

Dimensions
