ZHRL1-B Liquid Level Relay
Item specifics
- Model
- ZHRL1-B
- Rated supply voltage
- AC110V AC220V. AC380V 50Hz/60Hz
- Delay range
- 0.1s~10s
- Cable length
- ≤100m
- IP Class
- IP 20
- Use category
- AC-15
- Rated power consumption
- ≤1.5VA
- Atitude
- ≤2000m
- Contact configuration capacity(A)
- 10A
- Contact capacity
- 1 C/O
Review
Description
Function
Applications
Used in single-phase control system, when the power supply is abnomal .
Build-in mircoprocessor, true RMS measurement, voltage measurement accuracy<=1%. Measuring frequency 45Hz~65Hz, button setting. LCD displays voltage and fault information, protection can be turned on or off. Check 3-phase voltage value by botton, with counting and timing function. Record number and time of using devices. DIN rail mounting.
|
Rated supply voltage |
AC110, AC220V, AC380V, 50Hz/60Hz |
Rated power consumption | ≤1.5VA |
Sensitivity adjustable range | 5kΩ~100kΩ/adjustable relay |
Delay range | 0.1s~10s |
Contact configuration capacity | 10A |
Cable Length | ≤100m |
Accumulated timing error | ≤0.001% |
Count input signal | AC/DC 20V-450V |
Short circuit protector type and maximum rating | NT00-6A |
|
IP Class |
IP20 |
|
Class of pollution |
3 |
Altitude | ≤2000m |
Allowable relative humidity | ≤50%(40℃)/no condensation |

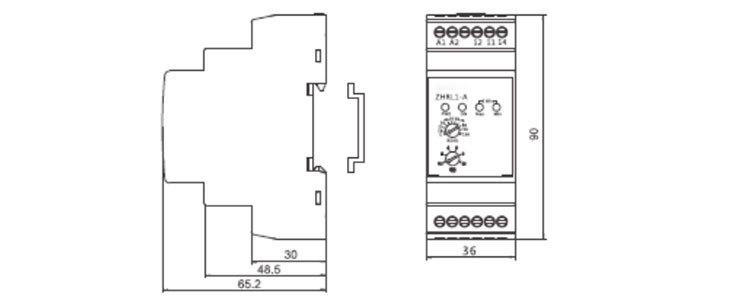

DIN rail Standard | Width 35mm(IEC/EN60715) |
