ZHRT2-A1 Time Relay

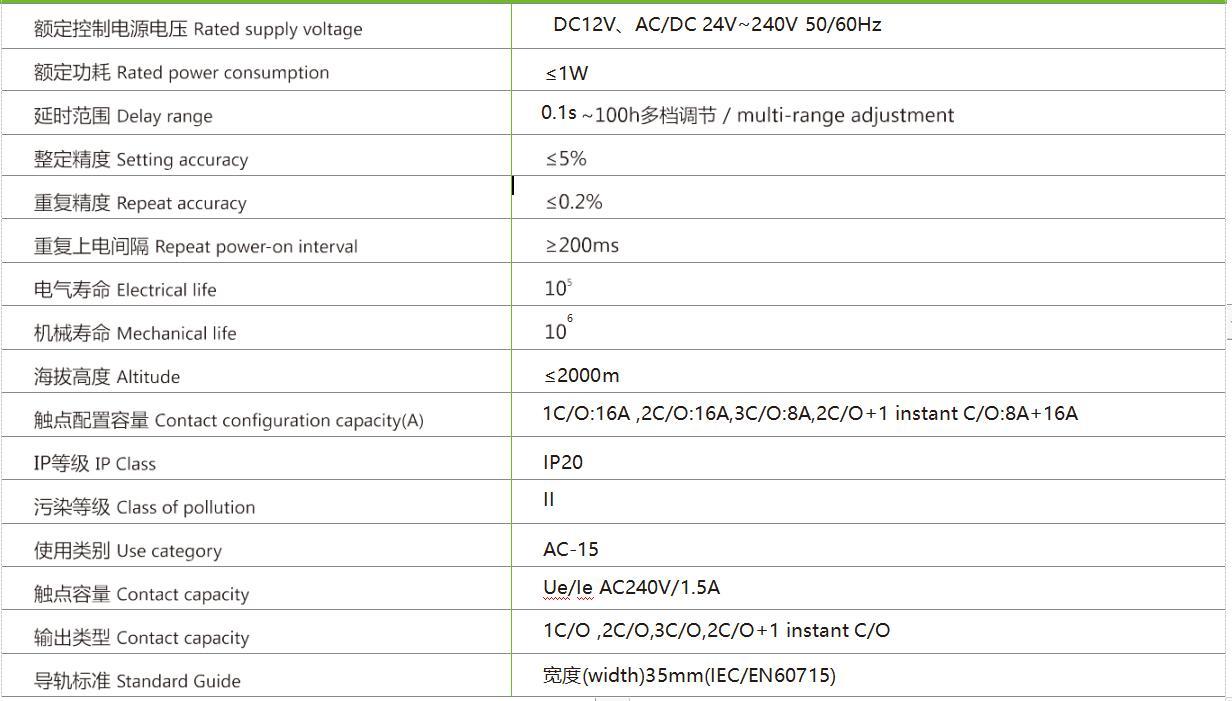

Item specifics
- Rated supply voltage
- DC12V. DC24V,AC1l0V. AC220V. AC380V AC/DC 24V~240V
- Rated power consumption
- AC≤1.5VA DC≤1W
- Delay range
- 0.1s~100h
- Setting accuracy
- ≤5%
- Repeat accuracy
- ≤0.2%
- Repeat power-on interval
- ≥200ms
- Altitude
- ≤2000m
- Contact configuration capacity(A)
- 1 C/O,2 C/O 16A, 1C/O+1 instant C/O, 3C/O 8A
- Contact capacity
- 1 C/O, 2 C/O, 1C/O+1 instant C/O, 3C/O
- Ѕtаndаrd Guіdе
- (width)35mm
Review
Description
Function
Applications
Used in control cabinets, cabinets and other electrical control circuit,according to the scheduled time automatically switch on or off the circuit.
Built-in micro controllers, 0.1s ~100h wide delay range, repeat accuracy ≤0.2%. Knob setting, LED indicator shows working status. Variety of optional rated voltage. DIN rail mounting.

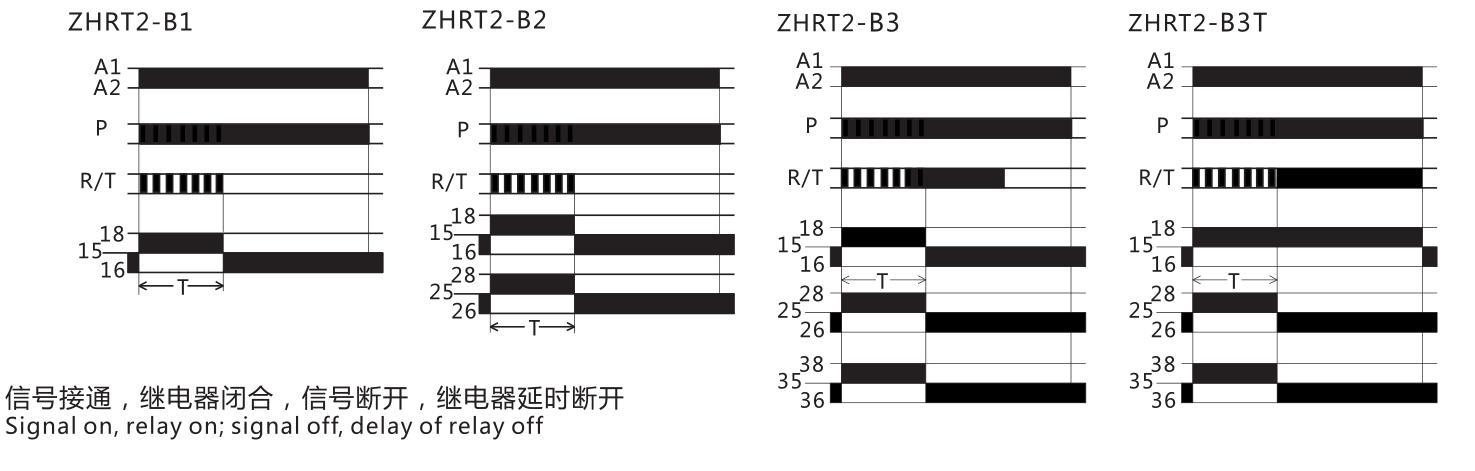

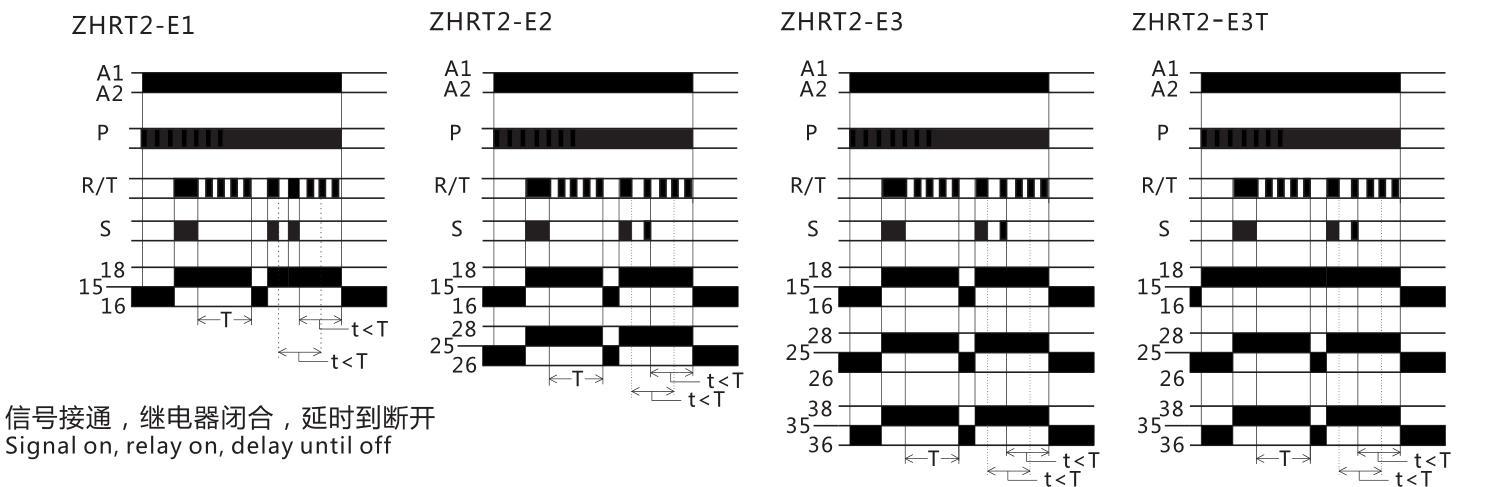

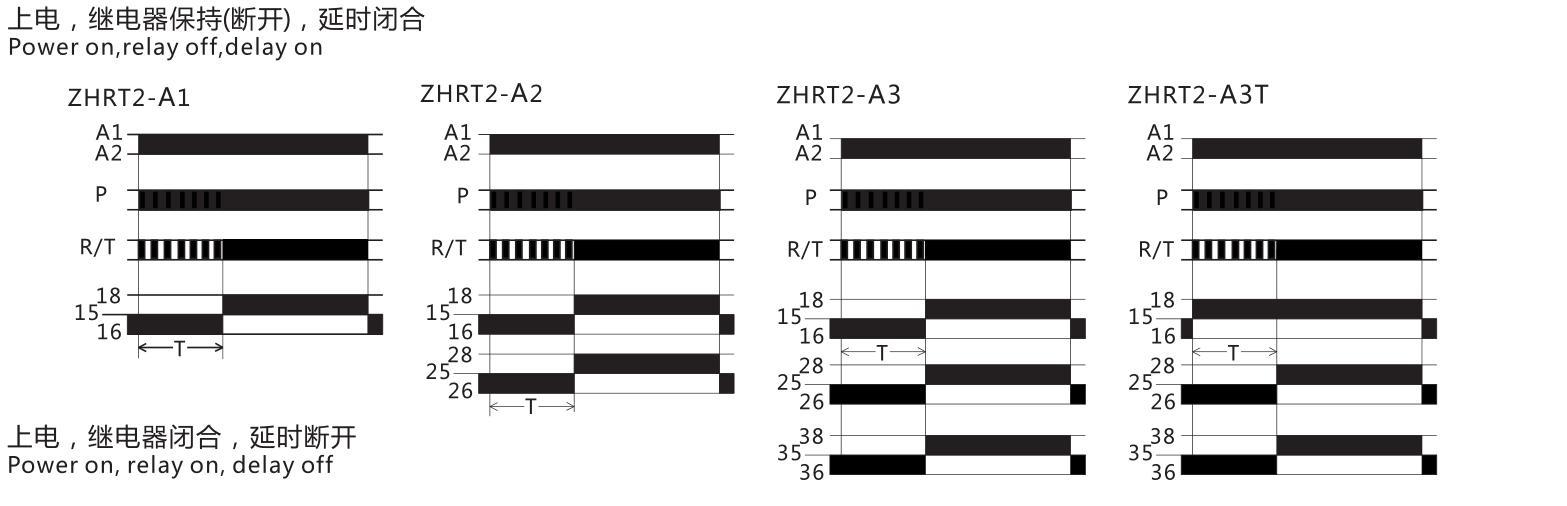

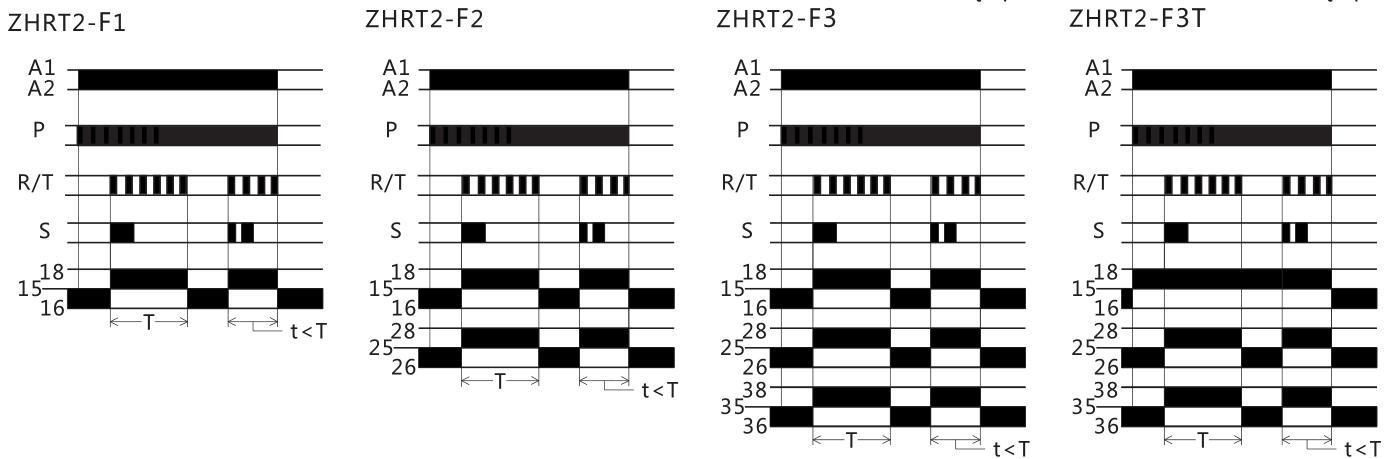

Function Diagram

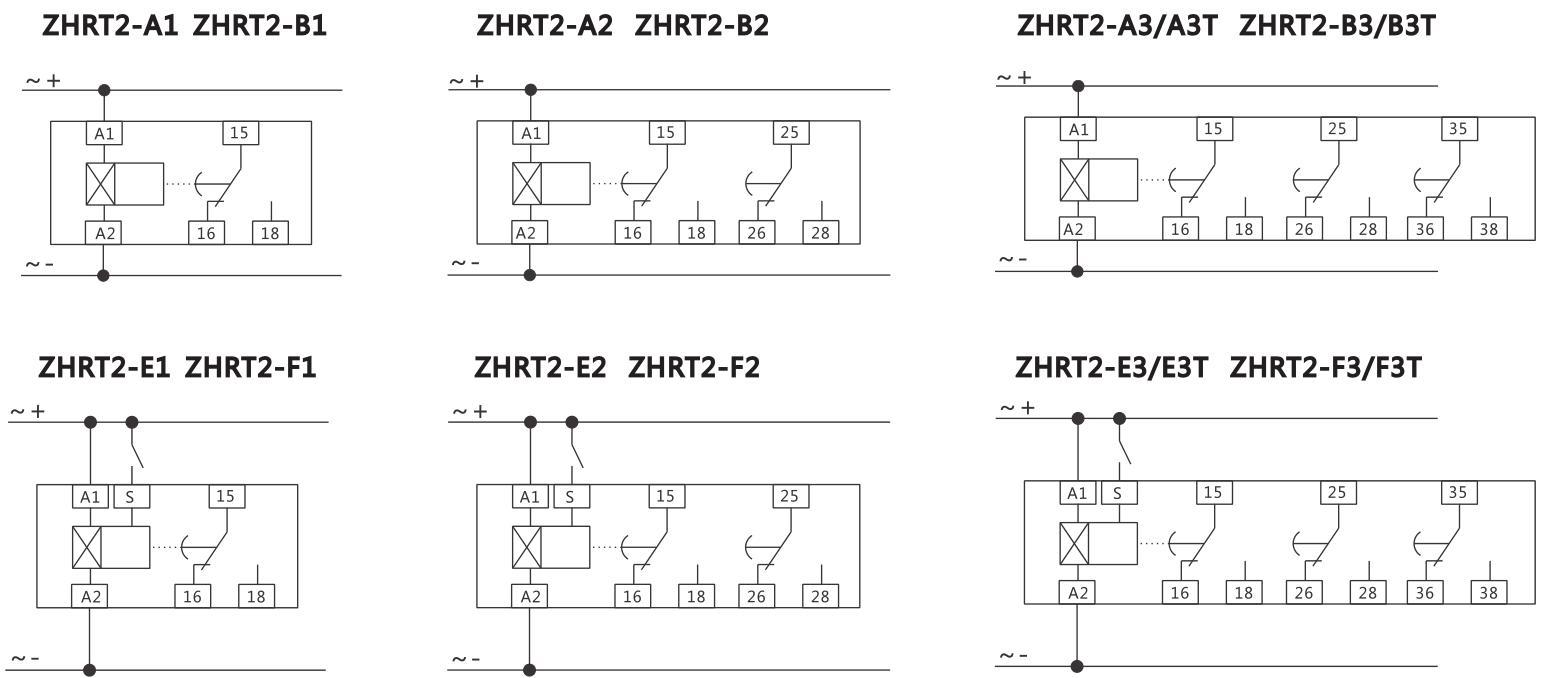

Wiring Diagram

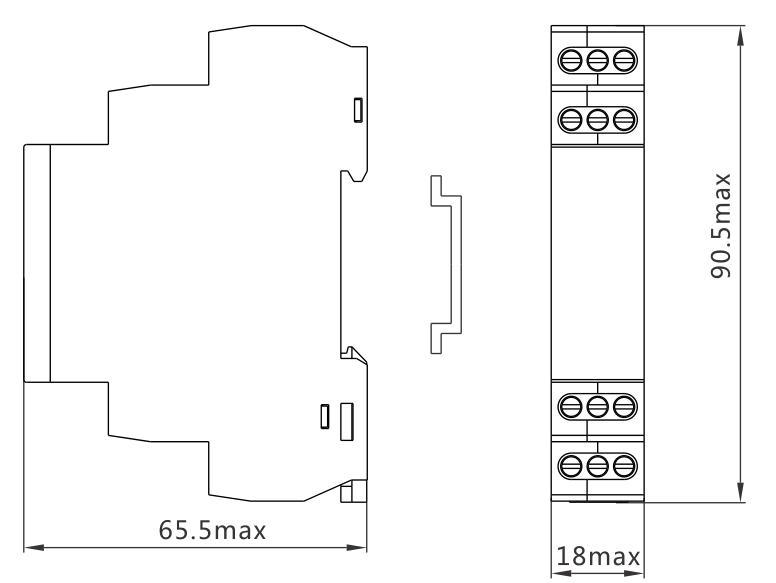

Dimensions
