Staircase time switch, electron-mechcanicsm

4 conductor with floor lighting connection

3 conductor without floor lighting (no longer permitted for new systems)


 No closed-circuit current consumption

Toggle switch for permanent light ON

Reliable due to synchronous motor drive

Simplest possible time setting and direct delay time readout on absolute scale

 Precision mechanics and therefore exact switching period

Low sensitivity to interference

Technical Data

Operating voltage

230V AC


50 Hz


1 modules

Installation type

Din rail

Stand-by consumption

0 W

Glow lamp load


Setting range time

1 – 7 min

Type of connection


3/4-way conductors


Secondary switching

After 30 s

Type of contact

NO contact

Opening width

> 3 mm

Switching output

Not potential-free (230 V)

Incandescent/halogen lamp load

2300 W

Fluorescent lamp load (conventional)lead-lag circuit

2300 VA

Fluorescent lamp load (conventional) parallel-corrected

1300 VA 70 uF

energy saving lamps

150 W

LED lamp

< 2 W = 30 W or > 2 W < 8 W = 90 W

Fluorescent lamp load (electronic ballast)

600 W

Fluorescent lamp load (conventional)series-corrected

2300 VA

Switching capacity

6 A (at 230 V AC, cos φ = 0.3), 16 A (at 230 V AC, cos φ = 1)

Switch for permanent light

Toggle switch

Housing and insulation material

High-temperature resistant, self-extinguishing

Ambient temperature

-10 °C … +50 °C

Protection class

II in accordance with EN 60 730-1

Type of protection

IP 20

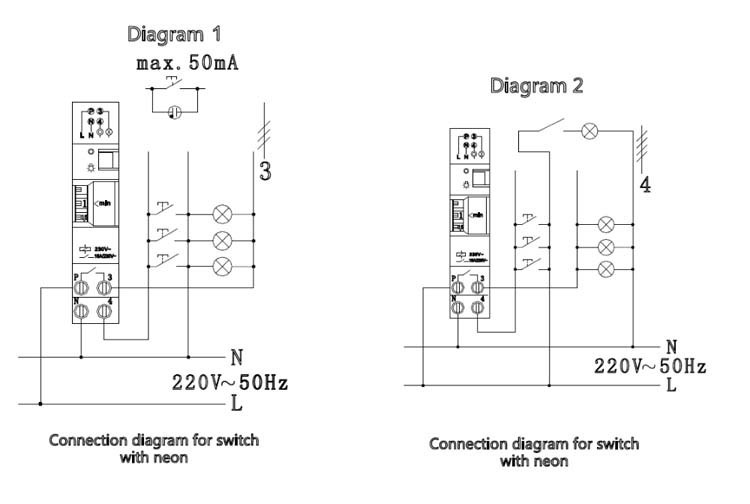

Connection Example

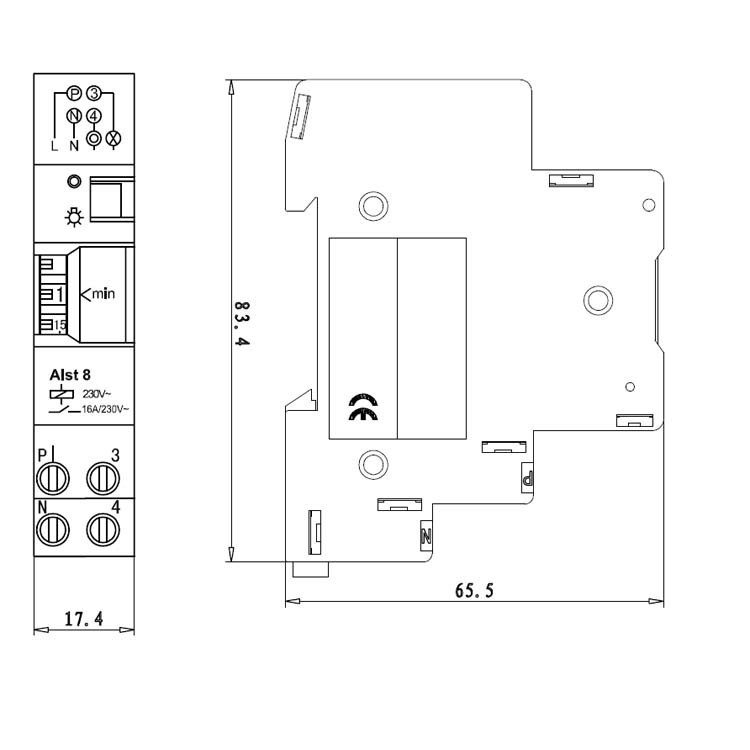

Scale Drawings
