JVB16 Best price CE certificate din rail type 230v ac power door electric bell transformer
- Model
- JVB16
Item specifics
- Rated voltage
- 8, 12, 24, 230V AC
- Rated frequency
- 50/60Hz
- Service mode
- intermittent
- Connection terminal
- pillar terminal with clamp
- Connection capacity
- rigid conductor 10mm²
- Installation
- On symmetrical DIN rail 35mm Panel mounting
- Terminal Connection Height
- H=17mm
Review
Description
Technical Data
|
l Rated voltage: 8, 12, 24, 230V AC |
|
l Rated frequency: 50/60Hz |
|
l Service mode: intermittent |
|
l Connection terminal: pillar terminal with clamp |
|
l Connection capacity: rigid conductor 10mm ² |
|
l Installation: |
|
l Terminal Connection Height: H=17mm |
Construction and Feature
Elegant appearance, compact size and easy installation
Low consumption
Product with rated current up to 24V AC to be powered by bell transformer JVB16.
Application
The electric bell is suitable for audible signaling for intermittent use only in domestic and commercial installations.

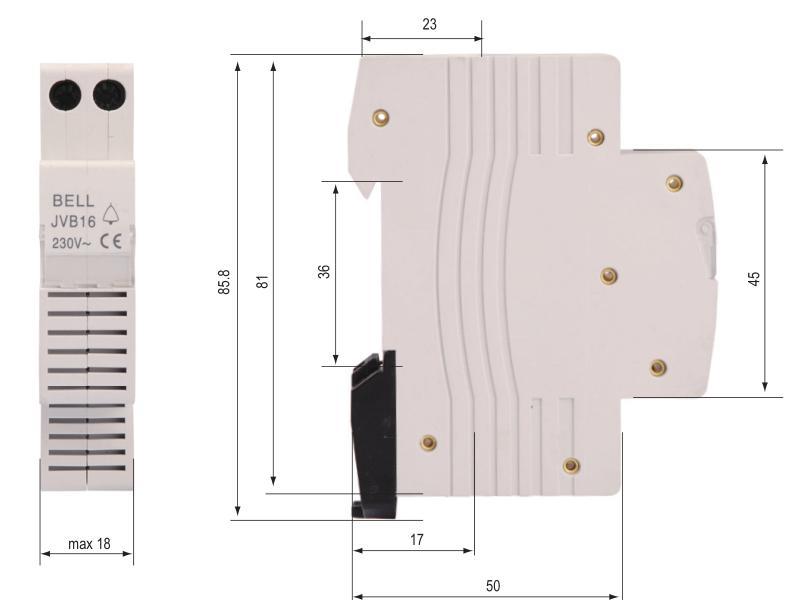

Overall & Installation Dimensions
