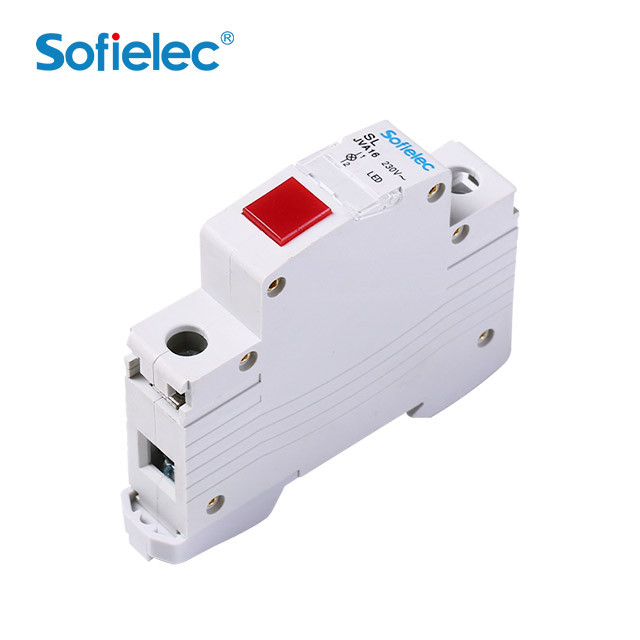

JVA16 Factory make red color modular neon indicator lamp
- Model
- JVA16
Item specifics
- Rated voltage
- 230V AC
- Rated frequency
- 50/60Hz
- Colour
- red, green, yellow
- Connection terminal
- pillar terminal with clamp
- Connection capacity
- rigid conductor 10mm²
- erminal Connection Height
- H=19mm
- Max power
- 0.6W
- lllumination
- LED
- Service duration
- 30,000 hours
- Installation
- On symmetrical DIN rail 35 mm Panel mounting
Review
Description
Technical Data
|
l Rated voltage: 230V AC |
|
l Rated frequency: 50/60Hz |
|
l Colour: red, green, yellow |
|
l Connection terminal: pillar terminal with clamp |
|
l Connection capacity: rigid conductor 10mm ² |
|
l Installation: |
|
l Terminal Connection Height: H=19mm |
l Max power: 0.6W |
l Illumination: LED |
l Service duration: 30,000 hours |
Construction and Feature
Low service duration, minimum power consumption
Compact design in modular size
Easy installation
Application
The Modular Signal Lamp is applicable to circuit with rated voltage 230V~ andfrequency 50/60Hz for visual indication and signaling.

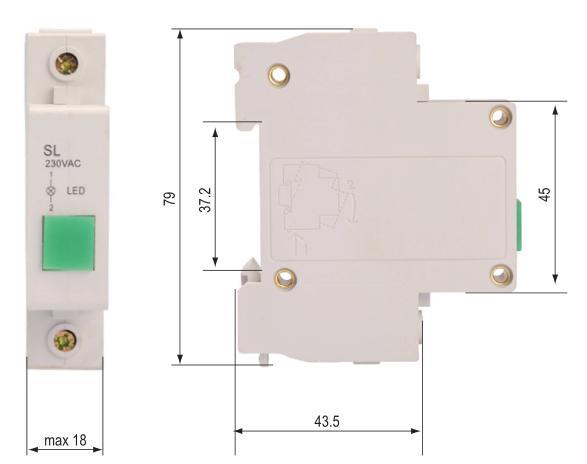

Overall & Installation Dimensions
