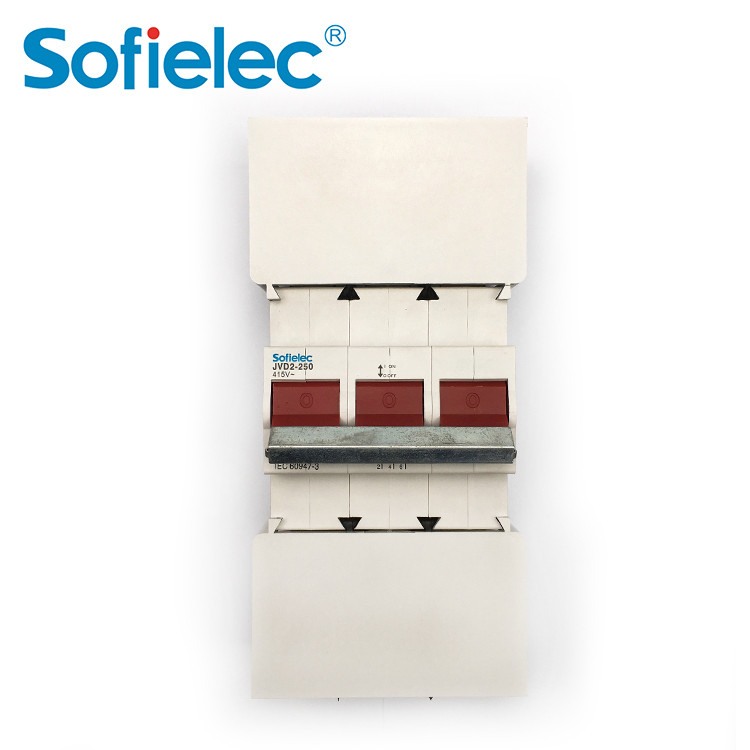

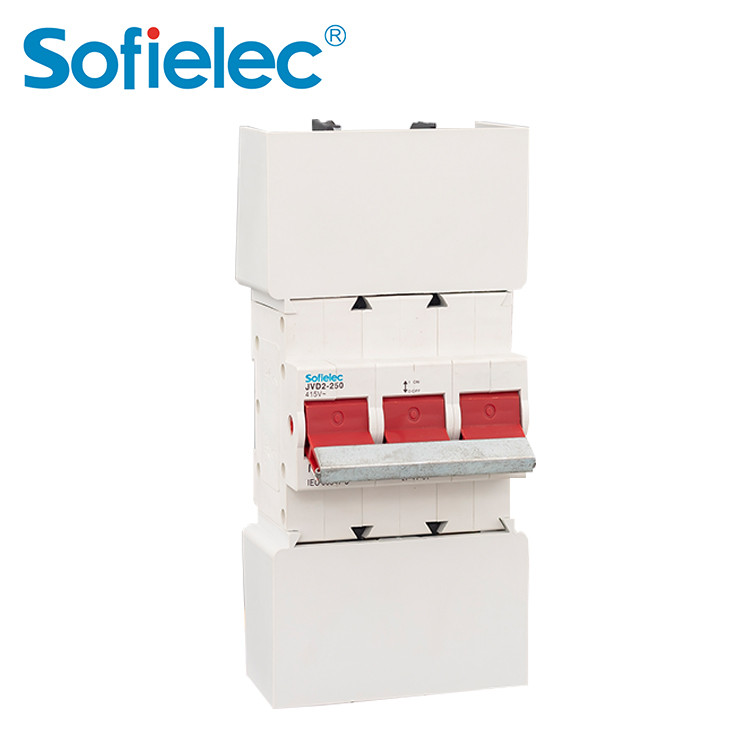

JVD2-250 3P 250A main switch isolator DIN rail isolator with terminal shields & phase separator, AU hot selling
Item specifics
- Pole No
- 1,2,3, 4
- Rated current(A)
- 125, 160, 250
- Rated voltage
- AC 230/400V
- Rated frequency
- 50/60Hz
- Rated short-circuit making capacity
- 3kA
- Rated withstand current
- 3kA within 1sec
- Electro-mechanical endurance
- 10000 cycles
- Connection capacity
- Rigid conductor 50mm² and up
- Connection terminal
- Extensional busbar
- Terminal Connection Height
- H=22mm
Review
Description
Technical Data
|
l Pole No.: 1, 2, 3, 4 |
|
l Rated current(A): 125, 160, 250 |
|
l Rated voltage: AC 230/400V |
|
l Rated frequency: 50/60Hz |
|
l Rated short-circuit making capacity: 3kA |
|
l Rated withstand current: 1.8kA within 1sec |
|
l Electro-mechanical endurance: 10000 cycles |
l Connection capacity: Rigid conductor 50mm 2 and up |
l Connection terminal: Extensional busbar |
l Installation:On symmetrical din rail 35.5mm |
l Terminal Connection Height: H=22mm |
Construction and Feature
Capable of switch electric circuit with load
Provide function of isolation
Used as main switch for household and similar installation

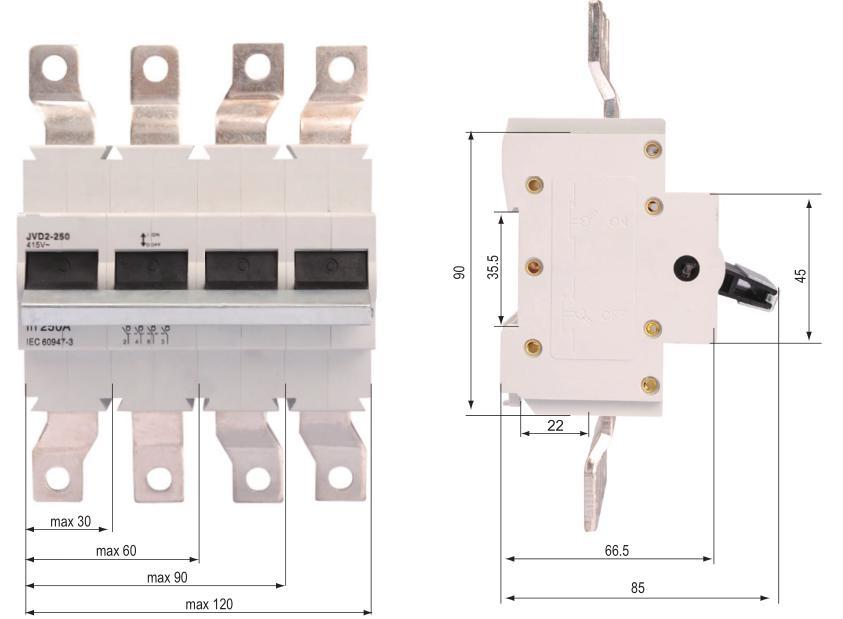

Overall & Installation Dimensions

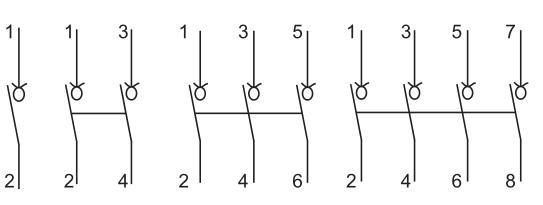

Wiring Diagram
