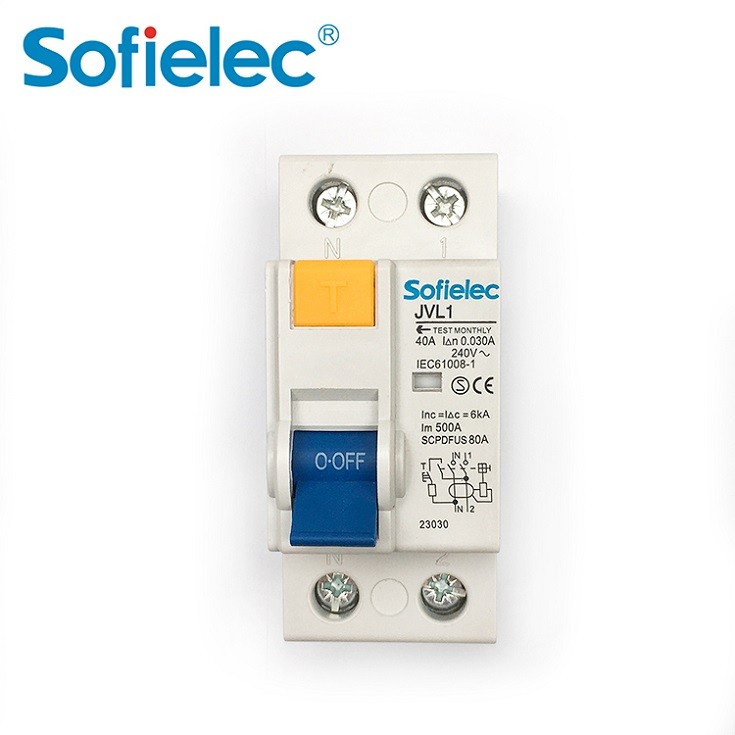

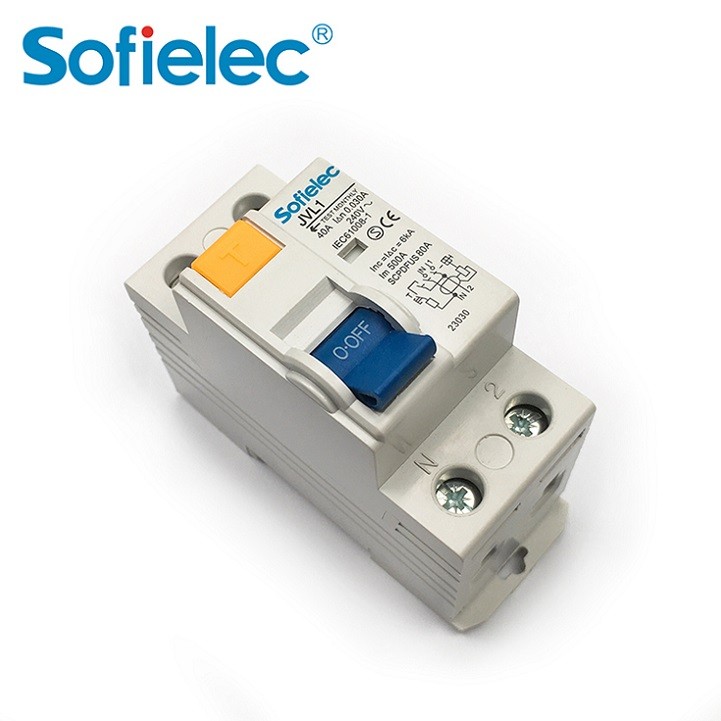

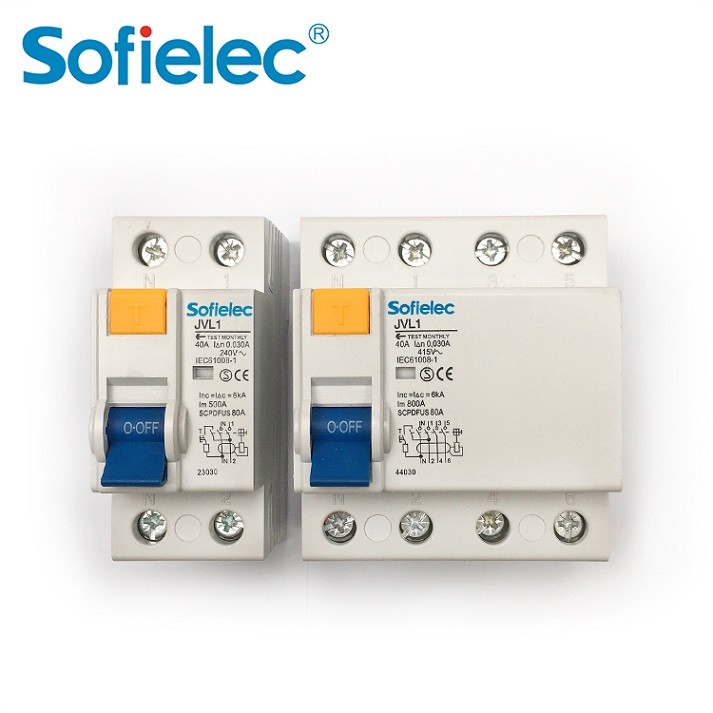

6kA JVL1 High quality 2 pole 40a circuit breaker 50ma elcb
Item specifics
- Mode
- eltro-magnet type, elecronic type
- Residual current charaterstis
- A, AC
- Pole No
- 2, 4
- Rated making and breaking capacity
- 500(ln=25A.40A) or 10InA(In=63A,80A,100 125A)
- Rated current(A)
- 25, 40, 63
- Rated voltage
- AC 230(240)/400(415)
- Rated frequency
- 50/60Hz
- Rated conditional short-circuit current Inc
- 10kA
- Connection capacity
- Rigid conductor 25mm
- Terminal Connection Height
- 21mm
Review
Description
|
l Mode: electro-magnetic type, electronic type |
|
l Residual current characteristics: A, AC |
|
l Pole No.: 2, 4 |
|
l Rated making and breaking capacity: 500(In=25A,32,40A),630(In=63A) |
|
l Rated current(A): 25, 40, 63 |
|
l Rated voltage: AC 230(240)/400(415) |
|
l Rated frequency: 50/60Hz |
l Rated residual operating current I△n(A): 0.03, 0.1, 0.3, 0.5 |
l Rated residual non operating current I△no: 0.5I△n |
l Rated conditional short-circuit current Inc: 10kA |
|
l Rated conditional residual short-circuit Current I△c: 10kA |
|
l Tripping duration: instantaneous tripping≤0.3s(0.1) |
|
l Residual tripping current range: 0.5I△n~I△n |
|
l Terminal Connection Height: 21mm |
|
l Electro-mechanical endurance: 4000 cycles |
|
l Connection capacity: Rigid conductor 25mm ² |
|
l Connection terminal: Screw terminal |
l Pillar terminal with clamp |
l Fastening torque: 2.0Nm |
l Installation: On symmetrical DIN rail 35.5mm Panel mounting |
l Protection class:IP20 |

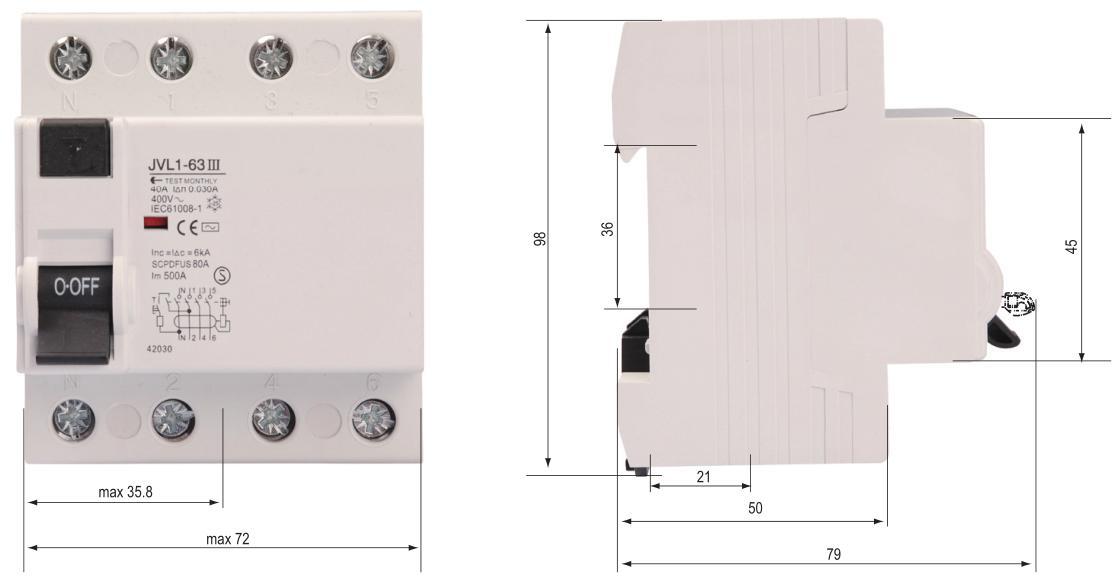

Construction and Feature
Fine and unique appearance
Short-circuit and overload dual-protection performance
High-breaking capacity (10KA) that is leading among the world similar products
Unique label, transparent window
Convenient and reliable installation mode

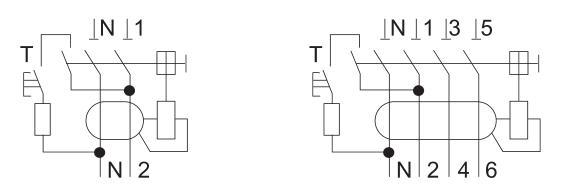

Wiring Diagram
