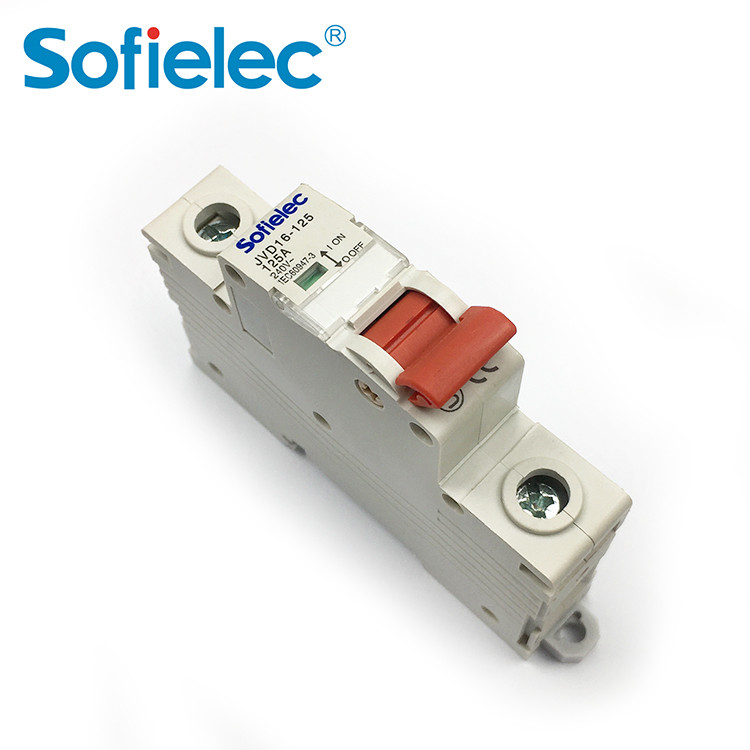

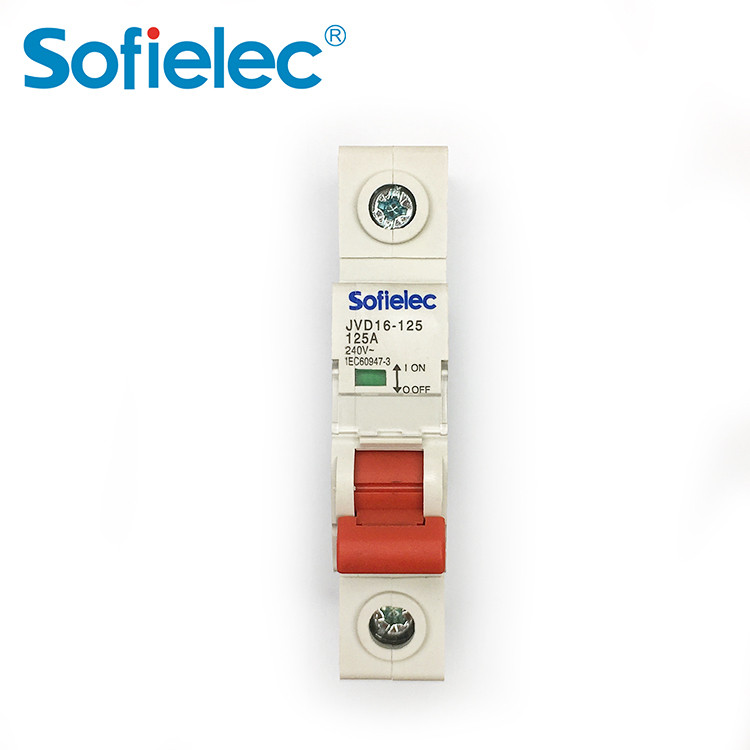

JVD16-125 Wholesale price 125a disconnect switch DIN rail isolator
Item specifics
- Pole No
- 1,2,3, 4
- Rated current(A)
- 63, 80, 100, 125
- Rated voltage
- AC 230/400V
- Rated frequency
- 50/60Hz
- Rated short-circuit making capacity
- 6kA
- Rated withstand current
- 2kA within 1sec
- Electro-mechanical endurance
- 10000 cycles
- Connection terminal
- Screw terminal
- Installation
- On symmetrical din rail 35mmo

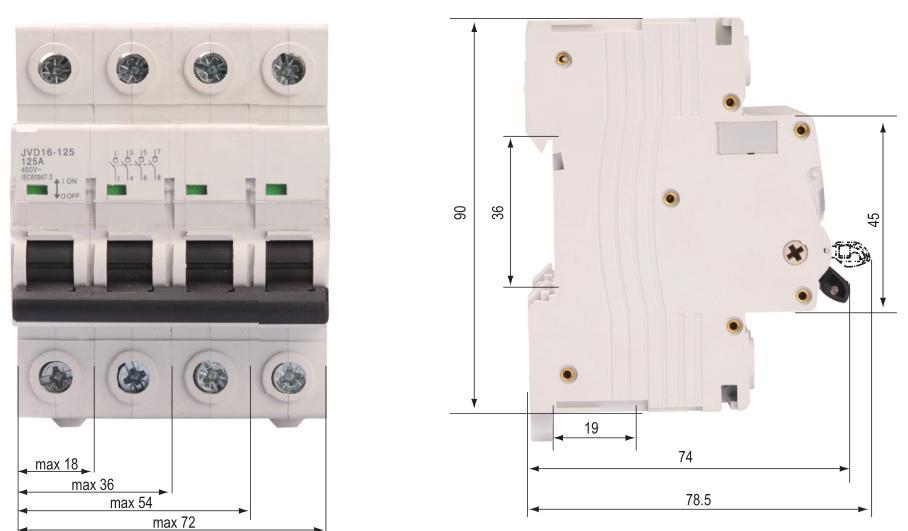

- Terminal Connection Height
- H=19mm
Review
Description
Technical Data
|

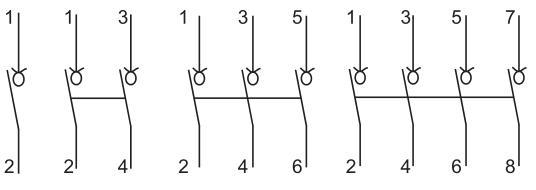

l Pole No.: 1, 2, 3, 4 |
|
l Rated current(A): 63, 80, 100, 125 |
|
l Rated voltage: AC 230/400V |
|
l Rated frequency: 50/60Hz |
|
l Rated short-circuit making capacity: 6kA |
|
l Rated withstand current: 2kA within 1sec |
|
l Electro-mechanical endurance: 10000 cycles |
l Connection capacity: Rigid conductor 35mm ² |
l Connection terminal:Screw terminal |
l Installation:n symmetrical din rail 35mm |
l Terminal Connection Height: H=19mm |
Construction and Feature
Capable of switch electric circuit with load
Adaptable to padlock device
Contact position indication
Capable of quickly releasing stored energy operation
Highlighted of high making and breaking capacity
High short-circuit current withstand capacity
Used as main switch for household and similar installation
