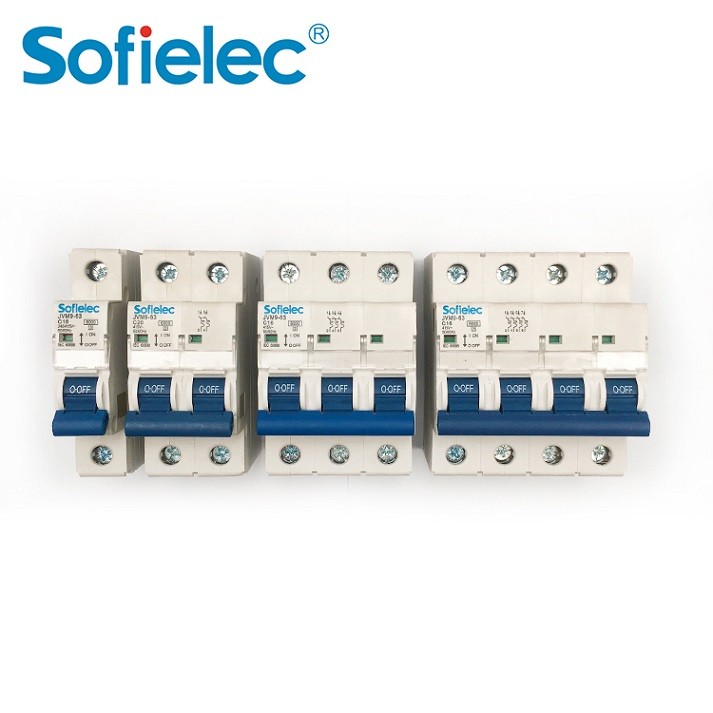

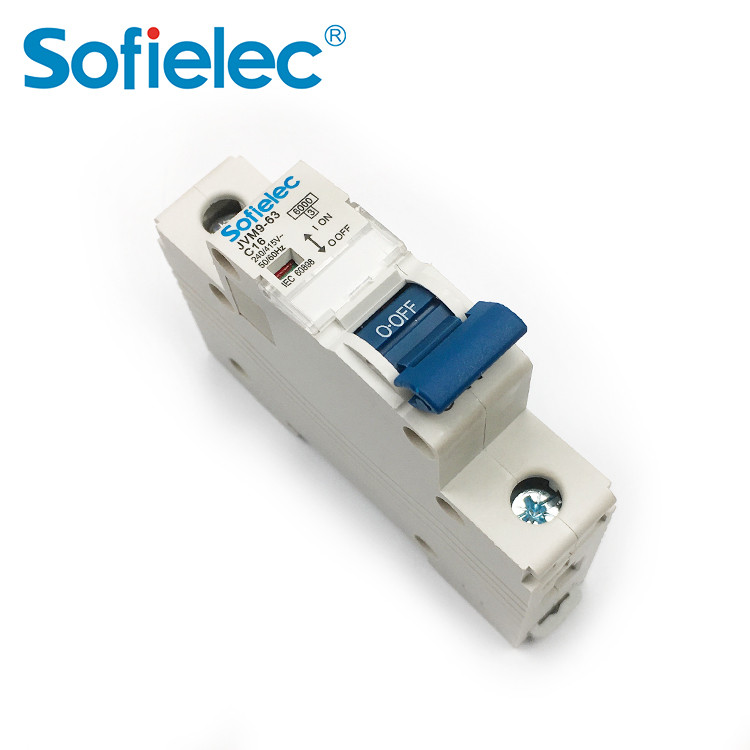

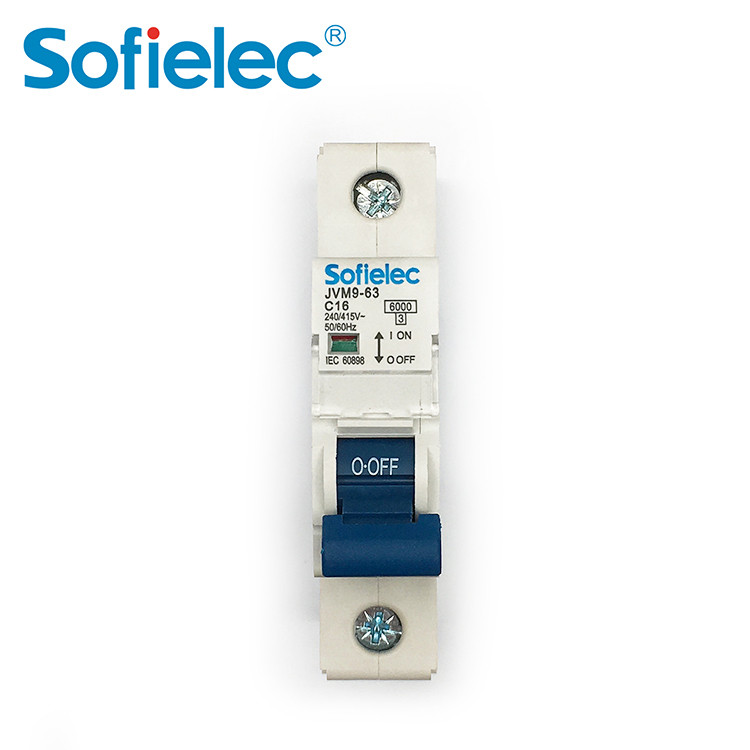

6kA JVM9-63 CE 63A 4p MCB IEC60898 miniature circuit breaker
Item specifics
- Pole No
- 1, 1P+N, 2, 3, 3P+N, 4
- Rated voltage
- AC 230/400V
- Rated current (A)
- 1,2,3,4,6, 10, 13, 16, 20, 25, 32, 40, 50, 63

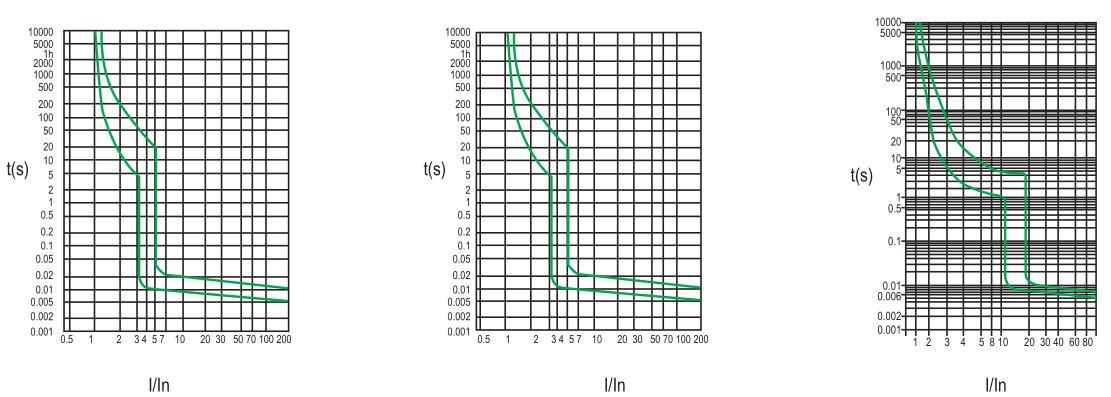

- Tripping curve
- B,C,D
- Energy limiting class
- 3
- Rated frequency
- 50/60Hz
- Rated impulse wihstand voltage
- 6.2kV
- High sho-ciruit breaking capacity (lcn)
- 10KA
- Rated serie sh-ircut breaking cpait(cs)
- 7.5KA
- Eletr-mechanical endurance
- 20000
Review
Description
Technical Data
|
● Pole No.: 1P,2P,3P,4P |
● Rated voltage: AC 230/400V |
● Rated Current: 1,2,3,4,6,10,13,16,20,25,32,40,50,63A |
● Tripping curve: B, C, D |
● High short-circuit breaking capacity: 6kA |
● Rated service short-circuit capacity(lcs): 6kA |
|
● Rated frequency: 50/60Hz |
|
● Electro-mechanical endurance: 10000 |
|
● Connection terminal: Pillar terminal with clamp |
|
● Connection capacity: Rigid conductor up to 10mm² |
|
● Fastening torque: 1.2Nm |
|
● Installation: On symmetrical DIN rail 35.5mm Panel mounting |
● Terminal Connection Height: H=21 mm |
Construction and Feature
JVM9-63 mcb Protection against overload and short circuit,6KA high short circuit , beautiful appearance with transparent window. The rated working voltage 24/415V. Completely rated current from 1 amp to 63 amp. Widely use for houses,offices,commercial complex,motor system(D curve) and industrial installation-for switching ,control,protection and regulation of electrical circuits. Also in switchgear panels,railway and marine application.
1. Fine and unique appearance
2. Short-circuit and overload dual-protection performance
3. High-breaking capacity (6KA) that is leading among the world similar products
4. Unique label, transparent window
5. Convenient and reliable installation mode
