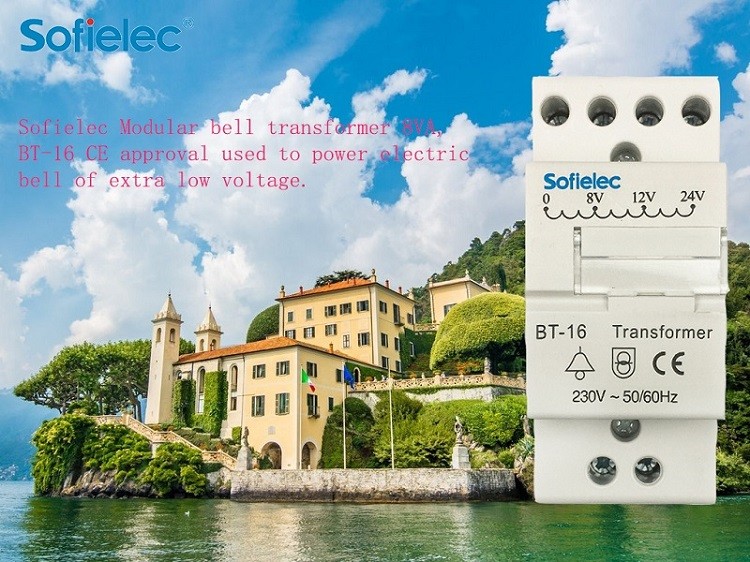

Sofielec Modular bell transformer 8VA, BT-16 CE approval used to power electric bell of extra low voltage.

Sofielec Modular bell transformer 8VA, BT-16 CE approval used to power electric bell of extra low voltage.

Summary

Applicable to circuit with rated voltage 230V~ and rated frequency 50/60Hz, used to

power electric bell of extra low voltage.

Sofielec Modular bell transformer 8VA, BT-16 CE approval used to power electric bell of extra low voltage.

Application

Applicable to circuit with rated voltage 230V~ and rated frequency 50/60Hz, used to

power electric bell of extra low voltage.

Construction and Feature

Safe electrical separation between primary and secondary circuit

Provides extra low voltage up to 24V

Low temperature rising

High output accuracy

Extra overload capacity up to 25% within 24 hours

Technical Data

Rated input voltage: 230V AC

Rated output voltage:

BT16: 8, 12, 24V

BT8: 4, 6, 8, 12, 16, 24V

Rated frequency: 50/60Hz

Rated power output: 8VA

Consumption: 1.15W

Service period: continuous operating

Pollution class: 2

Connection terminals: pillar terminal with clamp

Connection capacity: rigid conductor 10mm 2

Installation:

On symmetrical DIN rail 35mm

Panel mounting

Terminal Connection Height: H=15.5mm

Overall & Installation Dimensions
