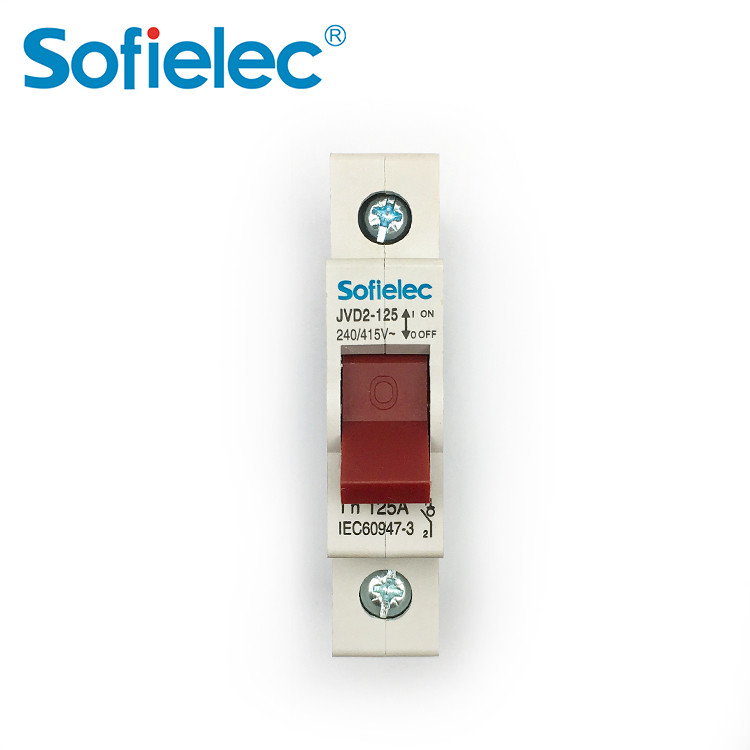

Sofielec economic main switch 1P 2P 3P 4P isolator rated at 125A JVD2-125 CE certificate, AU/UK hot selling

Construction and Feature

Capable of switch electric circuit with load

Provide function of isolation

Used as main switch for household and similar installation

Technical Data

Pole No.: 1, 2, 3, 4

Rated current(A): 16, 25, 40, 63, 80, 100, 125

Rated voltage: AC 230/400V

Rated frequency: 50/60Hz

Rated short-circuit making capacity: 3kA

Rated withstand current: 1.8kA within 1sec

Electro-mechanical endurance: 10000 cycles

Connection capacity: Rigid conductor 35mm 2

Connection terminal: Pillar terminal with clamp

Installation:

On symmetrical din rail 35.5mm

Panel mounting

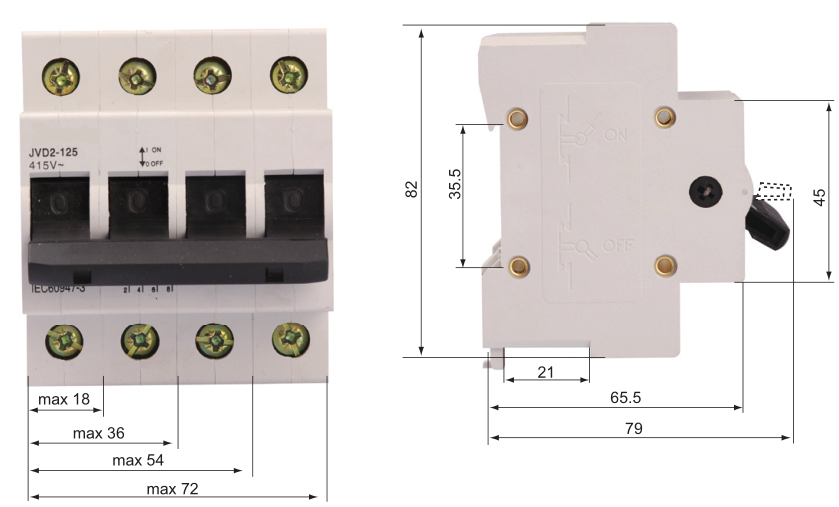

Terminal Connection Height: H=21mm

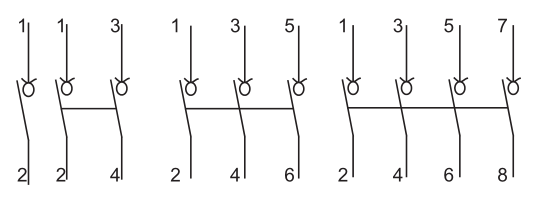

Wiring Diagram
