Sofielec Top sale starJVM8-63 6kA MCB factory price, fine and unique appearance advanced design
- Share
- Issue Time
- 2019/12/04
Summary
Fine and unique appearance,advanced design
Short-circuit and overload dual-protection performance
High-breaking capacity (6KA ) that is leading among the world similar products
Unique labels,Contact position indication window
Convenient and reliable installation

Construction and Feature
■ Fine and unique appearance,advanced design
■ Short-circuit and overload dual-protection performance
■ High-breaking capacity (6KA ) that is leading among the world similar products
■ Unique labels,Contact position indication window
■ Convenient and reliable installation
Technical Data
■ Model:JVM8-63

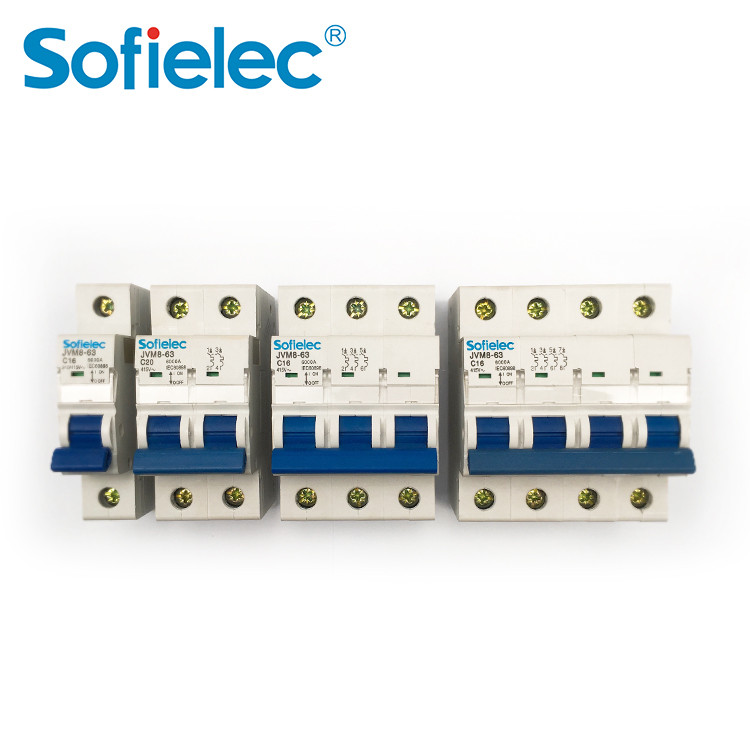

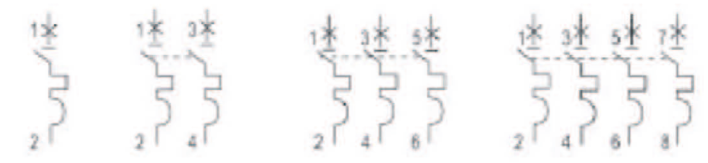

■ Pole No.;1P. 2P. 3P, 4P
■ Rated current(A):6. 10. 16. 20, 25, 32, 40. 50, 63
■ Rated working voltage: 240/415V
■ Rated Frequency: 50/60Hz
■ Rated insulation voltage: 500V
■ Rated short-circuit capacity:6000A

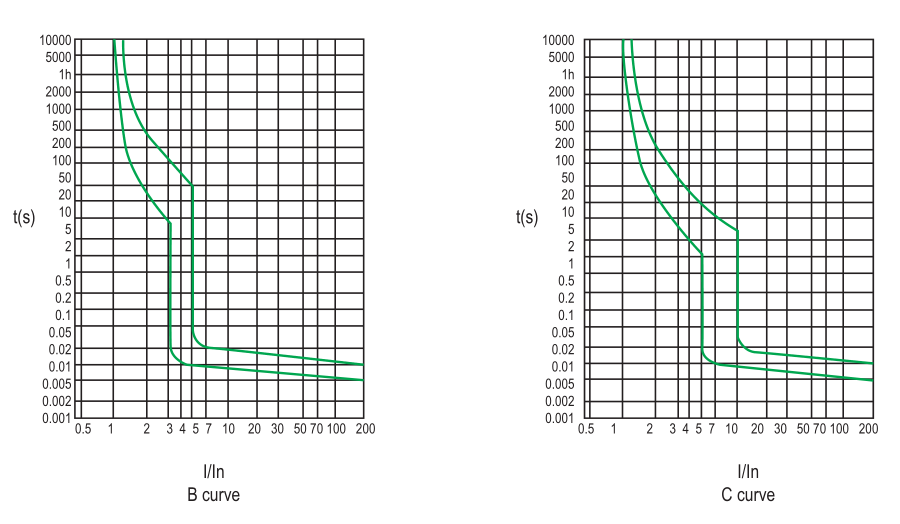

■ Instantaneous tripping current:5ln(B type)10ln(C type)20ln(D type)
■ Instantaneous non-tripping current:3ln(B type)5ln(C type)10ln(D type)
■ Mechanical life: 15000 times
■ Degree of protection: IP20
■ Wiring connection mode: upward line
■ Connection conductor: 1~16mm2
■ Wiring Height:21.5mm

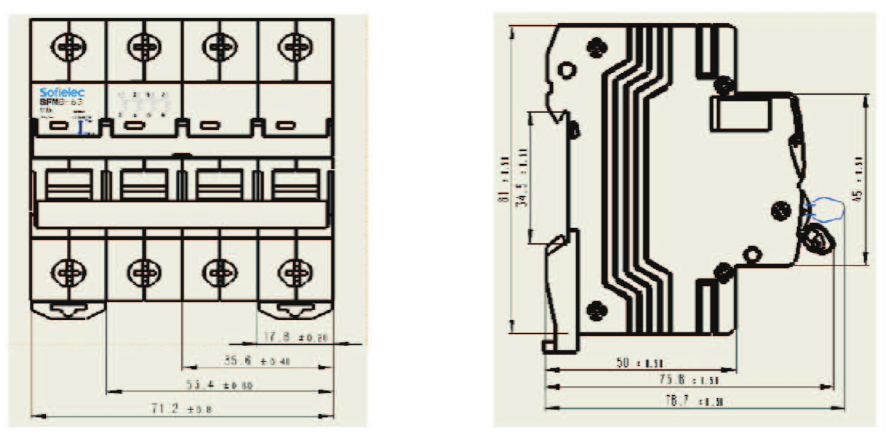

Overall &installation Dimensions
