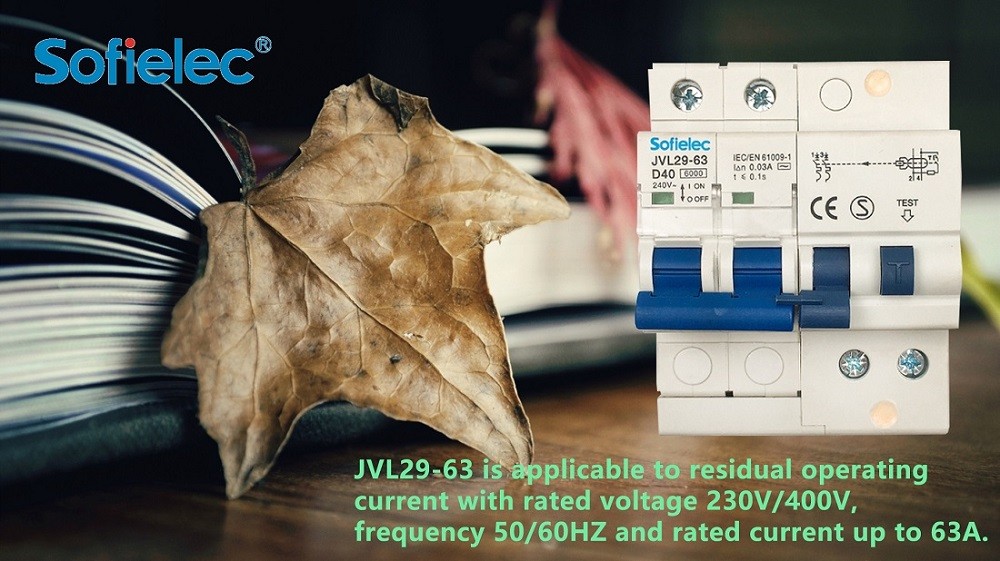

JVL29-63 is applicable to residual operating current with rated voltage 230V/400V,frequency 50/60HZ and rated current up to 63A.

Application

JVL29-63 is applicable to residual operating current with rated voltage

230V/400V,frequency 50/60HZ and rated current up to 63A. It is used to perform the

human electricity shock protection as well as over current protection and short circuit

protection for line equipment in building or similar locations, it also can provide the

protection against the fire danger caused by the fault current that is resulted from the

electric equipment damage.

The circuit breaker is applicable for kinds of fields such as the industry, commerce, high rise building, civil building, etc.

Technical Data

Pole No.: 1P+N, 2P, 3P, 3P+N, 4P

Residual current characteristics: AC, A

Rated current (A): 1, 2, 3, 4, 5, 6, 10, 16, 20, 25, 32, 40, 50, 63

Tripping curve: B, C, D

Rated short-circuit capacity: 6kA

Rated voltage: 230/400V AC

Rated frequency: 50/60Hz

Rated residual operating current(A): 0.03, 0.1, 0.3

Tripping duration: instantaneous≤0.1s

Electro-mechanical endurance: 4000 cycles

Terminal Connection Height: H1=19mm, H2=23mm

Overall & Installation Dimensions
