Sofielec 6kA Main switch isolator 63A, JVD16-63 original design patent protection CB,SEMKO,CE certificate
- Share
- Issue Time
- 2019/08/28
Summary
Sofielec 6kA Main switch isolator 63A, JVD16-63 original design patent protection CB,SEMKO,CE certificate
Capable of switch electric circuit with load
Adaptable to padlock device
Contact position indication
Capable of quickly releasing stored energy operation
Highlighted of high making and breaking capacity
High short-circuit current withstand capacity
Used as main switch for household and similar installation
Construction and Feature
Capable of switch electric circuit with load
Adaptable to padlock device
Contact position indication
Capable of quickly releasing stored energy operation
Highlighted of high making and breaking capacity
High short-circuit current withstand capacity
Used as main switch for household and similar installation
Technical Data

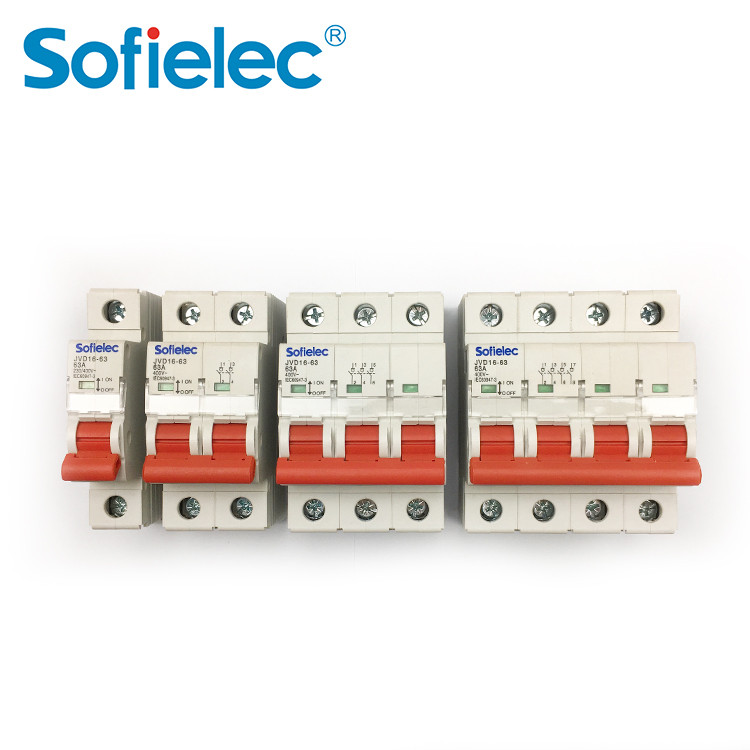

Pole No.: 1, 2, 3, 4
Rated current(A): 16, 25, 40, 63
Rated voltage: AC 230/400V
Rated frequency: 50/60Hz
Rated short-circuit making capacity: 6kA
Rated withstand current: 1kA within 1sec
Electro-mechanical endurance: 10000 cycles
Connection capacity: Rigid conductor 25mm 2
Connection terminal:
Screw terminal
Pillar terminal with clamp
Installation:
On symmetrical din rail 35mm
Panel mounting
Terminal Connection Height: H=19mm

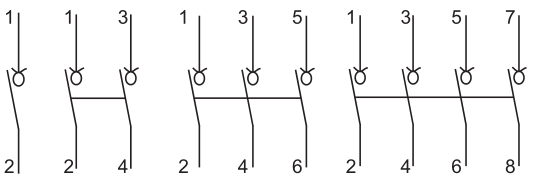

Wiring Diagram

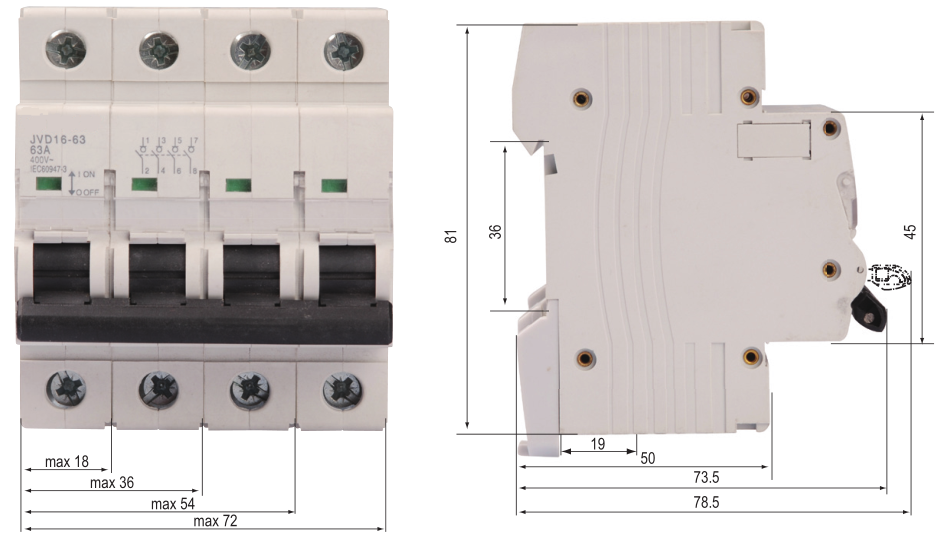

Overall & Installation Dimensions
