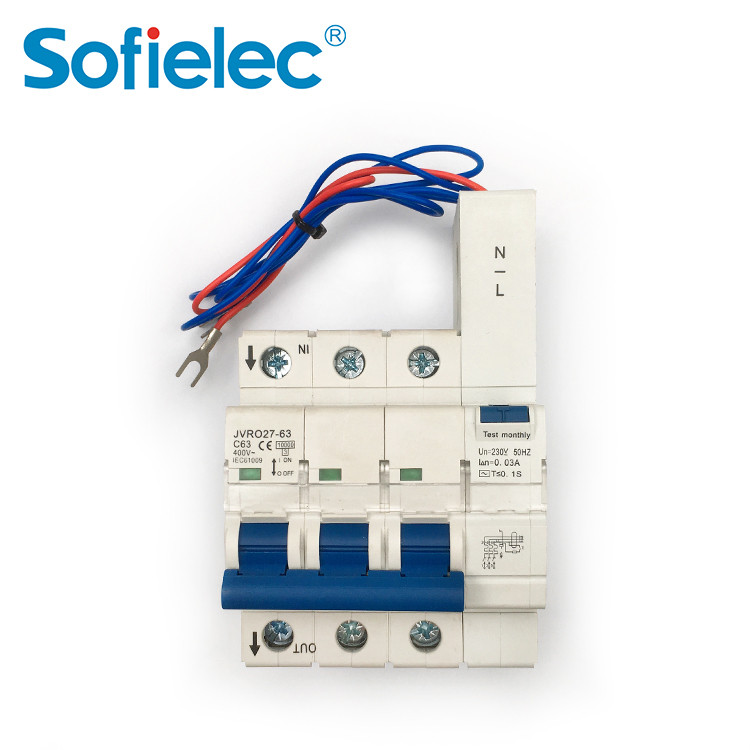

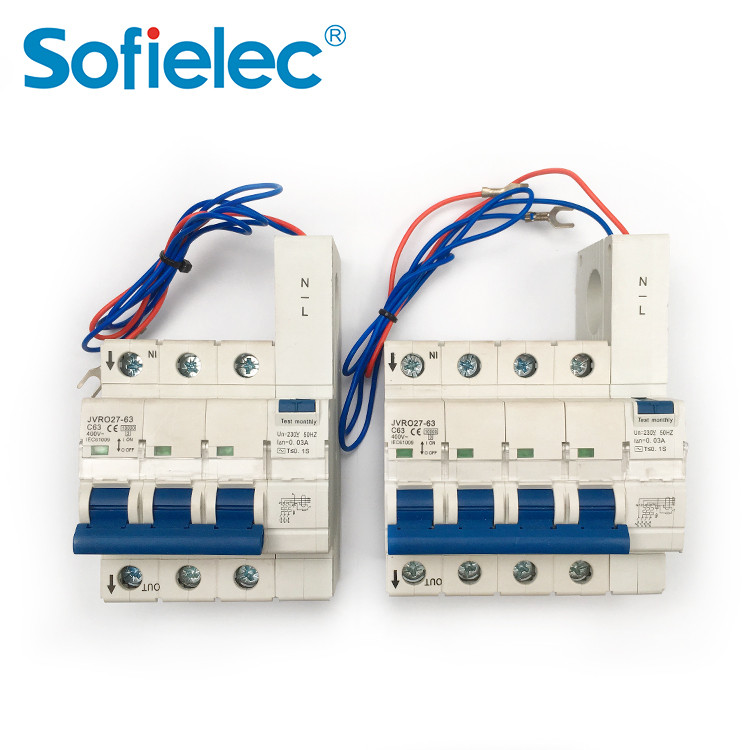

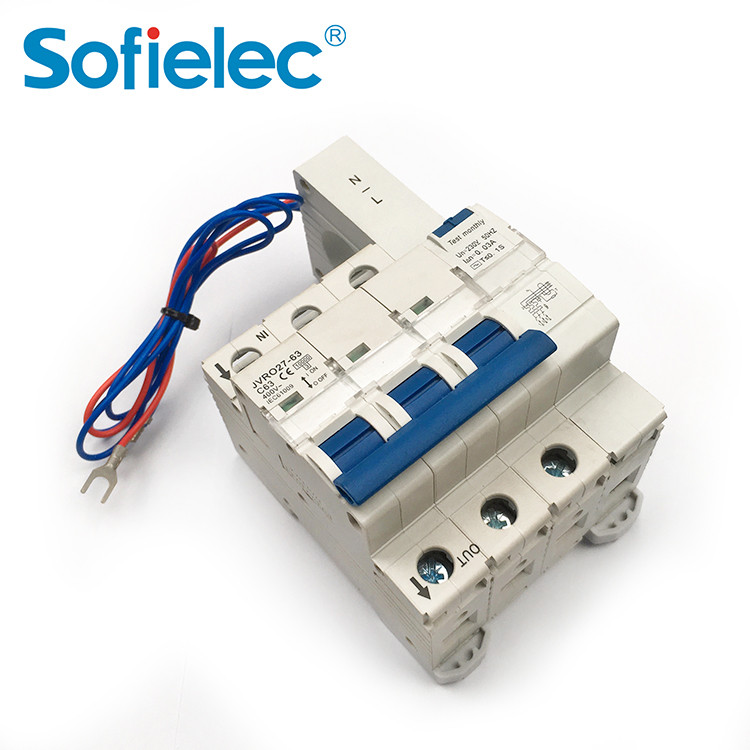

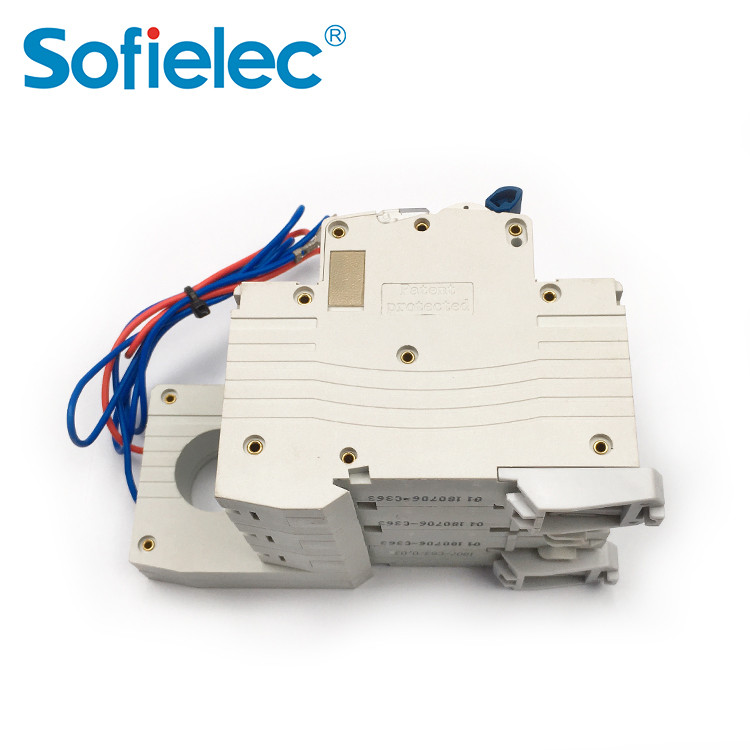

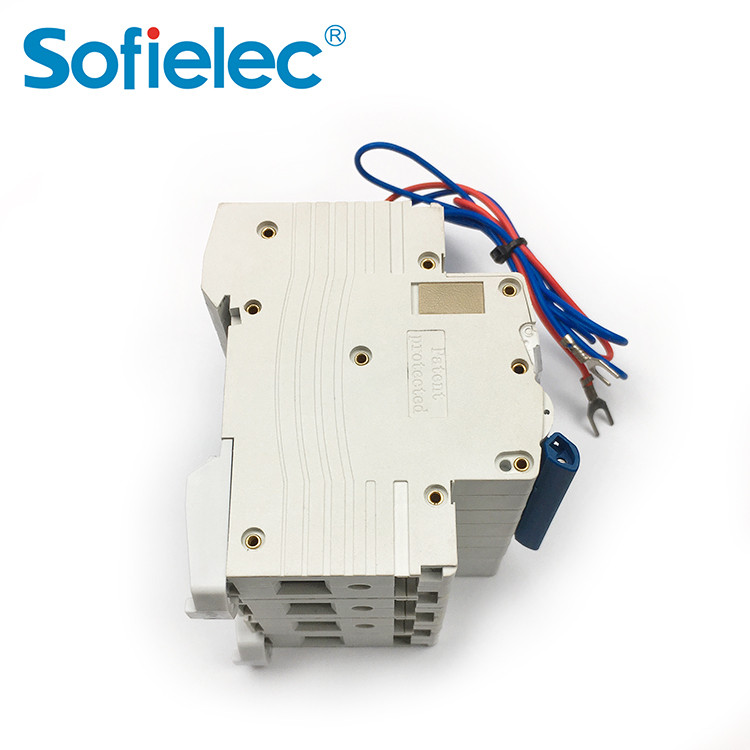

Sofielec CB approved JVRO27-63 electronic type 10kA, free combination up to 4P 63A, 3 phase RCBO, hot selling Australia

Sofielec CB approved JVRO27-63 electronic type 10kA, free combination up to 4P 63A, 3 phase RCBO, hot selling Australia

Summary

Operating machanism adopt double contact with DPN form, N pole opening first, then breaking.

Leakage protecion adopt electronic type integrated circuit, Contact ON/OFF state display.

Trigger has middle-position function and a clamshell to put tags in and characteristic

stripes on both sides.

Provides protection against earth fault/leakage current, short-circuit, overload, and

function of isolation.

Construction and Feature

Operating machanism adopt double contact with DPN form, N pole opening first, then breaking.

Leakage protecion adopt electronic type integrated circuit, Contact ON/OFF state display.

Trigger has middle-position function and a clamshell to put tags in and characteristic

stripes on both sides.

Provides protection against earth fault/leakage current, short-circuit, overload, and

function of isolation.

Technical Data

● Residual current characteristics: AC, A

● Pole No.: 1P+N Tripping curve: B, C

● Rated short-circuit breaking capacity: 4.5kA

● Rated current (A): 6, 10, 16, 20, 25, 32

● Rated voltage: 240V

● Rated frequency: 50Hz

● Rated residual operating current(A): 0.03

● Tripping duration: instantaneous≤0.1s

● Electro-mechanical endurance: 4000 cycles

● Diameter of screw d(mm): M4

● Degree of protection: IP20

● Fastening torque: 1.2N.m

● On symmetrical DIN rail 35mm

● Terminal Connection Height: H1= 9mm H2=22mm

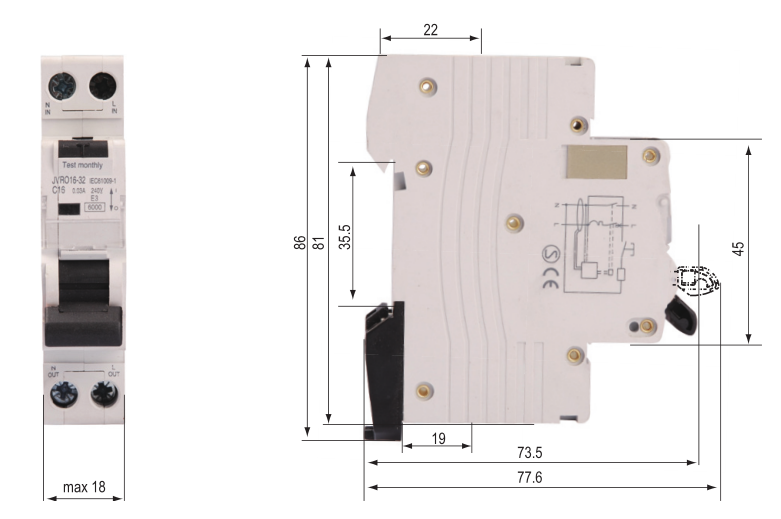

Overall & Installation Dimensions

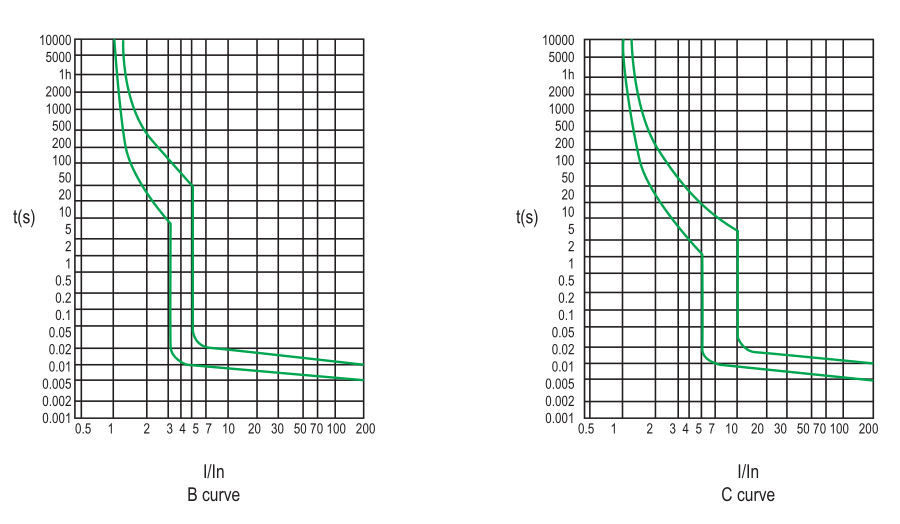

Characteristic Curve

Wiring Diagram
